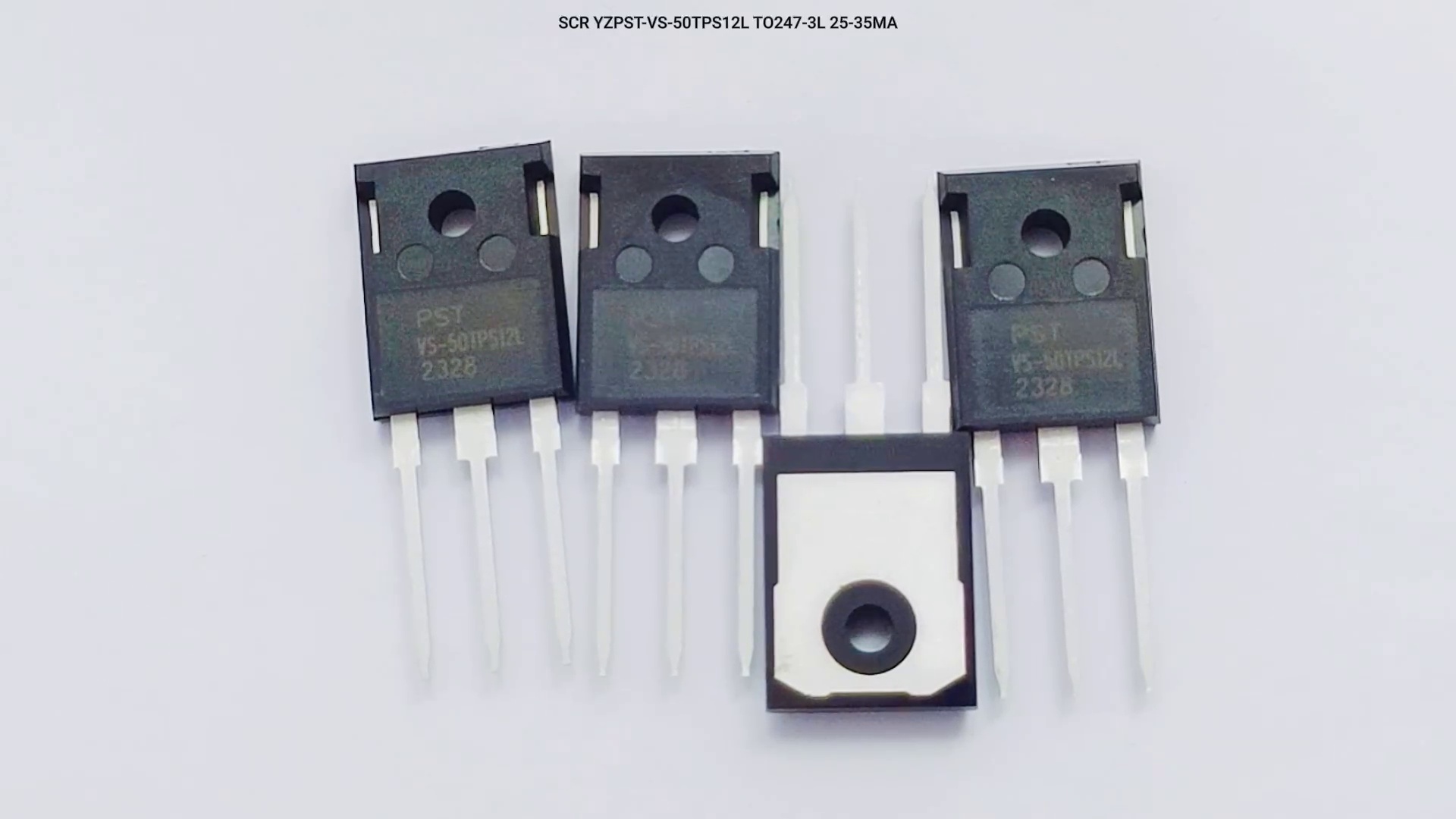

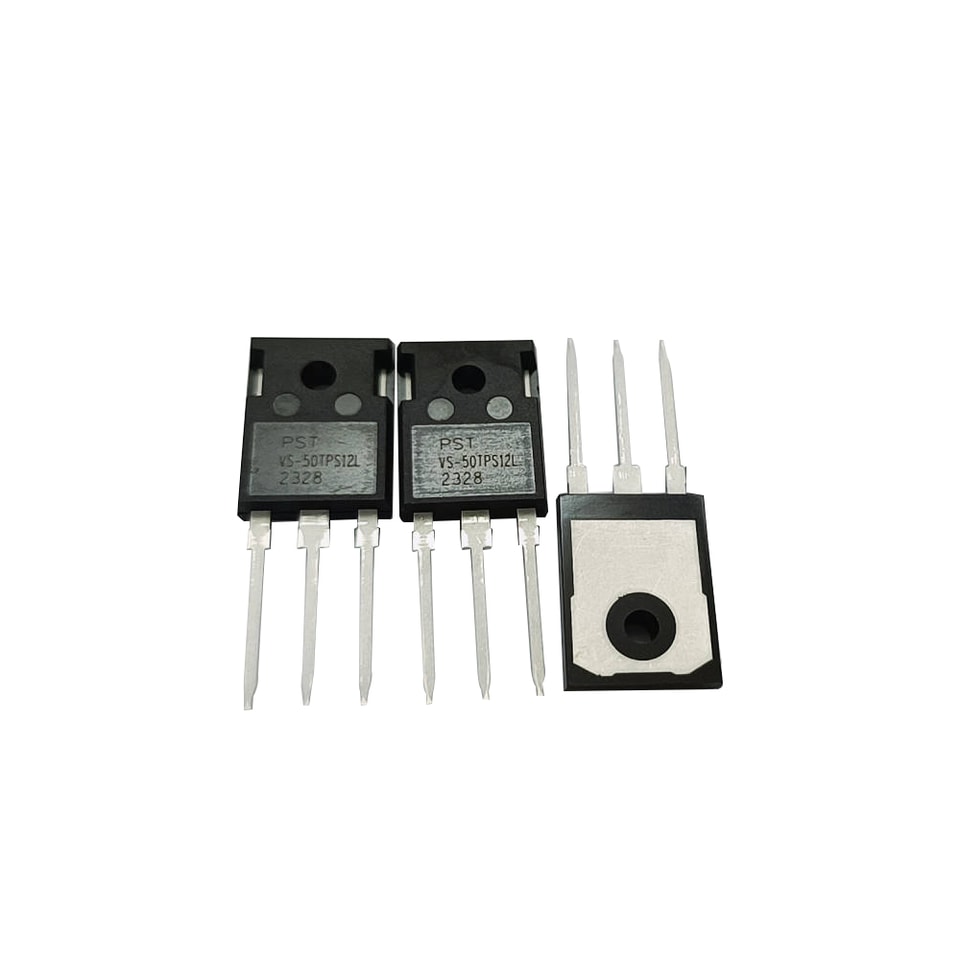

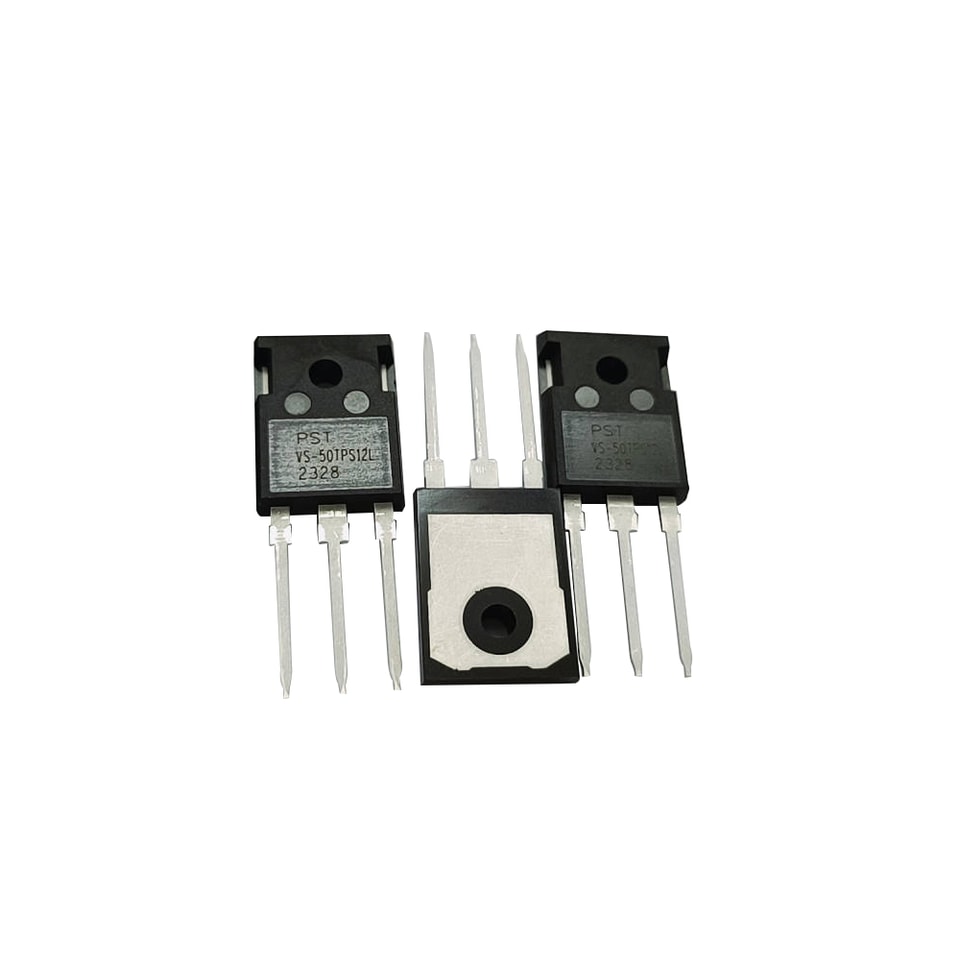

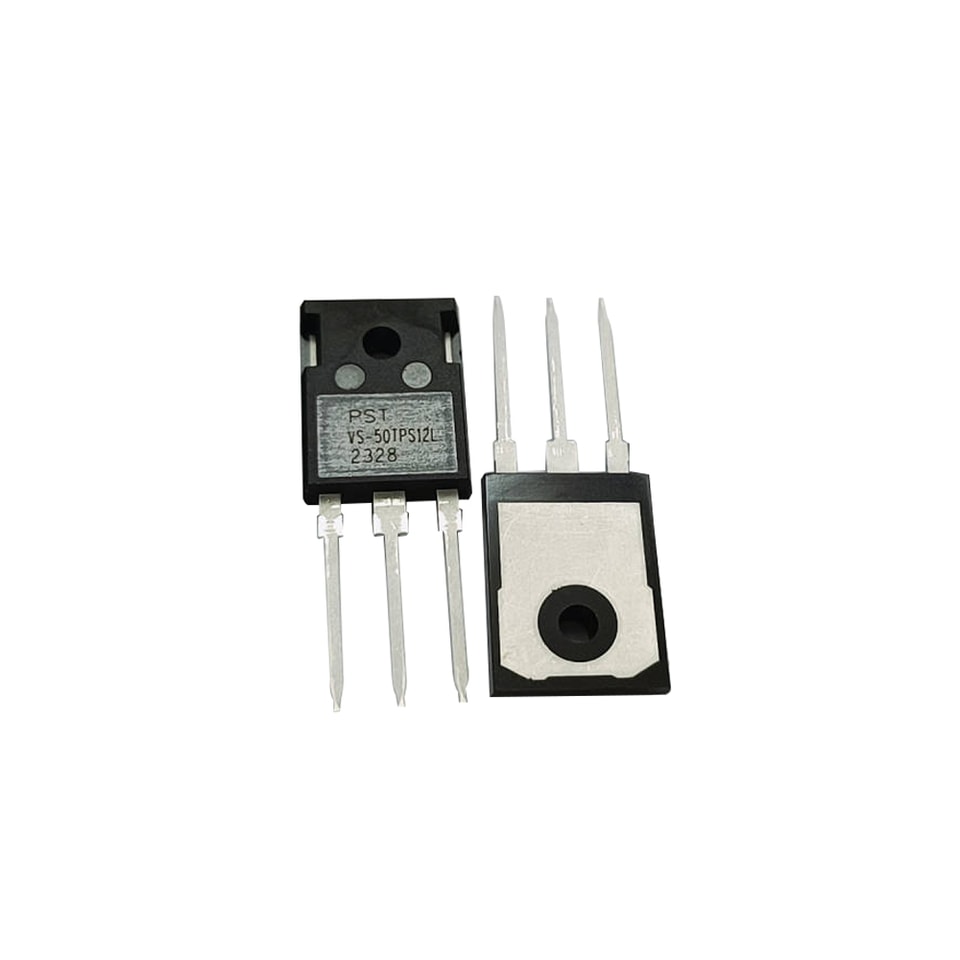

YZPST-50TPS12L Очень высокая способность к импульсному току 1200V TO-247-3L SCR
ОСОБЕННОСТИ
Высокая производительность теплового цикла
Высокая емкость напряжения
Очень высокая способность к токовому импульсу
ПРИМЕНЕНИЯ
Линейное выпрямление 50/60 Гц
Плавный пуск управления переменным током
Управление постоянным током
Преобразователь мощности
Управление переменным током
Освещение и контроль температуры

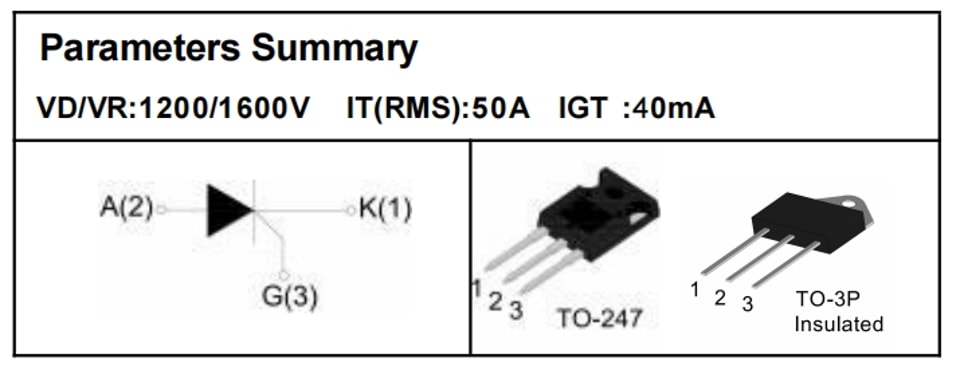

YZPST-50TPS 50A SCR series
Very high current surge capability 1200V TO-247-3L SCR
FEATURES
High thermal cycling performance
High voltage capacity
Very high current surge capability
APPLICATIONS
Line rectifying 50/60 Hz
Softstart AC motor control
DC Motor control
Power converter
AC power control
Lighting and temperature control
|
ABSOLUTE MAXIMUM RATINGS |
|||
|
Parameter |
Symbol |
Value |
Unit |
|
Storagejunction temperature range |
Tstg |
-40 ~ 150 |
℃ |
|
Operating junction temperature range |
Tj |
-40~ 125 |
℃ |
|
Repetitive peak off-state voltage (T =25℃) |
VDRM |
1200/1600 |
V |
|
Repetitive peak reverse voltage (T =25℃) |
VRRM |
1200/1600 |
V |
|
Non repetitive surge peak Off-state voltage |
VDSM |
VDRM +100 |
V |
|
Non repetitive peak reverse voltage |
VRSM |
VRRM +100 |
V |
|
RMS on-state current (T = 100℃) |
IT(RMS) |
50 |
A |
|
Non repetitive surge peak on-state current |
ITSM |
630 |
A |
|
I2t value for fusing (tp= 10ms) |
I2t |
2450 |
A2 S |
|
Critical rate of rise of on-state curren t(I =2×IGT, tr ≤ 100 ns) |
di/dt |
150 |
A/μS |
|
Peak gate current |
IGM |
2.5 |
A |
|
Average gate power dissipation |
PG(AV) |
2.5 |
W |
| Thermal Resistances | ||||
| Symbol | Parameter | Value | Unit | |
| TO-3P | 0.6 | |||
| Rth(j-c) | Junction to case (DC) | TO-247 | 0.55 | ℃/W |
| ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified) | |||||
| Symbol | Test Condition | Value | Unit | ||
| MIN. | TYP. | MAX. | |||
| IGT | V = 12V R = 140Ω | 20 | 40 | 60 | mA |
| VGT | 1.3 | V | |||
| VGD | VD=VDRM Tj= 125℃ R= 1KΩ | 0.2 | V | ||
| IL | IG= 1.2IGT | 300 | mA | ||
| IH | IT= 50mA | 200 | mA | ||
| dV/dt | VD=2/3VDRM Gate Open Tj=125℃ | 500 | V/μs | ||
| STATIC CHARACTERISTICS | ||||
| Symbol | Parameter | Value(MAX ) | Unit | |
| VTM | ITM = 140A tp=380μs | Tj =25℃ | 1.8 | V |
| IDRM | VD=VDRM VR=VRRM | Tj =25℃ | 200 | μA |
| IRRM | Tj =125℃ | 8 | mA | |

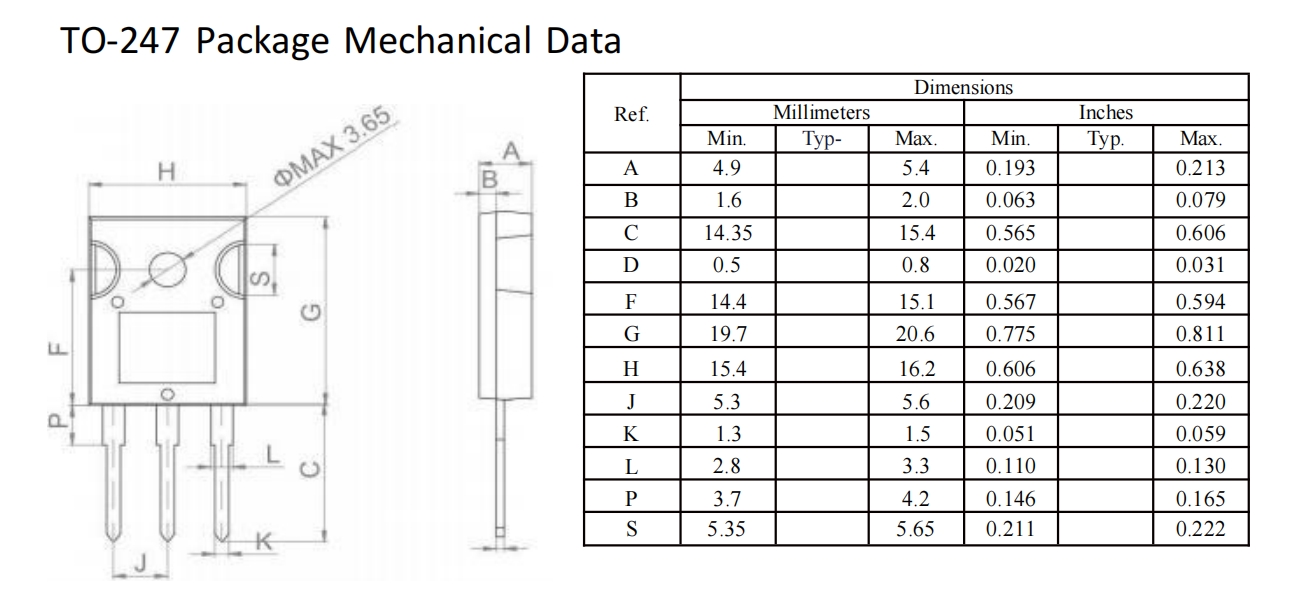

TO-247 Package Mechanical Data
