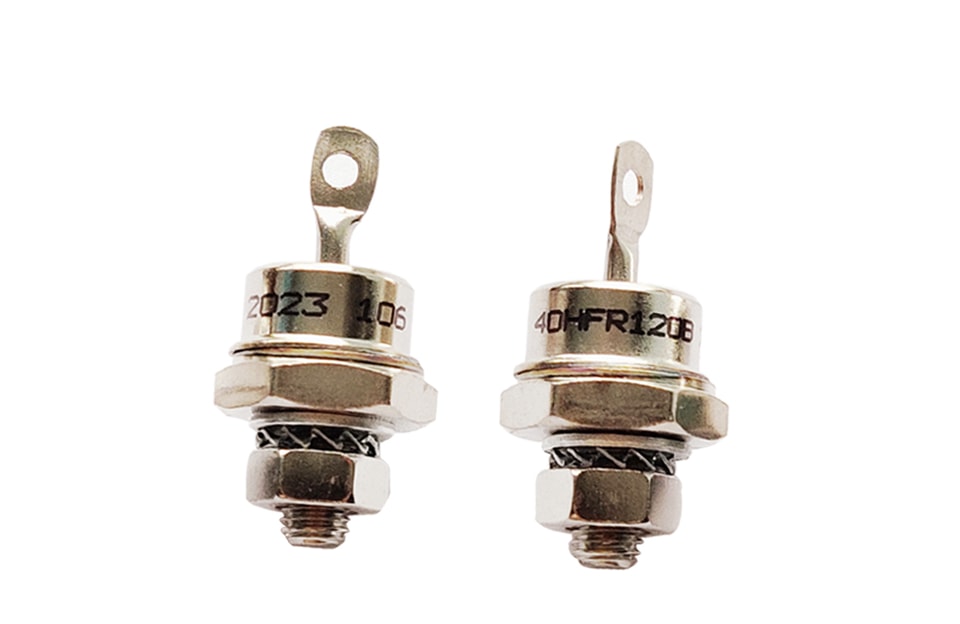

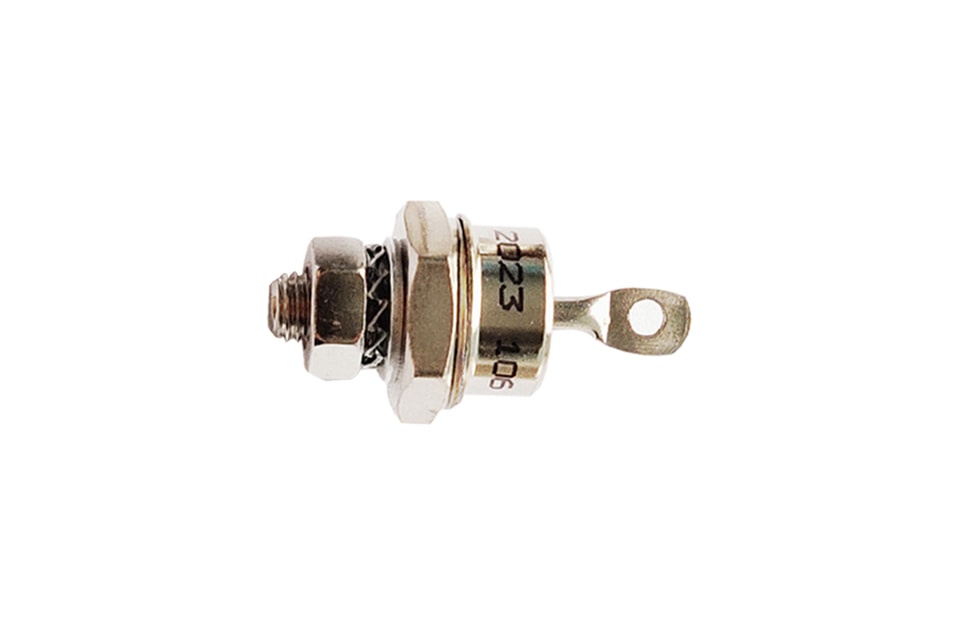

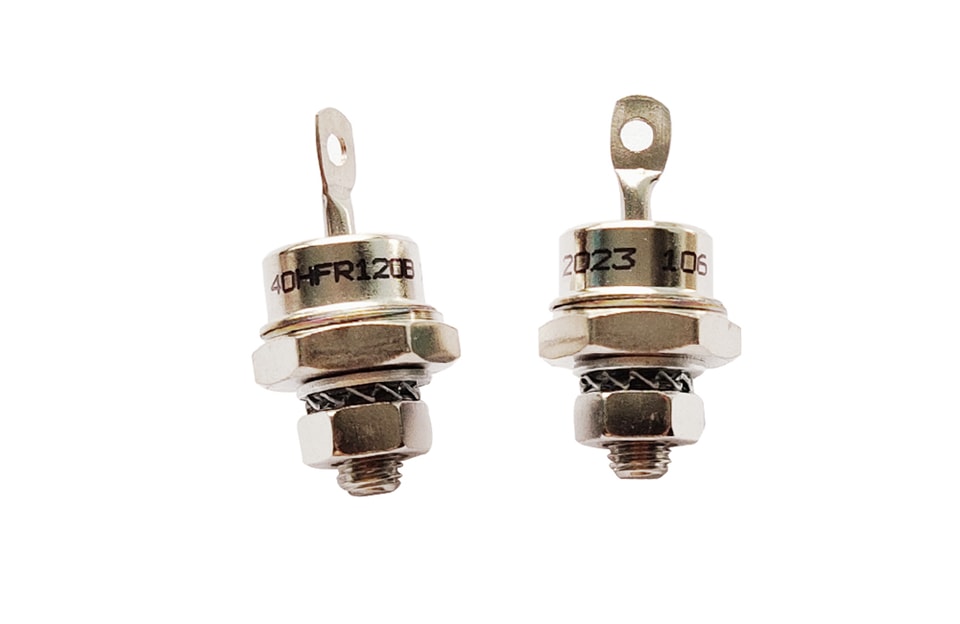

YZPST-17HF(R)120
Features:
Wide current range
High surge current capabilities
Stud cathode and stud anode version
Typical Applications:
Converters
Power supplies
Machine tool controls
Battery charges
Forward Conduction
|
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
|
Repetitive peak reverse voltage |
VRRM |
|
|
1200 |
V |
|
|
Non repetitive peak reverse voltage |
VRSM |
|
|
1300 |
V |
|
|
Max. average forward current |
IF(AV) |
|
|
17 |
A |
Sinewave,180o conduction,Tc=140oC |
|
Max. RMS forward current |
IF(RMS) |
|
|
- |
A |
Nominal value |
|
Max. peak, one-cycle forward, non-repetitive surge current |
IFSM |
|
|
295 |
A |
10.0 msec (50Hz), sinusoidal wave- shape, 180o conduction, Tj = 180 oC |
|
Maximum I2t for fusing |
I2t |
|
|
310 |
A2s |
|
|
Max. forward voltage drop |
VFM |
|
|
1.23 |
V |
ITM = 48 A; Tvj=25 oC |
|
Threshold voltage |
VF0 |
|
|
0.9 |
V |
|
Thermal and Mechanical Specifications
|
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
|
Operating temperature |
Tj |
-65 |
+175 |
|
oC |
|
|
Storage temperature |
Tstg |
-65 |
+200 |
|
oC |
|
|
Thermal resistance - junction to case |
RQ (j-c) |
|
- - |
1.6 |
K/W |
|
|
Thermal resistamce - case to heatsink |
RQ (c-s) |
|
- - |
0.5 |
K/W |
|
|
Mounting force |
P |
|
|
1.2 |
Nm |
± 10% |
|
Weight |
W |
- |
- |
- |
g |
|
|
Case style |
|
|
|
DO-4 |
|
See Outline Table |
For more information about Standard recovery stud diode please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "
