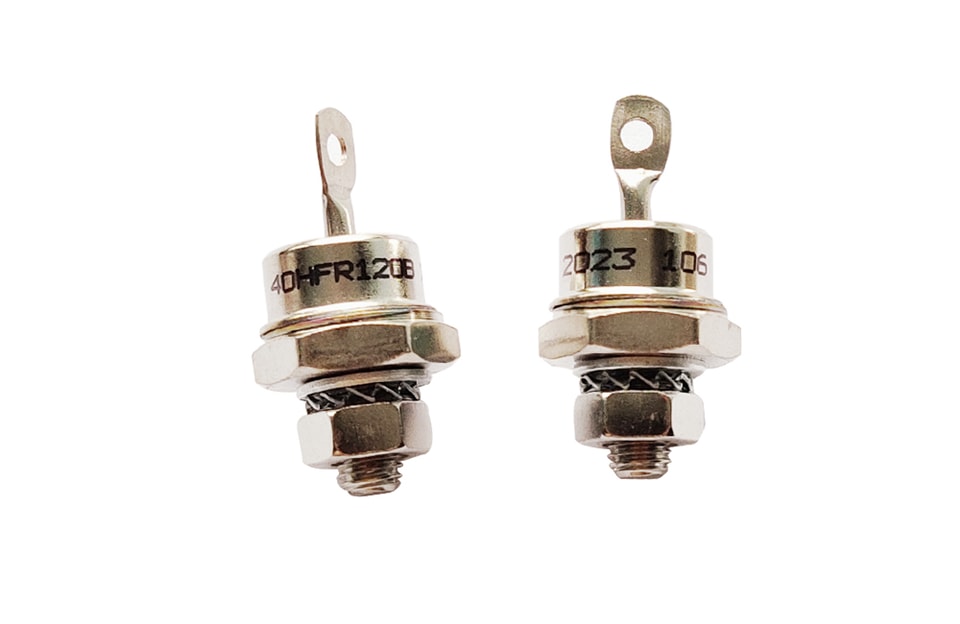

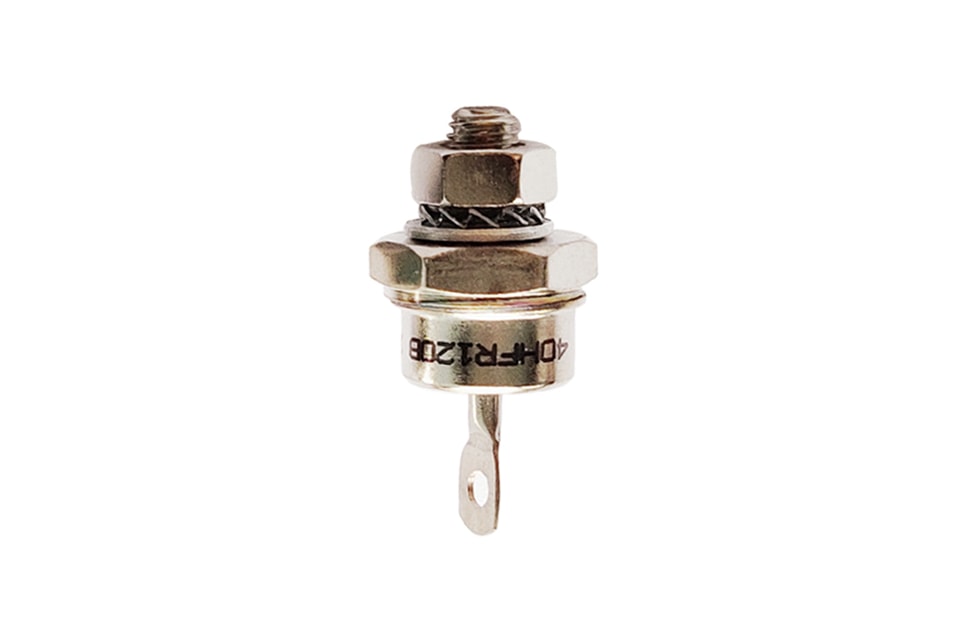

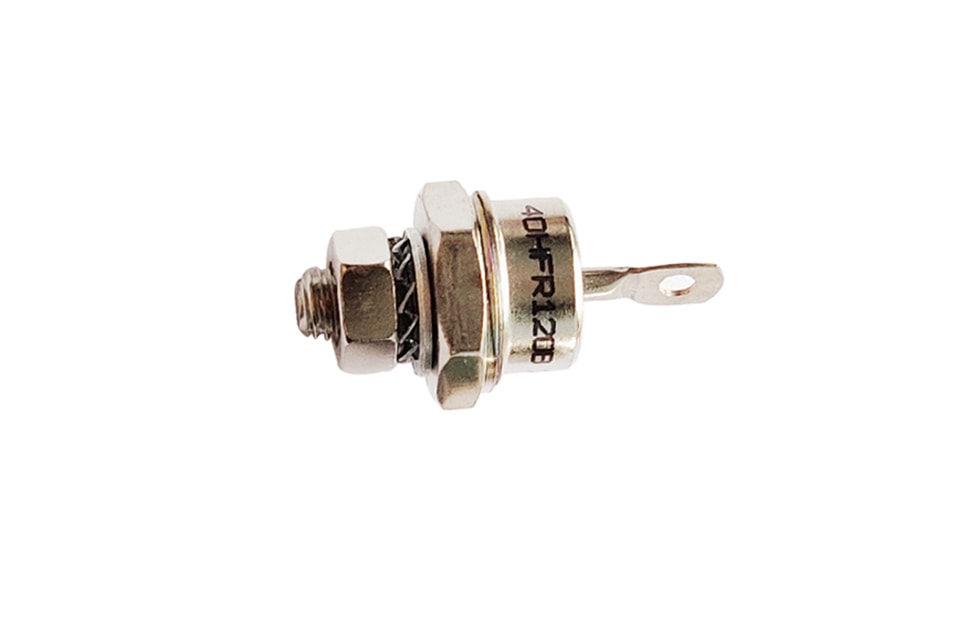

YZPST-40HF(R)120
Forward Conduction
|
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
|
Repetitive peak reverse voltage |
VRRM |
|
|
1200 |
V |
|
|
Non repetitive peak reverse voltage |
VRSM |
|
|
1300 |
V |
|
|
Max. average forward current |
IF(AV) |
|
|
40 |
A |
Sinewave,180o conduction,Tc=140oC |
|
Max. RMS forward current |
IF(RMS) |
|
|
62 |
A |
Nominal value |
|
Max. peak, one-cycle forward, non-repetitive surge current |
IFSM |
|
|
570 |
A |
10.0 msec (50Hz), half sinewave, Tj = 190 oC, VRM = 0.6VRRM |
|
Maximum I2t for fusing |
I2t |
|
|
1.6 |
kA2s |
|
|
Max. forward voltage drop |
VFM |
|
|
1.30 |
V |
ITM = 125A; Tc=25oC |
|
Threshold voltage |
VF0 |
|
|
0.65 |
V |
|
|
Slope resistance |
rf |
|
|
4.29 |
mΩ |
|
Thermal and Mechanical Specifications
|
Parameter |
Symbol |
Min. |
Max. |
Typ. |
Units |
Conditions |
|
Operating temperature |
Tj |
-40 |
+190 |
|
oC |
|
|
Storage temperature |
Tstg |
-40 |
+190 |
|
oC |
|
|
Reverse recovery charge |
Qrr |
|
|
- |
μc |
|
|
Thermal resistance - junction to case |
RQ (j-c) |
|
0.95 |
|
K/W |
|
|
Thermal resistamce - case to heatsink |
RQ (c-s) |
|
0.25 |
|
K/W |
|
|
Mounting force |
P |
|
|
3.4 |
Nm |
± 10% |
|
Weight |
W |
- |
- |
17 |
g |
about |
|
Case style |
|
|
|
DO-5 |
|
See Outline Table |
