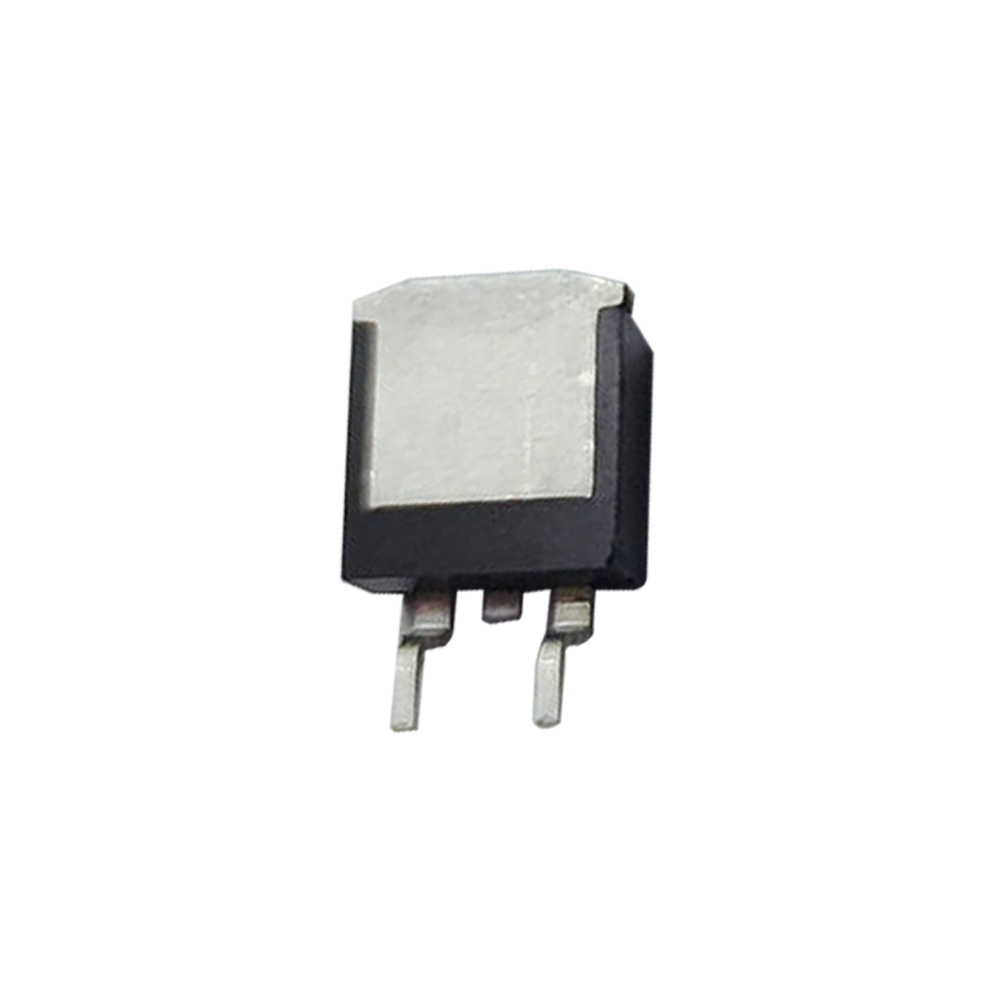

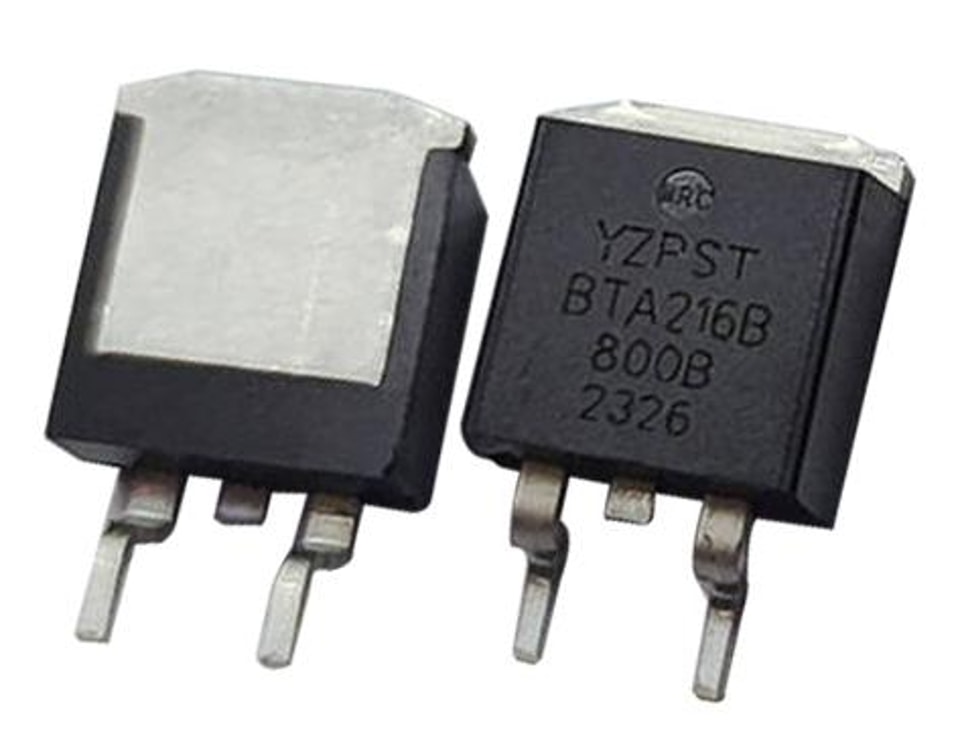

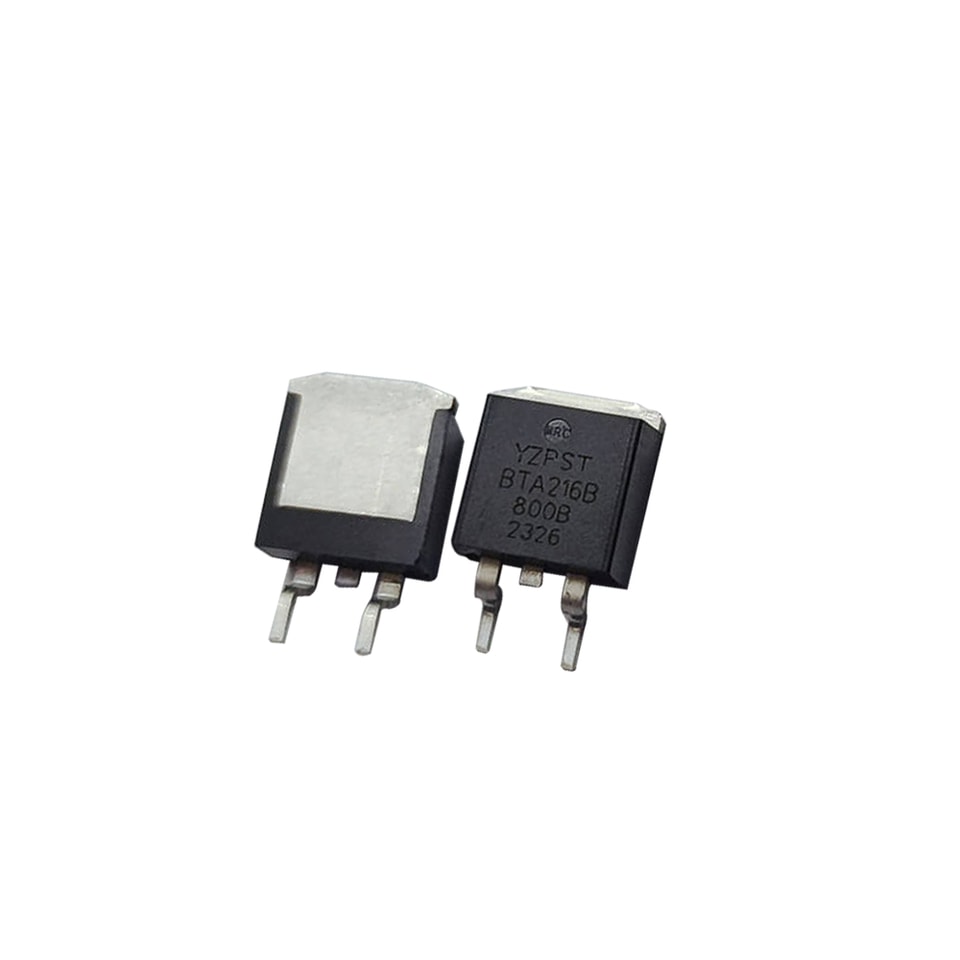

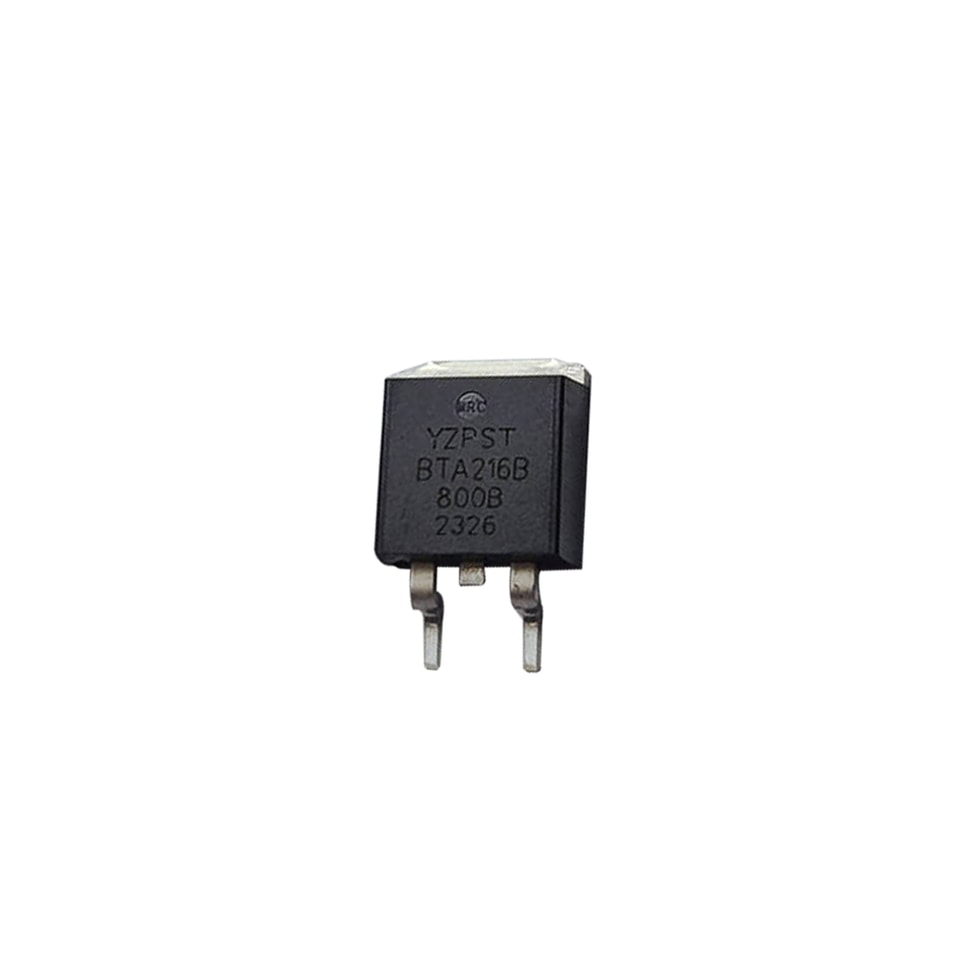

YZPST-BTA216B-800B 800V BTA216B-800B тиристор, подходящий для общего назначения переключения переменного тока
ОПИСАНИЕ:
Благодаря стеклянной пассивации разделения, эти устройства обладают хорошей производительностью при dv/dt и надежностью. Серия Triac подходит для переключения переменного тока общего назначения. Они могут использоваться в качестве функции Вкл./Выкл. в приложениях, таких как статические реле, регулирование нагрева или для операции фазового контроля в диммерах света, регуляторах скорости двигателя.
.jpg)
BTA216B-600B/800B TRIACS
DESRCRIPTION:
Due to separation glass passivation, these devices have good performance at dv/dt and reliability. The Triac series is suitable for general purpose AC switching. They can be used as an On-Off function in the applications such as static relays, heating regulation, or for phase control operation in light dimmers, motor speed controllers.
MAIN FEATURES
| Symbol | Value | Unit |
| IT(RMS) | 16 | A |
| VDRM/VRRM | 600/800 | V |
| IGT | ≤10 | mA |
ABSOLUTE MAX I MUM RATINGS
| Symbol | PARAMETER | Value | Unit | |
| IT(RMS) | RMS on-state current(full sine wave) | TO-263.Non-Ins TC≤99℃ | 16 | A |
| Non repetitive surge peak on-state current | t=20ms | 140 | ||
| ITSM | (full sine wave, Tj=25℃) | t= 16.7ms | 150 | A |
| I2t | I2t Value for fusing | t= 10ms | 98 | A2S |
| di/dt | Repetitive rate of rise of on-state Current after triggering | ITM = 20 A; IG = 0.2 A dIG/dt = 0.2 A/us | 100 | A/μs |
| IGM | Peak gate current, | — | 2 | A |
| VGM | Peak gate voltage | — | 5 | W |
| PGM | Peak gate power | — | 5 | W |
| PG(AV) | Average gate power | over any 20 ms period | 0.5 | W |
| Tstg | Storage junction temperature range | -40 to +150 | ℃ | |
| Tj | Operating junction temperature range | 125 | ℃ | |
ELECTRICAL CHARACTERISTICS (Tj = 25。C, unless otherwise specified)
STATIC CHARACTERISTICS
| Symbol | Parameter | Test Condition | Quadrant | Value | Unit | ||
| MIN | TYPE | MAX | |||||
| IGT | Gate trigger current | VD= 12V, IT=0. 1A | Ⅰ-Ⅱ-Ⅲ | - | - | 10 | mA |
| VD= 12V, IT=0. 1A | - | 0.7 | 1.5 | ||||
| VGT | Gate trigger voltage | VD=400V, IT=0. 1A,Tj= 125°C | 0.25 | 0.4 | - | V | |
| VT | On-state voltage | IT=20A | - | 1.2 | 1.5 | V | |
| IH | Holding current | VD= 12V, IGT=0. 1A | Ⅰ-Ⅱ-Ⅲ | - | - | mA | |
| Ⅰ-Ⅲ | - | - | 60 | mA | |||
| IL | Latching current | VD= 12V, IGT=0. 1A | Ⅱ | - | - | 90 | mA |
| ID | Off-state leakage current | VD = VDRM(max); Tj= 125 ˚C | - | 0.1 | 0.5 | mA | |

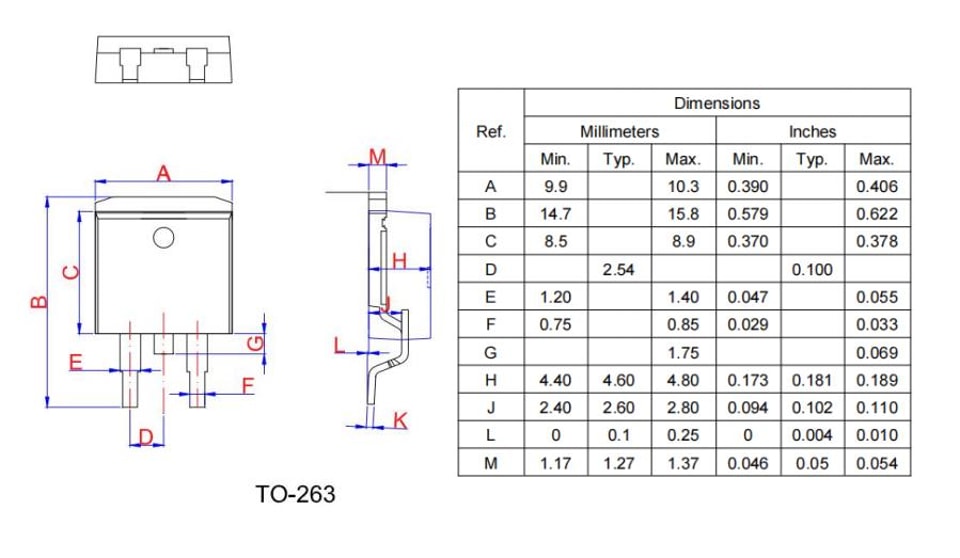

PACKAGE MECHANICAL DATA
TO-263
