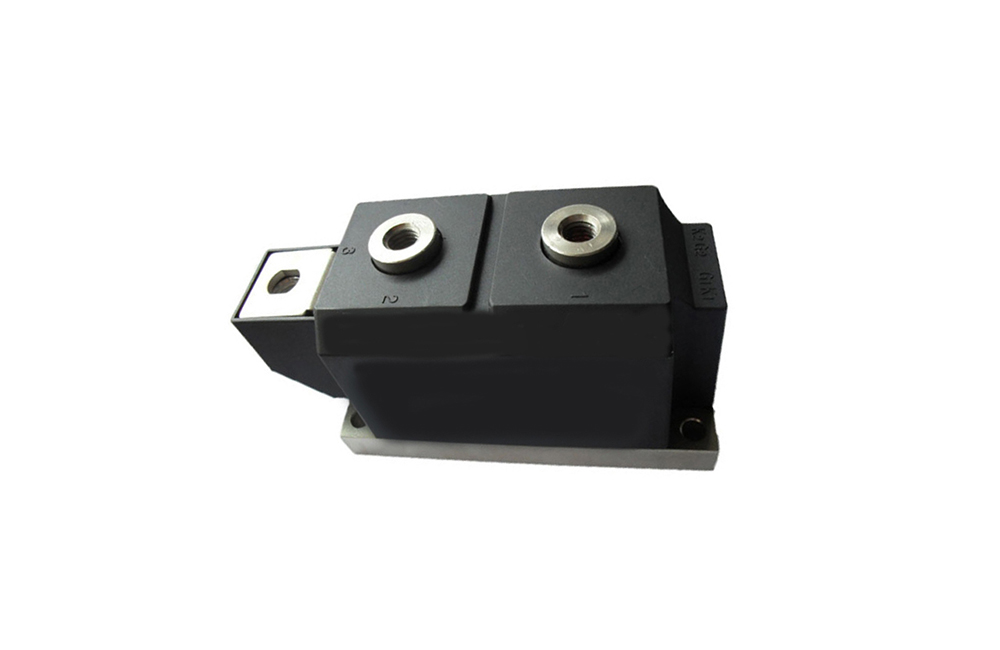

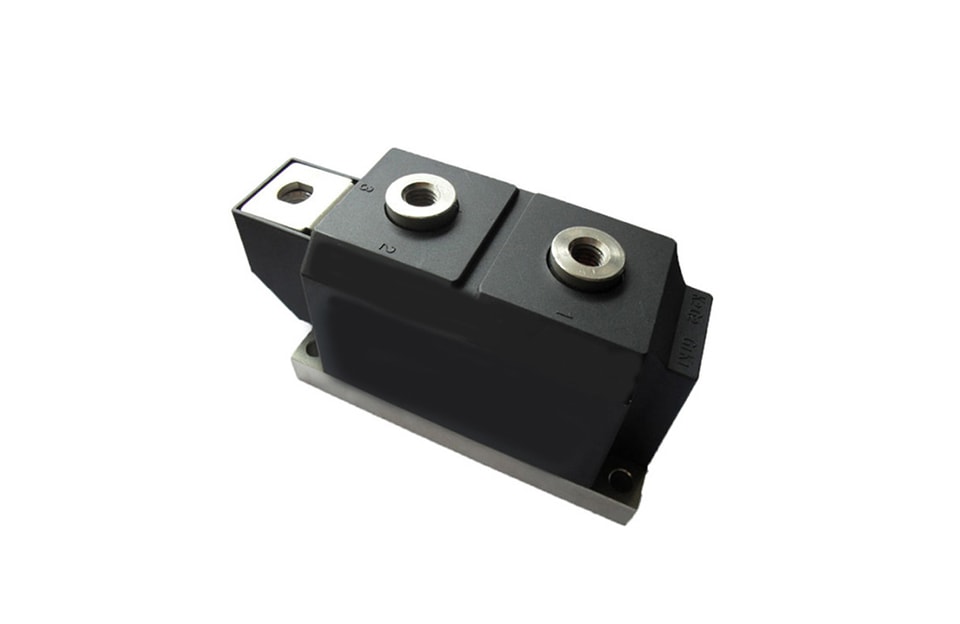

YZPST-MD3-800-44-N-D
Features
· Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
· Hard Soldered Joints For High Reliability
Typical Applications
· Rectifier for drives applications
· Rectifiers for UBS
· Battery chargers
BLOCKING
|
Symbol |
Condition |
Ratings |
Unit |
|
VRRM VRSM |
Tj= Tj Max. |
4400 4500 |
V |
|
IRRM |
AtVRRM，Single phase，half wave，Tj= Tj Max. |
30 |
mA |
|
VISOL |
a.c 50HZ,r.m.s,1S/1min |
3600/3000 |
V |
CONDUCTING
|
Symbol |
Condition |
Ratings |
Unit |
|
IF(AV) |
TC=85°C; 180° sine |
800 |
A |
|
IF(RMS) |
TC=85°C; 180° sine |
1256 |
A |
|
IFSM |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
23000 |
A |
|
I2t |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
2600 |
kA2S |
|
VF(TO) |
Tj= Tj Max. |
0.9 |
V |
|
rF |
Tj= Tj Max. |
0.37 |
mΩ |
|
VFM |
On-State Current 2512A，Tj=25°C |
1.77 |
V |
|
Trr |
Tj= 125°C IF =120A –di/dt=1000A/us VR =1200V |
- |
ns |
Electrical Characteristics
|
Symbol |
Condition |
Ratings |
Unit |
|
Rth(j-c) |
Per Module |
0.025 |
°C /W |
|
Rth(c-h) |
Per Module |
0.008 |
°C /W |
|
Tj |
|
-40 ~ + 150 |
°C |
|
Tstg |
|
-40 ~ + 125 |
°C |
|
M |
mounting torque |
9 |
Nm |
|
terminal torque |
18 |
Nm |
|
|
W |
|
- |
g |
For more information about Diode Module please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "
