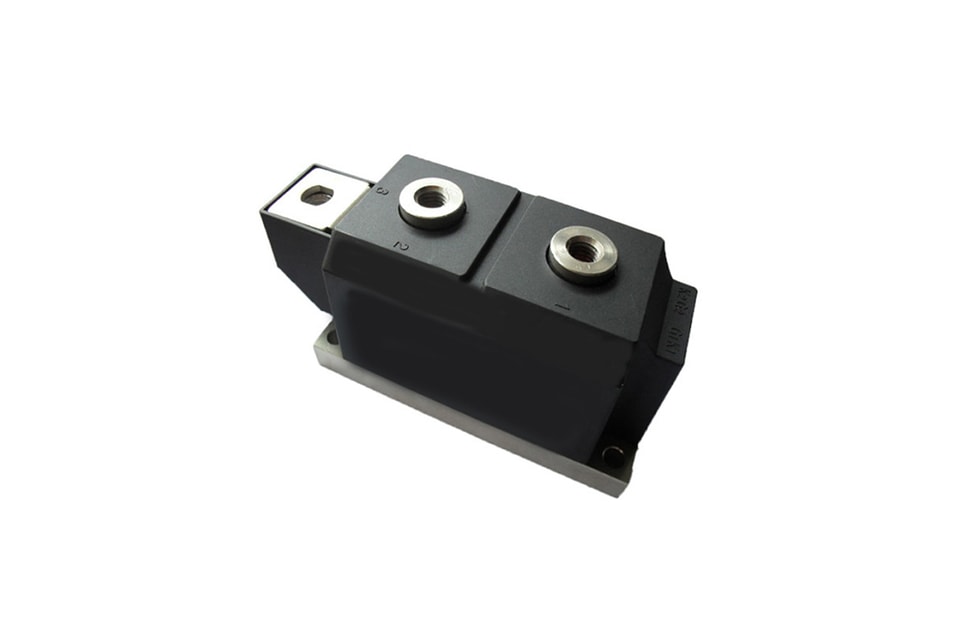

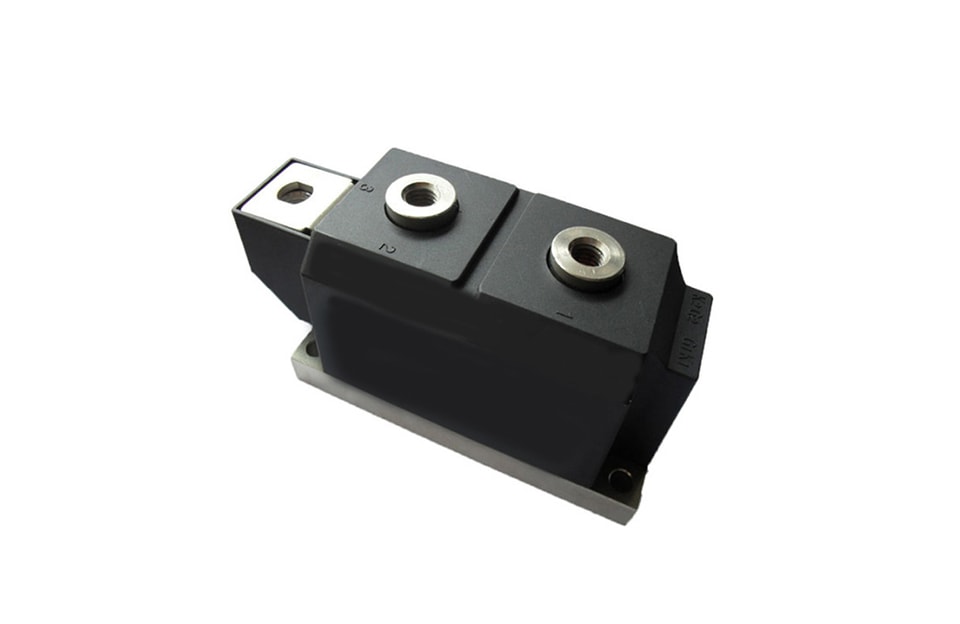

YZPST-MT3-500-36-D
Features
· Heat transfer through aluminium nitride ceramic isolated metal baseplate
· Precious metal pressure contacts for high reliability
Typical Applications
· DC motor control
· Temperature control
· Professional light dimming
Maximum Ratings
|
Symbol |
Condition |
Ratings |
Unit |
|
IT(AV) |
Single phase，half wave，sin 180° conduction ;TC=85°C |
500 |
A |
|
ITRMS |
Single phase，half wave，sin 180° conduction ;TC=85°C |
785 |
A |
|
ITSM |
Tj=125°C |
18 |
kA |
|
I2t |
Tj=125°C |
1620 |
kA2S |
|
VDRM/VRRM |
Tj=125°C |
3600/3600 |
V |
|
di/dt |
non-repetitive |
400 |
A/us |
|
Viso |
A.C.1minute/1S |
3000/3600 |
V |
|
Tj |
|
-40 ~ + 125 |
°C |
|
Tstg |
|
-40 ~ + 125 |
°C |
|
W |
About |
- |
Kg |
|
Symbol |
Condition |
Ratings |
Unit |
|
IDRM /IRRM |
AtVDRM，Single phase，half wave，Tj=125°C |
250 |
mA |
|
VTM |
On-State Current 1570A，Tj=25°C |
1.85 |
V |
|
VT(TO) |
Tj=125°C |
1.10 |
V |
|
rT |
Tj=125°C |
0.40 |
mΩ |
|
RK1G1 |
|
- |
Ω |
|
RK2G2 |
|
- |
Ω |
|
tgd |
Tj=25°C;VD=0.4VDRM ; ITM=ITAV |
3 |
us |
|
tq |
dvD/dt=50V/us;Tj=125°C; ITM=ITAV |
400 |
us |
|
IGT/VGT |
Tj=25°C，IT=1A，VD=6V |
300 / 2.5 |
mA/V |
|
VGD |
VD=67%VDRM |
0.35 |
V |
|
DV/DT |
VD=67%VDRM |
1000 |
V/us |
|
IH |
Tj=25°C |
300 |
mA |
|
IL |
Tj=25°C |
1500 |
mA |
|
Rth(j-c) |
Thermal resistance Junction to case |
0.025 |
°C/W |
|
Rth(c-h) |
Thermal resistance case to heatsink |
0.008 |
°C/W |
