YZPST-S2535
Совет: укажите артикул, требуемые напряжение/ток и условия применения.
Загрузки и технические файлы

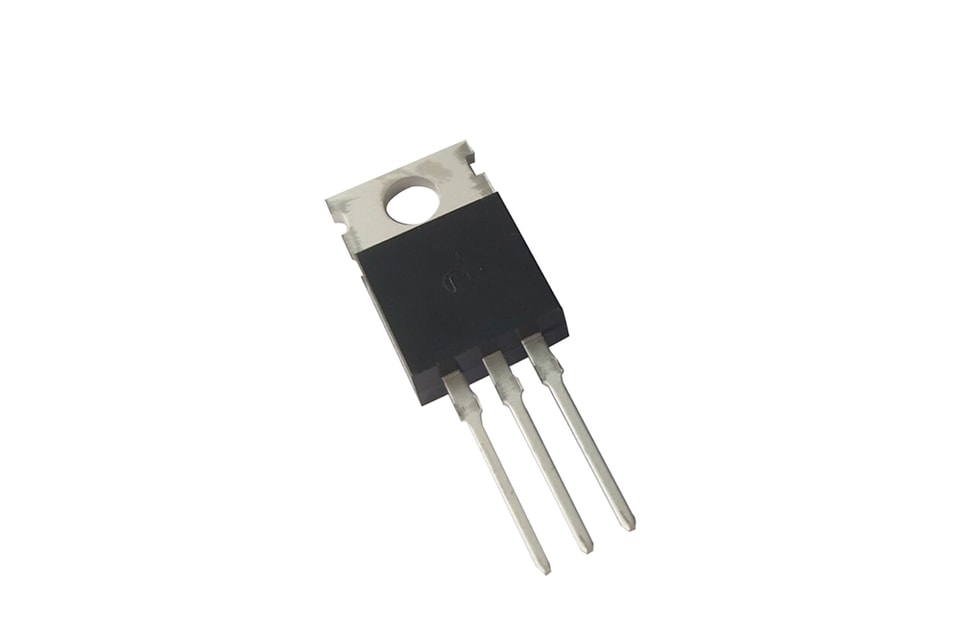

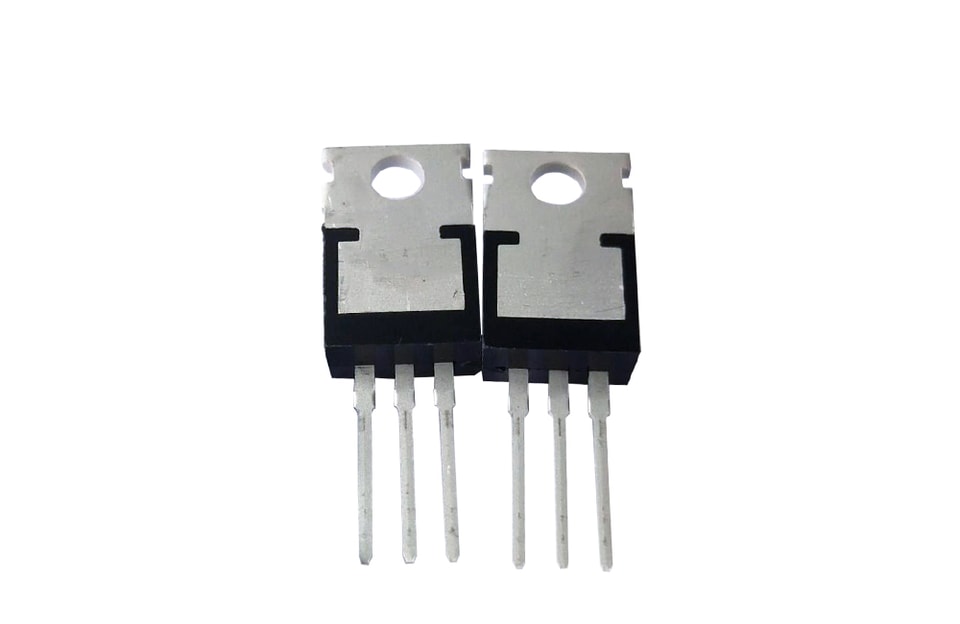

Стеклопассивированные тиристоры в пластмассовом корпусе серии PSTS2535SCR подходят для всех режимов управления и применяются в схемах защиты от перенапряжения crowbar, цепях управления двигателями в электроинструментах и кухонной технике, схемах ограничения пускового тока, системах зажигания с емкостным разрядом, схемах плавного пуска и регулирования напряжения переменного тока…
Обозначение | Значение | Ед. изм. |
IT(СКЗ) | 40 | A |
VDRMVRRM | 1200 | V |
IGT | 35 | mA |
Параметр | Обозначение | Значение | Ед. изм. |
Диапазон температуры хранения перехода Диапазон температуры хранения перехода | Tstg | -40 ~150 | ℃ |
Диапазон рабочей температуры p-n-перехода | Tj | -40~125 | ℃ |
Повторяющееся пиковое напряжение в закрытом состоянии (T =25℃) | VDRM | 1200 | V |
Повторяющееся пиковое обратное напряжение (T =25℃) | VRRM | 1200 | V |
Неповторяющееся импульсное пиковое напряжение в закрытом состоянии | VDSM | VDRM+100 | V |
Неповторяющееся пиковое обратное напряжение | VRSM | VRRM+100 | V |
Действующее значение тока в открытом состоянии (T =100℃) | IT(СКЗ) | 40 | A |
Неповторяющийся импульсный пиковый ток во включенном состоянии | ITSM | 350 | A |
Средний ток в открытом состоянии (угол проводимости 180°) | IT(AV) | 25 | A |
I2t-значение для плавления (tp=10 мс) | I2t | 450 | A2S |
Критическая скорость нарастания тока в открытом состоянии (I =2×IGT,tr≤ 100 нс) | dI/dt | 150 | А/мкс |
Пиковый ток затвора | IGM | 4 | A |
Среднее рассеяние мощности затвора | PG(AV) | 1 | W |
ЭЛЕКТРИЧЕСКИЕ ХАРАКТЕРИСТИКИ (T=25℃, если не указано иное)
Обозначение | Условия испытаний |
| Значение | Ед. изм. |
IGT | V =12V R =140Ω | МАКС. | 35 | mA |
VGT | МАКС. | 1.3 | V | |
VGD | VD=VDRMTj=125℃ R=1KΩ | МИН. | 0.2 | V |
IL | IG=1.2IGT | МАКС. | 75 | мА |
IВ | IT=50mA | МАКС. | 50 | мА |
dV/dt | VD=2/3VDRMОткрытый затвор Tj=125℃ | МИН. | 500 | В/мкс |
YZPST может предоставить следующий список аналогов SCR и симистор.
2P4M | BT2588 | Q6006 | SCF6C60 | TS820 |
2P6M | BY169 | Q8006 | S6012 | TS420 |
25TTS16 | BT169 | Q6008 | S8012 | TYN612 |
40TPS16 | BT151S | Q8008 | S8016 | TYN616 |
70TPS16 | BT148W | Q6010 | SCF25C60 | TYN816 |
| BT148S | Q8010 | S6025 | TYN620 |
CR08AS | BT151 | Q6016 | S8025 | TYN820 |
C106 | BT152 | Q8016 | SK025 | TYN1025 |
CS30 | BTW69 | Q6025 | S6035 | TYN1225 |
CS45 | BT131 | Q8025 | S8035 | TYN630 |
CS60-16i01 | BT134 | QK025 | SK035 | TYN830 |
| BT136 | Q6040 | S6040 | TYN640 |
MCR100-6 | BCR2PM | Q8040 | S8040 | TYN840 |
MCR100-8 | BTA01 | QK040 | S6055 | T405 |
MCR706 | BTB04 |
| S8055 | T410 |
MCR72-6/8 | BTA06 |
| SK055 | T435 |
MCR22 | BTB06 |
| STN1A60 | T805 |
MAC97A6 | BTA08 |
| STN1A80 | T810 |
MAC97A8 | BTB08 |
| STF4A60 | T835 |
| BT137 |
| STF6A60 | TMG8C60 |
FS0102MA | BTA10 |
| STF08 | TMF12C60 |
| BTB10 |
| STF12A60 | T1235 |
X0405 | BTA16 |
|
| TMG16C60 |
X0805 | BTB16 |
|
| TIC246 |
X0205 | BT139 |
|
| T1620 |
| BTA216 |
|
| T1635 |
Z00607 | BTA20 |
|
| TMG20C60 |
Z0103 | BTB20 |
|
| T2535 |
Z0107 | BTA24 |
|
| TMG25CQ60 |
Z0405 | BTB24 |
|
|
|
Z0409 | BTA140 |
|
|
|
| BTA26 |
|
|
|
| BTB26 |
|
|
|
| BTA41 |
|
|
|
| BTB41 |
|
|
TN1215-600H | T835-600G | T1235H6G | Z00607MN |
TN1215T-600B | T810T-61 | T1250H6G | Z00607MA |
TN1215-600B | T835T-61 | T1235H6I | Z0103MN |
TYN612MFP | T830-600W | T1250H6I | Z0107MN |
TN1215-800H | TXDV608 | T1235H6T | Z0109MN |
TN1215-800B | T810-800H | T1250H6T | Z0103MA |
TYN812 | T835-800H | T1235T-8T | Z0107MA |
TYN610 | T810-800B | T1235T-8FP | Z0109MA |
TYN810 | T835-800B | T1635H6G | Z0405MF |
TYN612T | T810-800G | T1650H6G | Z0409MF |
TYN612M | T835-800G | T1635H6I | Z0410MF |
TN1215-600G | T830-800W | T1650H6I | Z0405NF |
TN1215-800G | T830-8FP | T1635H6T | Z0409NF |
TN1625-600G | TXDV808 | T1650H6T | Z0410NF |
TN1625-800G | T1210-600G | T1625T-8I |
|
TN2540-600G | T1235-600G | T1635T-8I | ACS102-6TA |
TXN625 | T1250-600G | T1635T-8T | ACS108-6SN |
TYN625 | T1210T-6I | T1635T-8FP | ACS110-7SN |
TN2540-800G | T1235T-6I | T2035H6G | ACS108-6SA |
TXN825 | TXDC612 | T2050H6G | ACST210-8B |
TYN825 | T1210-800G | T2035H6I | ACST210-8FP |
TYN1225 | T1235-800G | T2050H6I | ACST410-8B |
TYN640 | T1250-800G | T2035H6T | ACST310-8B |
TYN840 | T1610-600G | T2050H6T | ACST435-8B |
T405-600H | T1635-600G | T3035H6I | ACST410-8FP |
T410-600H | T1610T-6I | T3050H6I | ACST310-8FP |
T435-600H | T1635T-6I | T3035H6T | ACST435-8FP |
T405-600B | T1620-600W | T3050H6T | ACST830-8T |
T410-600B | T1630-600W |
| ACST830-8FP |
T435-600B | T1610-800G | TYN16-600CT | ACST1010-7T |
T405-600T | T1635-800G | TYN16-600RT | ACST1035-7T |
T410-600T | T1620-800W | TYN16X-600CT | ACST1010-7FP |
T435-600T | T1630-800W | TYN16X-600RT | ACST1035-7FP |
T405-600W | T2535-600G | TYN16-800RT | ACST1210-7T |
T410-600W | T2535-800G | TYN16X-800RT | ACST1235-7T |
T435-600W | T2550-12G | TYN20X-T | ACST163S-8FP |
T435T-600FP | T2550-12T |
|
|
T405-800H | T405Q-600H | MAC97A6 | ACT108W-600D |
T410-800H | T405Q-600B | MAC97A8 | ACT108-600D |
T435-800H | T635T-8T | MAC223A8X | ACT108W-600E |
T405-800B | T635T-8FP | MAC223A6 | ACTT2S-800E |
T410-800B | T835H6G |
| ACTT2X-800E |
T435-800B | T850H6G |
| ACTT4S-800E |
T405-800T | T835H6T |
| ACTT4S-800C |
T410-800T | T835H6I |
| ACTT8B-800C0 |
T435-800T | T850H6I |
| ACTT8-800C0 |
T405-800W | T835T-8T |
| ACTT8X-800C0 |
T410-800W | T850H6T |
| ACTT10-800C |
T435-800W | T835T-8FP |
| ACTT10X-800C |
T810-600H |
|
| ACTT12B-800C |
T835-600H |
|
| ACTT12-800C |
T810-600B |
|
| ACTT12X-800C |
T835-600B |
|
| ACT108-600E |
T810-600G |
|
|
BT151U-650C | BTA204X-800E | BTA212-600B | BTA216-600BT |
BT151U-500C | BTA204X-800C | BTA312-600B | BTA316-600B |
BT151S-650R | BTA204X-800B | BTA212X-600D | BTA316-600B0 |
BT151S-500R | BTA206-800ET | BTA312X-600D | BTA216X-600E |
BT151B-650R | BTA206-800CT | BTA212X-600E | BTA316X-600E |
BT151-650R/L | BTA206X-800ET | BTA312X-600E | BTA216X-600F |
BT151-500R/L | BTA206X-800CT | BTA212X-600F | BTA316X-600C |
BT151-650C | BTA208S-600D | BTA312X-600C | BTA216X-600B |
BT151X-500R | BTA208S-600E | BTA212X-600B | BTA316X-600B |
BT151X-650R | BTA208S-600F | BTA312X-600B | BTA316B-800E |
BT151U-800C | BTA208S-600B | BTA212B-800D | BTA316B-800C |
BT151S-800R | BTA208B-1000C | BTA212B-800E | BTA216B-800B |
BT151B-800R | BTA208-600D | BTA312B-800E | BTA316B-800B |
BT151-800R | BTA208-600E | BTA212B-800F | BTA416Y-800C |
BT151X-800R | BTA208-600F | BTA312B-800C | BTA416Y-800B |
BT152-600R | BTA208-600B | BTA212B-800B | BTA316-800E |
BT152-400R | BTA208X-600D | BTA312B-800B | BTA316-800C |
BT152-500RT | BTA208X-600E | BTA312Y-800C | BTA216-800B |
BT152X-600R | BTA208X-600F | BTA412Y-800B | BTA316-800B |
BT152-800R | BTA208X-600B | BTA412Y-800C | BTA316X-800E |
BT152X-800R | BTA208S-800E | BTA212-800D | BTA316X-800C |
BT145-800R | BTA208S-800F | BTA212-800E | BTA216X-800B |
BT155K-1200T | BTA208S-800B | BTA312-800E | BTA316X-800B |
BTA204W-600D | BTA208-800D | BTA212-800F | BTA420Y-800CT |
BTA204W-600E | BTA208-800E | BTA312-800C | BTA420Y-800BT |
BTA204W-600C | BTA208-800C | BTA212-800B | BTA420-800CT |
BTA204W-600B | BTA208-800B | BTA312-800B | BTA420-800BT |
BTA204W-800D | BTA208X-800E | BTA212X-800D | BTA420X-800CT |
BTA201W-800E | BTA208X-800C | BTA212X-800E | BTA420X-800BT |
BTA201W-800C | BTA308X-800C | BTA312X-800E | BTA225B-600B |
BTA201W-800B | BTA208X-800B | BTA212X-800F | BTA225-600B |
BTA204S-600D | BTA308X-800B | BTA312X-800C | BTA225B-800B |
BTA204S-600E | BTA212B-600D | BTA212X-800B | BTA425Y-800CT |
BTA204S-600C | BTA312B-600D | BTA312X-800B | BTA425Y-800BT |
BTA204S-600B | BTA212B-600E | BTA216B-600D | BTA225-800C |
BTA204-600D | BTA312B-600E | BTA216B-600E | BTA225-800B |
BTA204-600E | BTA212B-600F | BTA316B-600E | BTA425X-800BT |
BTA204-600C | BTA312B-600C | BTA216B-600F | BT1308W-400D |
BTA204-600B | BTA212B-600B | BTA316B-600C | BT1308W-600D |
BTA204X-600D | BTA312B-600B | BTA216B-600B | BT131W-600 |
BTA204X-600E | BTA312Y-600C | BTA316B-600B | BT131W-600D |
BTA204X-600C | BTA412Y-600C | BTA416Y-600C | BT134-600E |
BTA204X-600B | BTA412Y-600B | BTA416Y600B | BT134-800D |
BTA204S-800E | BTA212-600D | BTA216-600D | BT134-800E |
BTA204S-800C | BTA312-600D | BTA316-600D | BT134-800 |
BTA204S-800B | BTA212-600E | BTA216-600E | BT136S-600D |
BTA204-800E | BTA312-600E | BTA316-600E | BT136S-600E |
BTA204-800C | BTA212-600F | BTA216-600F | BT136S-600F |
BTA204-800B | BTA312-600C | BTA316-600C | BT136B-600E |
BT234-600D | BTA08-600TW | BTA20-600CW | BTA16-600C |
BT136-600D | BTA08-600SW | BTA20-600BW | BTA16-600B |
BT234-600E | BTA08-600CW | BTB20-600CW | BTB16-600C |
BT136-600E | BTA08-600BW | BTB20-600BW | BTB16-600B |
BT136-600F | BTB08-600TW | BTA20-800CW | BTA16-800C |
BT234X-600D | BTB08-600SW | BTA20-800BW | BTA16-800B |
BT136X-600D | BTB08-600CW | BTB20-800CW | BTB16-800C |
BT136X-600E | BTB08-600BW | BTB20-800BW | BTB16-800B |
BT136X-600F | BTA08-800TW | BTA24-600CW | BTA24-600B |
BT136S-800D | BTA08-800SW | BTA24-600BW | BTB24-600B |
BT136S-800E | BTA08-800CW | BTB24-600CW | BTA24-800B |
BT136B-800E | BTA08-800BW | BTB24-600BW | BTB24-800B |
BT234-800D | BTB08-800TW | BTA24-800CW | BTA25-600B |
BT136-800D | BTB08-800SW | BTA24-800BW | BTA25-800B |
BT234-800E | BTB08-800CW | BTB24-800CW | BTA41-600B |
BT136-800E | BTB08-800BW | BTB24-800BW | BTA40-600B |
BT234X-800D | BTA12-600TW | BTA25-600CW | BTA41-800B |
BT136X-800D | BTA12-600SW | BTA25-600BW | BTA40-800B |
BT234X-800E | BTA12-600CW | BTA25-800CW |
|
BT136X-800E | BTA12-600BW | BTA25-800BW | BT137S-600D |
BT236X-600F | BTB12-600TW | BTA26-600CW | BT137S-600E |
BT236X-600G | BTB12-600SW | BTA26-600BW | BT137S-600F |
BT236X-800F | BTB12-600CW | BTA26-800CW | BT137-600E |
BT236X-800G | BTB12-600BW | BTA26-800BW | BT137B-600E |
BTW69-600 | BTA12-800TW | BTB04-600SL | BT137B-600F |
BTW67-600 | BTA12-800SW | BTA06-600C | BT137-600D |
BTW69-800 | BTA12-800CW | BTA06-600B | BT137-600F |
BTW67-800 | BTA12-800BW | BTB06-600C | BT137X-600D |
BTW69-1200 | BTB12-800TW | BTB06-600B | BT137X-600E |
BTW69-1200N | BTB12-800SW | BTA06-800C | BT137X-600F |
BTW67-1200 | BTB12-800CW | BTA06-800B | BT138B-600D |
BTA06-600TW | BTB12-800BW | BTB06-800C | BT138B-600E |
BTA06-600SW | BTA16-600TW | BTB06-800B | BT138B-600F |
BTA06-600CW | BTA16-600SW | BTA08-600C | BT138Y-600E |
BTA06T-600CW | BTA16-600CW | BTA08-600B | BT138-600D |
BTA06-600BW | BTA16-600BW | BT808-600C | BT138-600E |
BTB06-600TW | BTB16-600TW | BTB08-600B | BT138-600F |
BTB06-600SW | BTB16-600SW | BTA08-800C | BT138X-600D |
BTB06-600CW | BTB16-600CW | BTA08-800B | BT138X-600E |
BTB06-600BW | BTB16-600BW | BTB08-800C | BT138X-600F |
BTA06-800TW | BTA16-800TW | BTB08-800B | BT138-800D |
BTA06-800SW | BTA16-800SW | BTA12-600C | BT138-800E |
BTA06-800CW | BTA16-800CW | BTA12-600B | BT138-800F |
BTA06-800BW | BTA16-800BW | BTB12-600C | BT138B-800E |
BTB06-800TW | BTB16-800TW | BTB12-600B | BT138B-800 |
BTB06-800SW | BTB16-800SW | BTA12-800C | BT138Y-800E |
BTB06-800CW | BTB16-800CW | BTA12-800B | BT138-800 |
BTB06-800BW | BTB16-800BW | BTB12-800C | BT138X-800E |
|
| BTB12-800B | BT138X-800 |
BT138X-800F | BT139B-800 | BTA410X-600CT | BTA412Y-800BT |
BT139B-600D | BT139-800D | BTA410X-600BT | BTA412Y-800CT |
BT139B-600E | BT139-800E | BTA410Y-800CT | BTA312-800CT |
BT139B-600F | BT139-800 | BTA410Y-800BT | BTA416Y-600CT |
BT139-600D | BT139X-800D | BTA410-800CT | BTA416Y-600BT |
BT139-600E | BTA140-600 | BTA410-800BT | BTA316-600BT |
BT139-600F | BTA140-600G0 | BTA410X-800CT | BTA416Y-800CT |
BT139X-600D | BTA140-800 | BTA410X-800BT | BTA416Y-800BT |
BT139X-600E | BTA410Y-600CT | BTA312B-600CT | BTA201-800ER |
BT139X-600F | BTA410Y-600BT | BTA412Y-600BT | BTA208X-1000CO |
BT139B-800D | BTA410-600CT | BTA412Y-600CT | BTA308X-1000CO |
BT139B-800E | BTA410-600BT | BTA312-600CT | BTA216Y-800B |
BT139B-800F |
|
|
TO-92 |
TO-251(IPAK) |
TO-252(DPAK) |
TO-220 |
TO-220F |
TO-P3 |
TO-247 |
TO-126(SOT-82) |
TO-223 |
TO-202 |
SOT-23 |
SOT-89 |
TO-263(D2PAK) |
| КОД | УСТРОЙСТВО | ITRMS (А) | IT AV (А) | VD RMS (В) | dv/dt (В/мкс) | TQ (мкс) | IG (мА) | КОРПУС | МАРКА | РИС. |
| ECG5400 | ТИРИСТОР | 0.8 | 0.5 | 30 | 30 | - | 0.2 | TO-92 | PACE | A |
| 2N5061 | ТИРИСТОР | 0.8 | 0.51 | 60 | 30 | 10 | 0.2 | T0-92 | MOTOROLA | A |
| 2N5062 | ТИРИСТОР | 0.8 | 0.51 | 100 | 25 | 60 | 0.2 | TO-92 | MOTOROLA | A |
| MCR100-8 | ТИРИСТОР | 0.8 | 0.51 | 600 | - | - | 0.2 | TO-92 | STM | A |
| MCR22-6 | ТИРИСТОР | 1.5 | 0.95 | 400 | 25 | - | 0.2 | TO-92 | TECCOR | B |
| S4003M | ТИРИСТОР | 3 | 1.9 | 400 | 10 | 35 | 10 | TO-5 | TECCOR | C |
| IR106B | ТИРИСТОР | 4 | 2.5 | 200 | 8 | 100 | 200 | TO-202 | внутр. выпр. | E |
| TIC106D | ТИРИСТОР | 5 | 3.2 | 400 | 10 | 7.7 | 0.2 | TO-220 | TEXAS | E |
| TIC106M | ТИРИСТОР | 5 | 3.2 | 600 | 10 | 7.7 | 0.2 | TO-220 | TEXAS | E |
| TIC116D | ТИРИСТОР | 8 | 5 | 400 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| S6008L # | ТИРИСТОР | 8 | 5.1 | 600 | 160 | 35 | 15 | TO-220 | TECCOR | E |
| TIC116M | ТИРИСТОР | 8 | 5 | 600 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| TIC126D | ТИРИСТОР | 12 | 7.5 | 400 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| BT151-500R | ТИРИСТОР | 12 | 7.5 | 500 | 130 | 70 | 2 | TO-220 | PHILIPS | E |
| TIC126M | ТИРИСТОР | 12 | 7.5 | 600 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| BT151-800R | ТИРИСТОР | 12 | 7.5 | 800 | 130 | 70 | 2 | TO-220 | NXP | E |
| TYN616 | ТИРИСТОР | 16 | 10 | 600 | 50 | 50 | 25 | TO-220 | STM | E |
| MCR16N | ТИРИСТОР | 16 | 10 | 800 | 200 | - | 10 | TO-220 | ON SEMI | E |
| S6020L # | ТИРИСТОР | 20 | 12.8 | 600 | 200 | 35 | 30 | TO-220 | TECCOR | E |
| TXN692 # | ТИРИСТОР | 20 | 13 | 800 | 500 | - | 25 | TO-220 | STM | E |

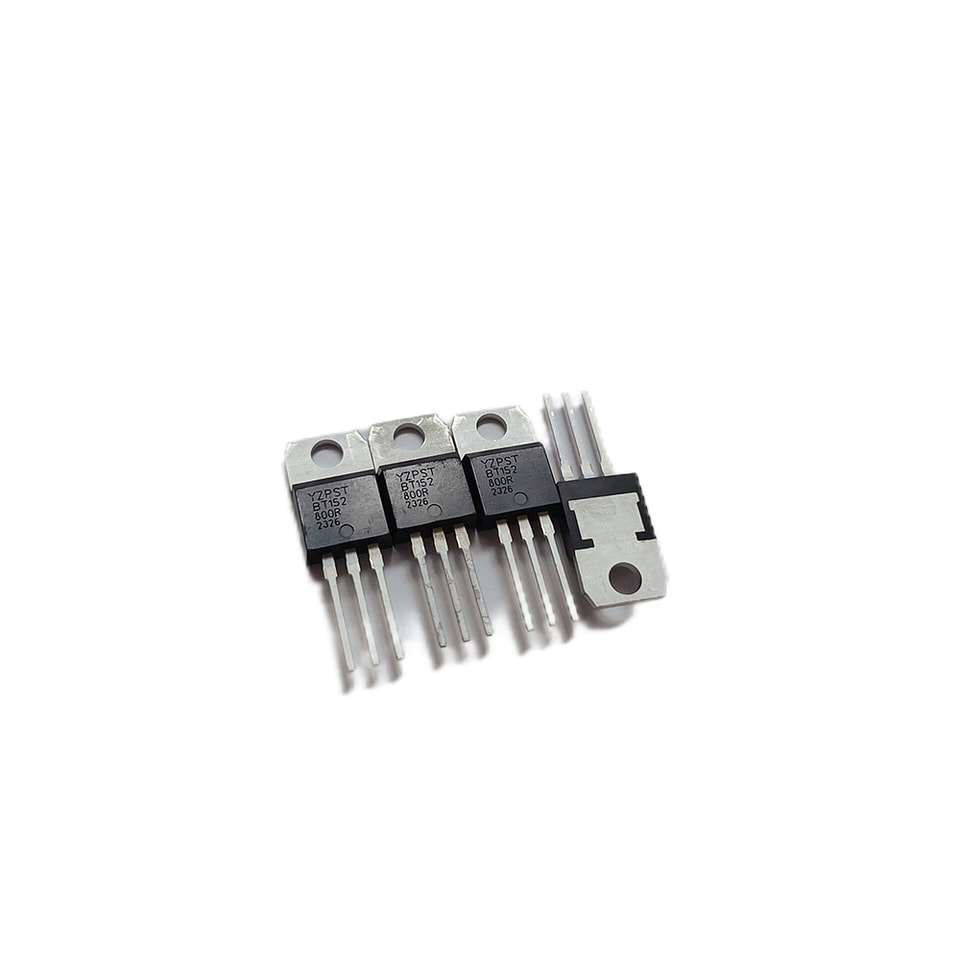

| BT152-800R | ТИРИСТОР | 20 | 13 | 800 | 300 | - | 32 | TO-220 | NXP | E |
| MCR25D | ТИРИСТОР | 25 | 16 | 400 | 250 | - | 12 | TO-220 | ON SEMI | E |
| S8025R | ТИРИСТОР | 25 | 16 | 800 | 200 | 35 | 30 | TO-220 | TECCOR | E |
| 2N692 | ТИРИСТОР | 25 | 16 | 800 | - | - | 40 | TO-48 | MOTOROLA | G |
| K16RIA120 * | ТИРИСТОР | 25 | 16 | 1200 | 500 | 20 | 100 | TO-48 | JEENDA | G |
| BTW68-800 # | ТИРИСТОР | 30 | 19 | 800 | 500 | 100 | 50 | TO-3P | STM | W |
| BTW68-1200 # | ТИРИСТОР | 30 | 19 | 1200 | 500 | 100 | 50 | TO-3P | STM | W |
| 16RIA60 | ТИРИСТОР | 35 | 16 | 600 | 100 | 110 | 60 | TO-48 | внутр. выпр. | G |
| 16RIA120 | ТИРИСТОР | 35 | 16 | 1200 | 100 | 110 | 60 | TO-48 | внутр. выпр. | E |
| S8040R | ТИРИСТОР | 40 | 25 | 800 | 500 | 35 | 40 | TO-220 | TECCOR | G |
| 25RIA8OM | ТИРИСТОР | 40 | 25 | 800 | 100 | 110 | 40 | TO-48(M6) | внутр. выпр. | E |
| 40TTS12 | ТИРИСТОР | 40 | 25 | 1200 | 500 | 110 | 35 | TO-220 | внутр. выпр. | G |
| 25RIA120 | ТИРИСТОР | 40 | 25 | 1200 | 100 | 110 | 40 | TO-48 | внутр. выпр. | W |
| BTW69-600 # | ТИРИСТОР | 50 | 32 | 600 | 1000 | - | 50 | TO-3P | STM | W |
| CYNA56 1000 # | ТИРИСТОР | 50 | 32 | 1000 | 1000 | - | 50 | TO-3P | C3 SEMI | W |
| BTW69-1200 # | ТИРИСТОР | 50 | 32 | 1200 | 1000 | - | 50 | TO-3P | STM | W |
| S8055M | ТИРИСТОР | 55 | 35 | 800 | 500 | 35 | 40 | TO-3P | TECCOR | W |
| 40TPS12A | ТИРИСТОР | 55 | 35 | 1200 | 1000 | - | 150 | TO-247AC | внутр. выпр. | W |
| S4070WTP | ТИРИСТОР | 70 | 45 | 400 | 650 | 35 | 50 | TO-218X | LITTELFUSE | S |
| S8070W | ТИРИСТОР | 70 | 45 | 800 | 500 | 35 | 50 | TO-218X | LITTELFUSE | S |
| CYNA71-1000 # | ТИРИСТОР | 70 | 50 | 1000 | 1000 | - | 60 | TO-3P | C3 SEMI | W |
| 70TPS12 | ТИРИСТОР | 75 | 70 | 1200 | 500 | - | 100 | SUPER TO-247 | внутр. выпр. | W |
| 70TPS16 | ТИРИСТОР | 75 | 70 | 1600 | 500 | - | 100 | SUPER TO-247 | внутр. выпр. | W |
| 50RIA60 | ТИРИСТОР | 80 | 50 | 600 | 200 | 110 | 100 | TO-65 | I.R./S.ST. | H |
| 50RIA8OM | ТИРИСТОР | 80 | 50 | 800 | 200 | 110 | 100 | TO-65 (M6) | INT. RECT, | H |
| 50RIA120 | ТИРИСТОР | 80 | 50 | 1200 | 200 | 110 | 100 | T0-65 | внутр. выпр. | H |
| K50RIA120* | ТИРИСТОР | 80 | 50 | 1200 | 800 | 20 | 100 | TO-65 | JEENDA | H |
| 80RIA120 | ТИРИСТОР | 125 | 80 | 1200 | 500 | 110 | 120 | TO-94 | внутр. выпр. | K |
| S15CG6B0 | ТИРИСТОР | 140 | 90 | 600 | 700 | 70 | 150 | TO-94 | внутр. выпр. | K |
| T90RIA120 | ТИРИСТОР | 140 | 90 | 1200 | 500 | 110 | 120 | T-M3 | внутр. выпр. | J |
| ST110S12POV | ТИРИСТОР | 175 | 110 | 1200 | 500 | - | 150 | TO-94 | внутр. выпр. | K |
| ST110S16PO | ТИРИСТОР | 175 | 110 | 1600 | 500 | - | 150 | TO-94 | внутр. выпр. | K |
| ST173512PFPO * | ТИРИСТОР | 275 | 175 | 1200 | 500 | 25 | 200 | TO-93 | внутр. выпр. | L |
| ST173512PFKO * | ТИРИСТОР | 275 | 175 | 1200 | 200 | 20 | 200 | TO-93 | внутр. выпр. | L |
| ST180S12POV | ТИРИСТОР | 314 | 200 | 1200 | 500 | 100 | 150 | TO-93 | внутр. выпр. | L |
| ST180516PO | ТИРИСТОР | 314 | 200 | 1600 | 1000 | - | 150 | TO-93 | внутр. выпр. | L |
| ST230512POV | ТИРИСТОР | 361 | 230 | 1200 | 500 | - | 150 | TO-93 | внутр. выпр. | L |
| ST230S16PO | ТИРИСТОР | 361 | 230 | 1600 | 500 | - | 150 | TO-93 | внутр. выпр. | L |
| 300RA20 | ТИРИСТОР | 470 | 300 | 200 | 500 | 120 | 150 | A-6 | внутр. выпр. | N |
| ST300512PO | ТИРИСТОР | 470 | 300 | 1200 | 500 | 100 | 100 | TO-118 | внутр. выпр. | M |
| ST303512PFKO * | ТИРИСТОР | 471 | 300 | 1200 | 500 | 25 | 200 | TO-118 | внутр. выпр. | M |
| ST330S12PO | ТИРИСТОР | 520 | 330 | 1200 | 500 | 100 | 200 | TO-118 | внутр. выпр. | M |
| ST330S16PO | ТИРИСТОР | 520 | 330 | 1600 | 500 | 100 | 200 | TO-118 | внутр. выпр. | M |
| ST173C12CFK0 * | ТИРИСТОР | 610 | 330 | 1200 | 200 | 20 | 200 | TO-200AB | внутр. выпр. | O |
| T35KEEA-1600 * | ТИРИСТОР | 640 | 400 | 1600 | - | 35 | 250 | A-29 | JEENDA | Q |
| ST230C16C1L | ТИРИСТОР | 780 | 410 | 1600 | 1000 | 100 | 150 | TO-200AB | внутр. выпр. | O |
| T38KEE-1800 * | ТИРИСТОР | 800 | 500 | 1800 | - | 35 | 250 | TO-200AC | JEENDA | P |
| T40KEE-1800 * | ТИРИСТОР | 940 | 600 | 1800 | - | 35 | 300 | TO-200AC | JEENDA | P |
| S38BF12B * | ТИРИСТОР | 980 | 625 | 1200 | 700 | 20 | 150 | TO-200AC | внутр. выпр. | P |
| ST303C12CFK0 * | ТИРИСТОР | 1180 | 620 | 1200 | 200 | 20 | 200 | TO-200AB | внутр. выпр. | O |
| ST303C12CFJ1 * | ТИРИСТОР | 1180 | 620 | 1200 | 200 | 25 | 200 | TO-200AB | внутр. выпр. | O |
| ST300C16C0 | ТИРИСТОР | 1290 | 650 | 1600 | 500 | 100 | 200 | TO-200AB | внутр. выпр. | O |
| ST330C16C1L | ТИРИСТОР | 1420 | 720 | 1600 | 1000 | 100 | 200 | TO-200AB | внутр. выпр. | O |
| T8261275B3DH * | ТИРИСТОР | 1524 | 970 | 1200 | 300 | 20 | 200 | TO-200AC | POWEREX | P |
| ST650C24L1 | ТИРИСТОР | 1557 | 790 | 2400 | 500 | 200 | 100 | TO-200AC | внутр. выпр. | P |
| C712PM * | ТИРИСТОР | 1700 | 1000 | 1600 | 500 | 55 | 120 | A-24 | POWEREX | R |
| T50KEE-1800 * | ТИРИСТОР | 1700 | 1000 | 1800 | - | 35 | 500 | A-24 | JEENDA | R |
| ST700C16L0 | ТИРИСТОР | 1857 | 910 | 1600 | 500 | 150 | 200 | TO-200AC | внутр. выпр. | P |
| ST700C20L0 | ТИРИСТОР | 1857 | 910 | 2000 | 500 | 150 | 200 | TO-200AC | внутр. выпр. | P |
| ST730C16L1L | ТИРИСТОР | 2000 | 990 | 1600 | 1000 | 150 | 200 | TO-200AC | внутр. выпр. | P |
| T9G0161203DH | ТИРИСТОР | 2790 | 1780 | 1600 | 300 | 350 | 200 | A-24 | POWEREX | R |
| ST1200C16K1L | ТИРИСТОР | 3080 | 1650 | 1600 | 500 | 200 | 200 | A-24 | внутр. выпр. | R |
| ST1200C20K0 | ТИРИСТОР | 3080 | 1650 | 2000 | 500 | 200 | 200 | A-24 | внутр. выпр. | R |
.jpg)
Силовые полупроводниковые приборы, защитные компоненты и промышленные решения в области электропитания.
