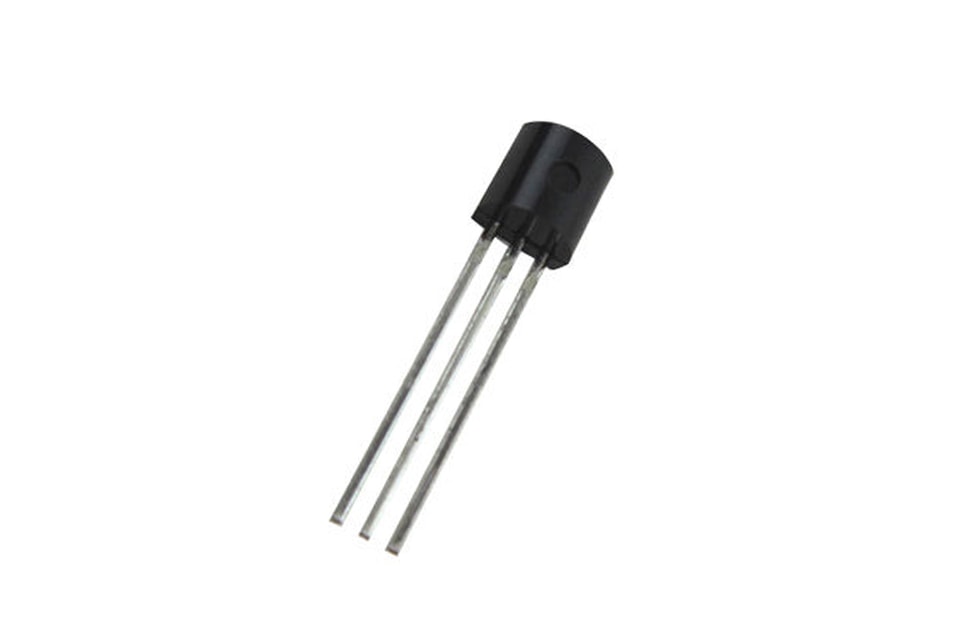

YZPST-X0206
Совет: укажите артикул, требуемые напряжение/ток и условия применения.
Загрузки и технические файлы
Особенности
● IT(AV):0,8 А ● IGT：200μA● Тип с стеклянной пассивацией ● Неизолированный тип
Области применения
● Защитный выключатель утечки, таймер и газовый розжигатель ● Регулятор температуры
Предельные параметры(Ta=25℃)
Параметр | Обозначение | Класс напряжения | Ед. изм. | |
-6 | -8 | |||
Повторяющееся пиковое обратное напряжение | VRRM | 600 | 800 | V |
Повторяющееся пиковое напряжение в закрытом состоянии | VDRM | 600 | 800 | V |
Действующее значение тока в открытом состоянии | IT (RMS) | 1.25 | A | |
Средний ток в открытом состоянии | IT (AV) | 0.8 | A | |
Импульсный ток во включенном состоянии | ITSM | 22.5 | A | |
I2tдля плавких предохранителей | I2t | 2.5 | A2s | |
Средняя рассеиваемая мощность затвора | PG (AV) | 0.2 | W | |
Максимальное обратное напряжение затвора | VRGM | 8 | V | |
Пиковый прямой ток затвора | IFGM | 1.2 | A | |
Температура перехода | Tj | –40 до +125 | °C | |
Температура хранения | Tstg | –40 до +150 | °C | |
Электрические характеристики
Параметр | Обозначение | Мин. | Тип. | Макс. | Ед. изм. | Условия испытаний |
Повторяющийся пиковый обратный ток | IRRM | — | — | 0.5 | мА | Tj = 125°C, VRRM50Hz/60Hz синусоидальной формы сигнала в |
Повторяющийся пиковый ток в выключенном состоянии | IDRM | — | — | 0.5 | мА | Tj = 125°C, VDRMприменено, RGK = 1 kÙ |
Напряжение в открытом состоянии | VTM | — | — | 1.45 | V | Ta = 25°C, ITM = 2.5A |
Пороговое напряжение на затворе | VGT | — | — | 0.8 | V | Tj = 25°C, VD = 12 V, RL = 140Ù |
Непороговое напряжение на затворе | VGD | 0.1 | — | — | V | Tj = 125°C, VD = VDRM,RGK = 1 kÙ |
Ток срабатывания затвора | IGT | 20 | — | 200 | μA | Tj = 25°C, VD = 12 V, RL = 140Ù |
Ток удержания | IВ | — | — | 5 | мА | Tj = 25°C, VD = 12 V,RGK = 1 kÙ |
Тепловое сопротивление | Rth (j-a) | — | — | 150 | °C/Вт | Переход-окружающая среда |
Параметр тока срабатывания
Параметр | A | B | C | D | E | F |
IGT (μA) | 20 до 50 | 40 до 80 | 70до 100 | 20 до 80 | 20 до 100 | 100 до 200 |
