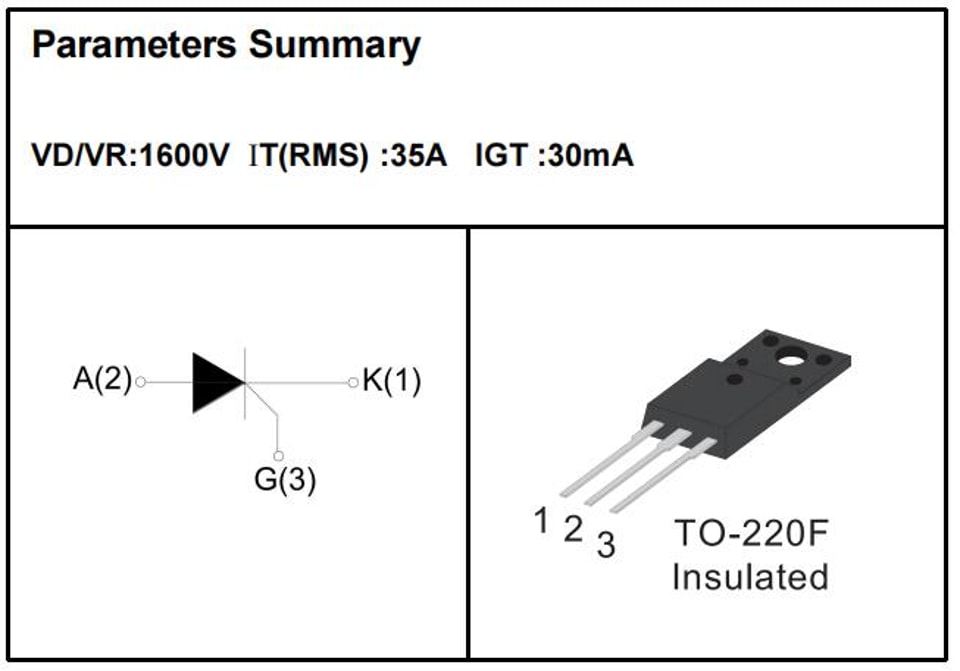

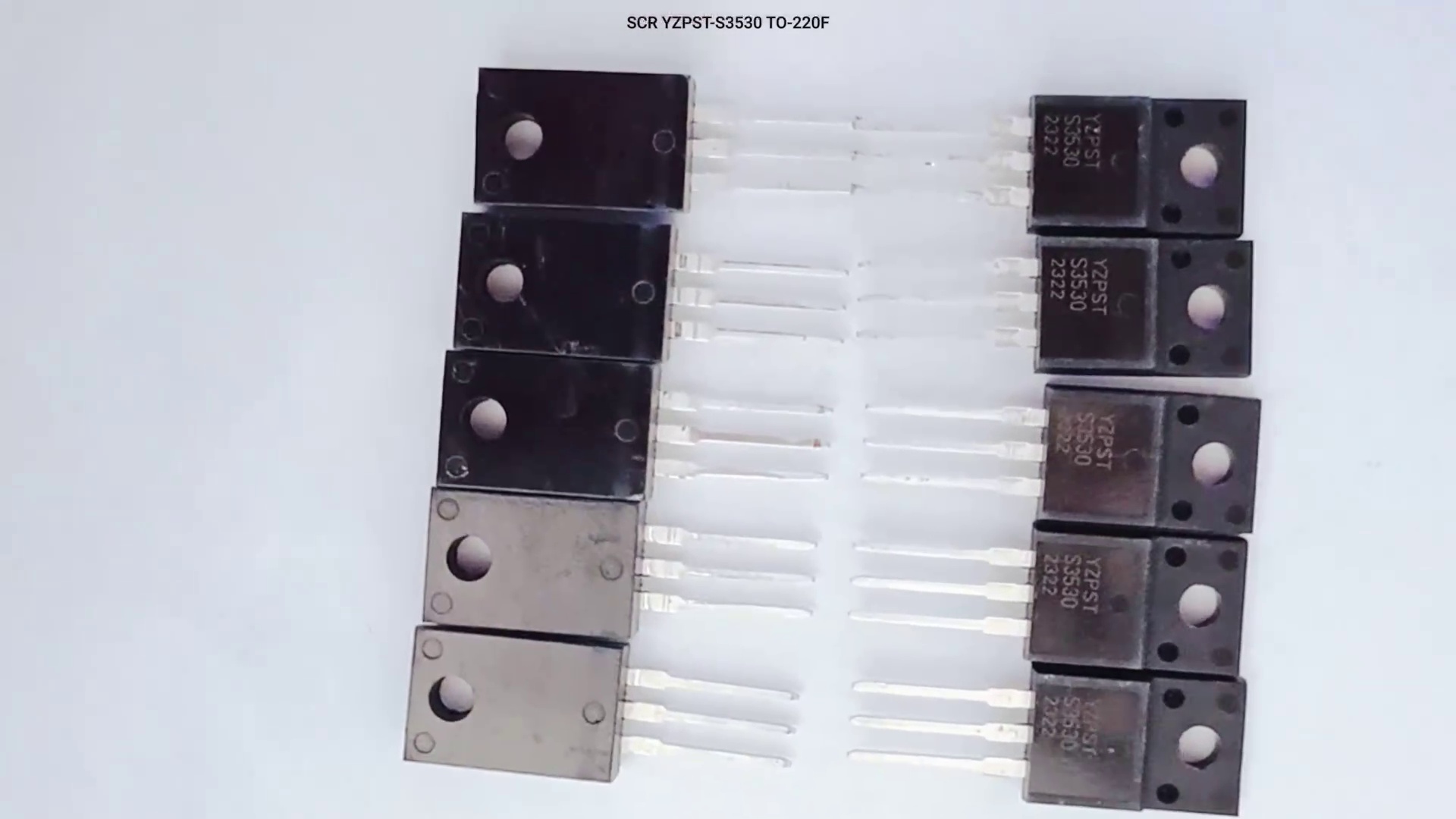

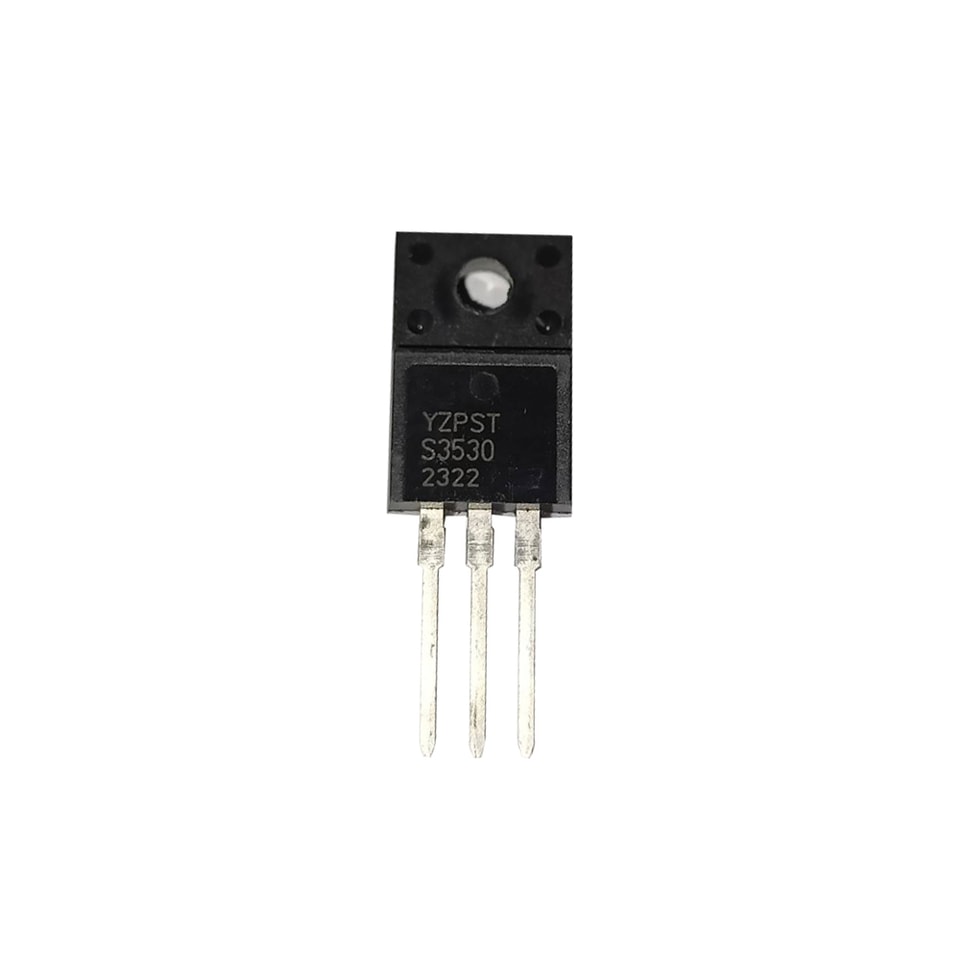

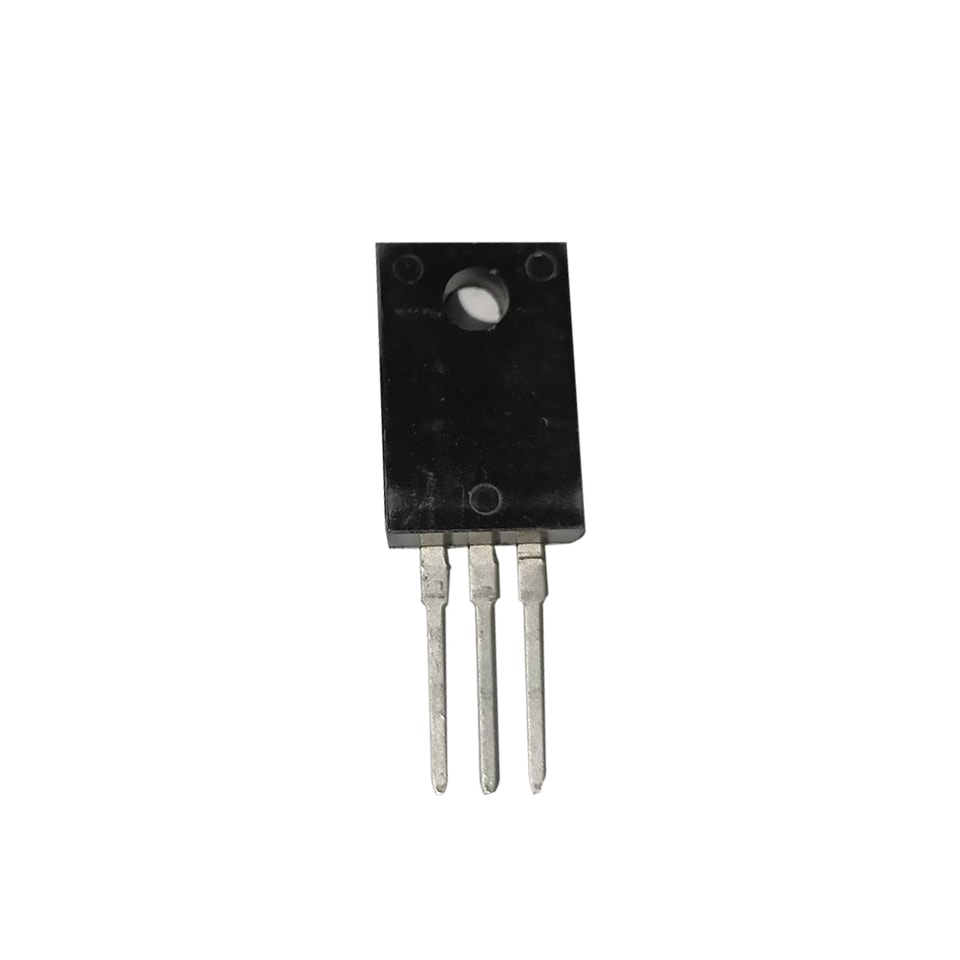

YZPST-S3530
P/N: YZPST-S3530 35A SCRs
ХАРАКТЕРИСТИКИ
Высокая тепловая цикличность
Высокая напряженность
Очень высокая способность к токовым импульсам
ПРИМЕНЕНИЯ
Линейное выпрямление 50/60 Гц
Плавный пуск управления переменным током
Управление постоянным током
Преобразователь энергии
Управление переменным током
Освещение и контроль температуры
P/N: YZPST-S3530 35A SCRs
FEATURES
High thermal cycling performance
High voltage capacity
Very high current surge capability
APPLICATIONS
Line rectifying 50/60 Hz
Softstart AC motor control
DC Motor control
Power converter
AC power control
Lighting and temperature control
|
ABSOLUTE MAXIMUM RATINGS |
|||
|
Parameter |
Symbol |
Value |
Unit |
|
Storage junction temperature range |
Tstg |
-40 ~ 150 |
℃ |
|
Operating junction temperature range |
Tj |
-40~ 125 |
℃ |
|
Repetitive peak off-state voltage (T =25℃) |
VDRM |
1600 |
V |
|
Repetitive peak reverse voltage (T =25℃) |
VRRM |
1600 |
V |
|
Non repetitive surge peak Off-state voltage |
VDSM |
VDRM +100 |
V |
|
Non repetitive peak reverse voltage |
VRSM |
VRRM +100 |
V |
|
RMS on-state current (T = 110℃) |
IT(RMS) |
35 |
A |
|
Non repetitive surge peak on-state current (180° conduction angle, F=50Hz) |
ITSM |
300 |
A |
|
Average on-state current (180° conduction angle) |
IT(AV) |
23 |
A |
|
I2t value for fusing (tp= 10ms) |
I2t |
450 |
A2 S |
|
Critical rate of rise of on-state current (I =2×IGT, tr ≤ 100 ns) |
dI/dt |
50 |
A/μS |
|
Peak gate current |
IGM |
4 |
A |
|
Average gate power dissipation |
PG(AV) |
1 |
W |
|
Thermal Resistances |
|||
|
Symbol |
Parameter |
Value |
Unit |
|
Rth(j-c) |
Junction to case (DC) |
2.5 |
℃/W |
|
ELECTRICAL CHARACTERISTICS (T=25℃unless otherwise specified) |
||||
|
Symbol |
Test Condition |
|
Value |
Unit |
|
IGT |
V = 12V R = 140Ω |
MAX. |
30 |
mA |
|
VGT |
MAX. |
1.3 |
V |
|
|
VGD |
VD=VDRM Tj= 125℃ |
MIN. |
0.2 |
V |
|
IL |
IG= 1.2IGT |
MAX. |
160 |
mA |
|
IH |
IT=500mA |
MAX. |
120 |
mA |
|
dV/dt |
VD=2/3VDRM Gate Open Tj=125℃ |
MIN. |
500 |
V/μs |
| STATIC CHARACTERISTICS | ||||
| Symbol | Parameter | Value(MAX.) | Unit | |
| VTM | ITM =35A tp=380μs | Tj =25℃ | 1.5 | V |
| IDRM | VD=VDRM VR=VRRM | Tj =25℃ | 20 | μA |
| IRRM | Tj =125℃ | 4 | mA | |

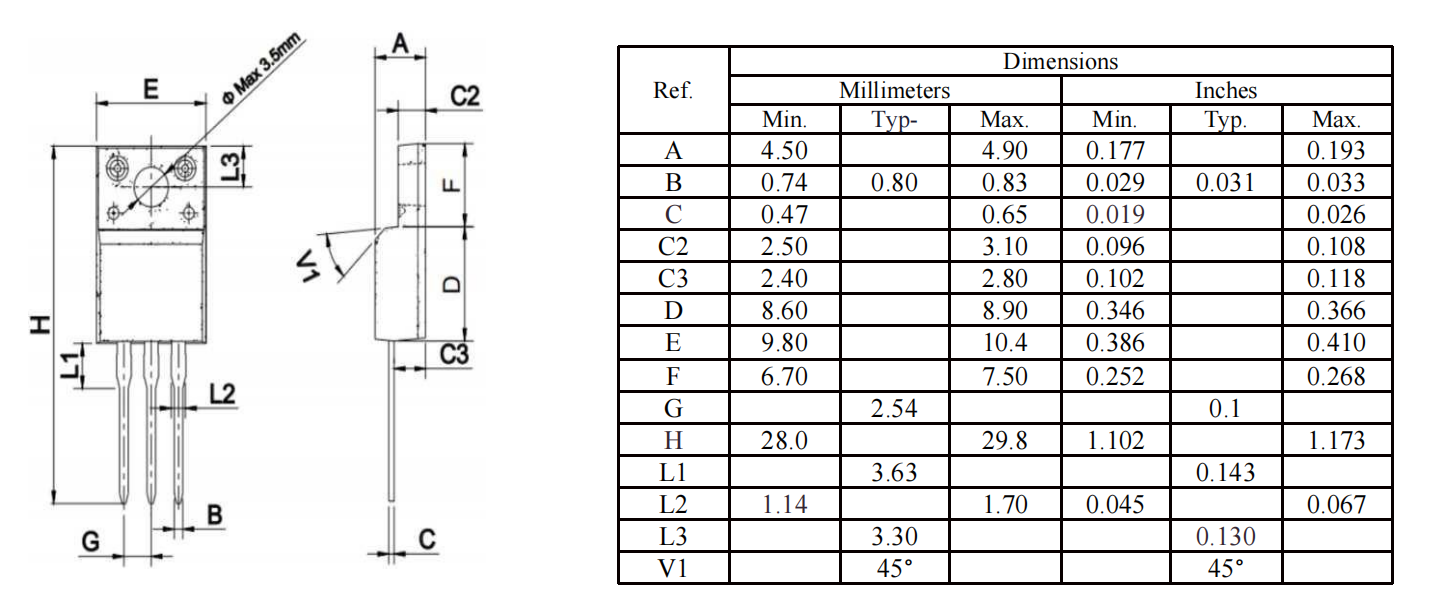

TO-220F Package Mechanical Data
