YZPST-BTA12-600SW
Совет: укажите артикул, требуемые напряжение/ток и условия применения.
Загрузки и технические файлы
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured
Одномезационная структура (Single Mesa),
Процесс стеклянной пассивации
Стабильность по напряжению
Устойчивость к сильным броскам тока
Подходящая модель: BTA12
Основное назначение
Стиральные машины, выпрямители для волос
Твердотельное реле, управление скоростью двигателя переменного тока

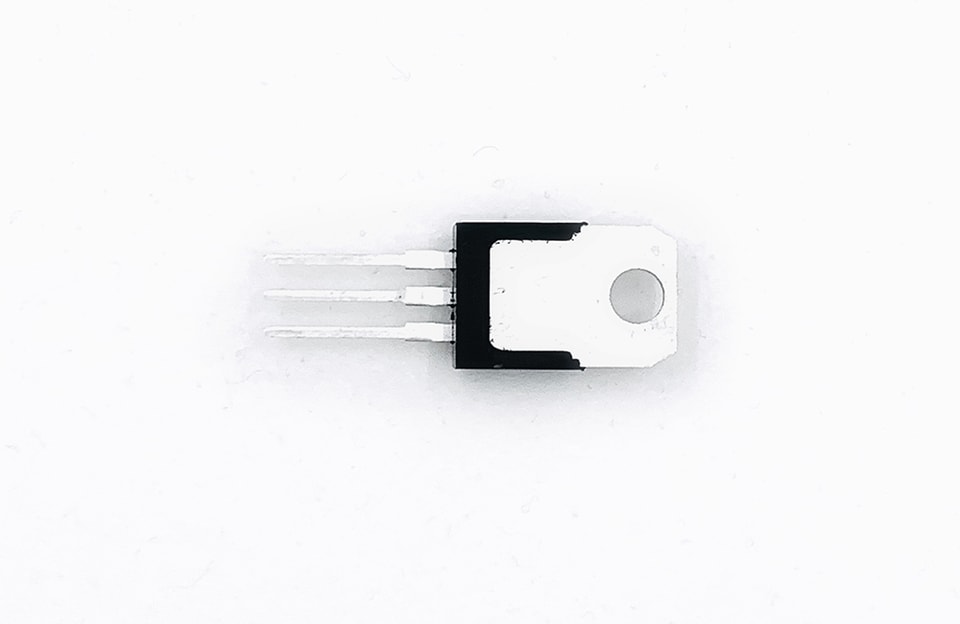

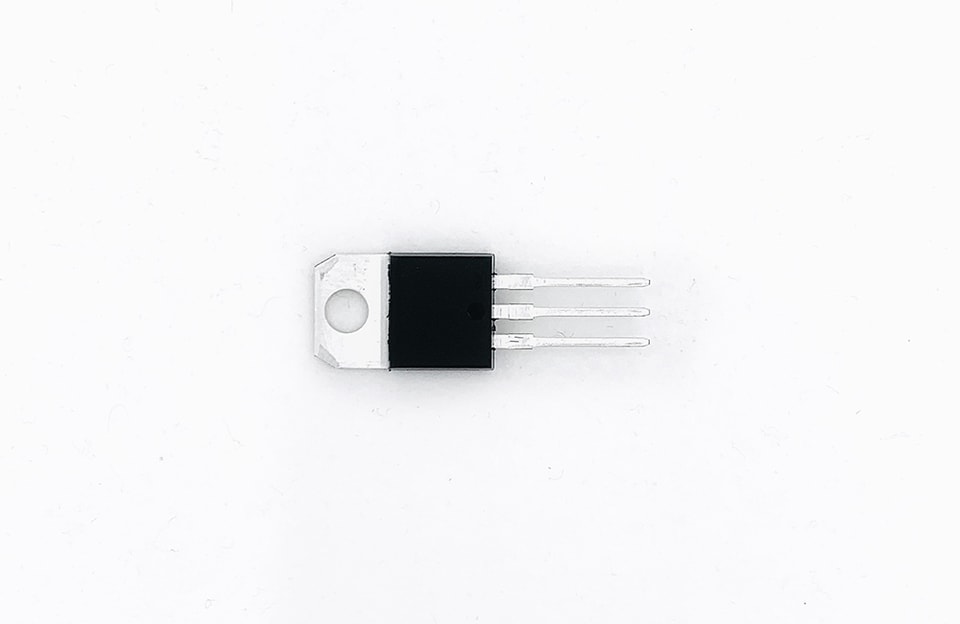

Корпус
TO-220A
Обозначение | Значение | Ед. изм. |
IT(RMS) | 12 | A |
VDRM / VRRM | 600/800 | V |
VTM | 1.55 | V |
Обозначение | Параметр | Значение | Ед. изм. |
ITSM | Пиковое неповторяющееся импульсное прямое состояние Ток (tp=10 мс) | 115 | A |
I2t | (tp=10 мс) | 70 | A²·с |
dI/dt | IG=2IGT，tr≤100ns,Tj=125℃ | 50 | A/μs |
IGM | Пиковый ток затвора (tp=20 мкс) | 4 | A |
PG(AV) | Средняя мощность затвора | 1 | W |
Tstg Tj | Температура хранения Температура перехода при работе | -40--+150 -40—+125 | ℃ |
Обозначение | Параметр | Значение | Ед. изм. | |
Rth (j-c) | Переход-корпус | TO-220A | 2.3 | ℃/W |
TO-220B/TO-220C | 1.4 | |||
TO-220F | 3.9 |
Обозначение | Условия испытаний | Значение | Ед. изм. | ||||||
TW | SW | CW | BW | C | B | ||||
IGT | VD=12V, RL=30Ω | ⅠⅡⅢ | ≤5 | ≤10 | ≤25 | ≤50 | ≤25 | ≤50 | мА |
Ⅳ | ---- | ---- | ---- | ---- | ≤50 | ≤100 | |||
IDRM | VD=VDRM | Tj=25℃ | ≤5 | мкА | |||||
Tj=125℃ | ≤1 | мА | |||||||
IRRM | VD=VRRM | Tj=25℃ | ≤5 | мкА | |||||
Tj=125℃ | ≤1 | мА | |||||||
IL | IG=1.2IGT | ⅠⅢ | ≤10 | ≤25 | ≤50 | ≤70 | ≤40 | ≤50 | мА |
Ⅳ | ---- | ---- | ---- | ---- | ≤40 | ≤50 | |||
Ⅱ | ≤15 | ≤30 | ≤60 | ≤80 | ≤80 | ≤100 | |||
VGT | VD=12V ,RL=30Ω | ≤1.3 | V | ||||||
VGD | VD=VDRM, Tj=125℃RL=3.3KΩ | ≥0.2 | V | ||||||
VTM | ITM=17A,tp=380μs | 1.55 | V | ||||||
IH | VD=12V，IT=200mA | ≤20 | ≤25 | ≤35 | ≤50 | ≤25 | ≤50 | мА | |
dV/dt | VD=67%VDRM, GateOpen, Tj=125℃ | ≥40 | ≥100 | ≥400 | ≥1000 | ≥200 | ≥400 | В/мкс | |
