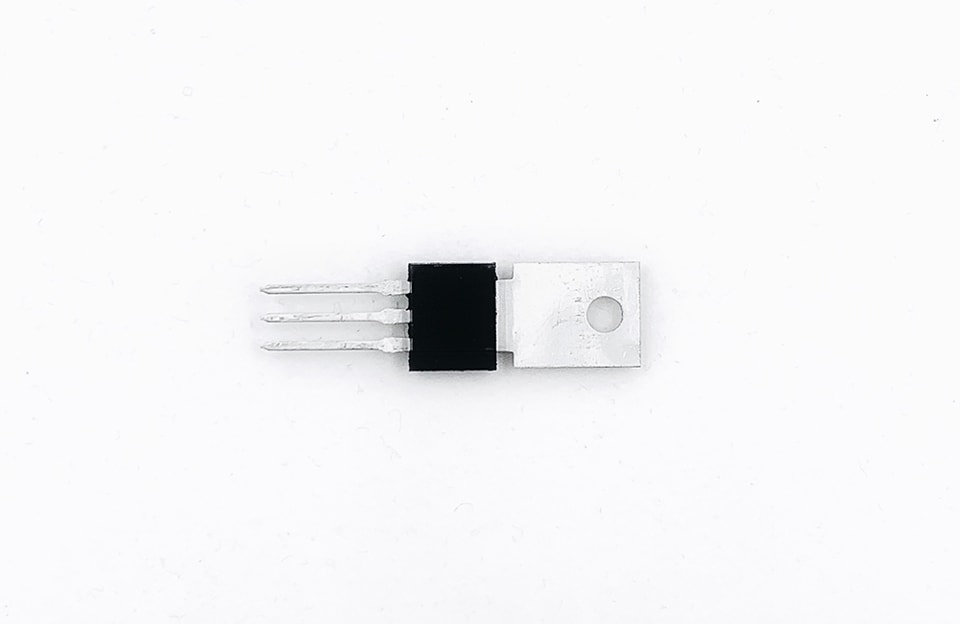

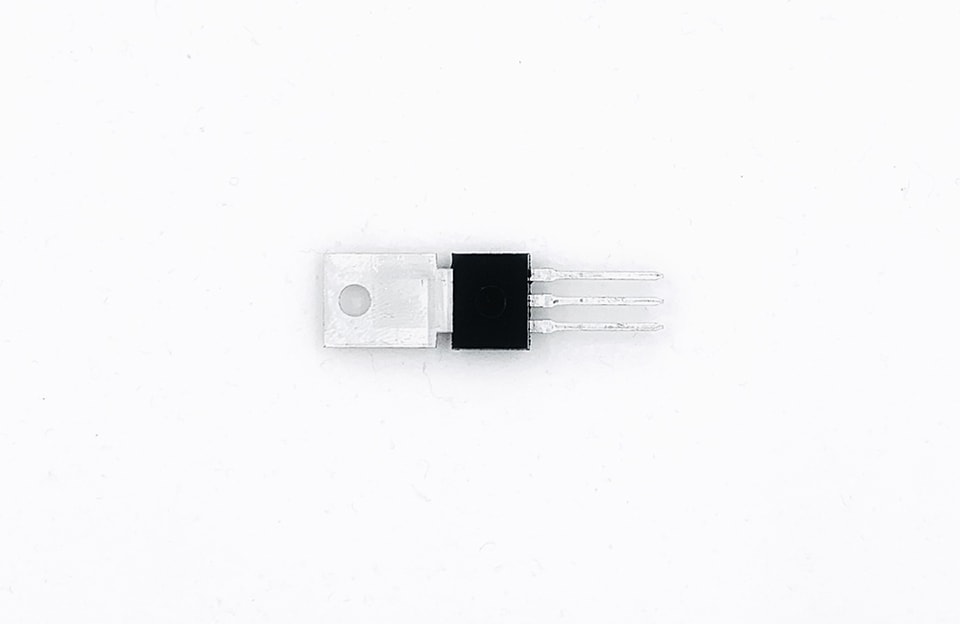

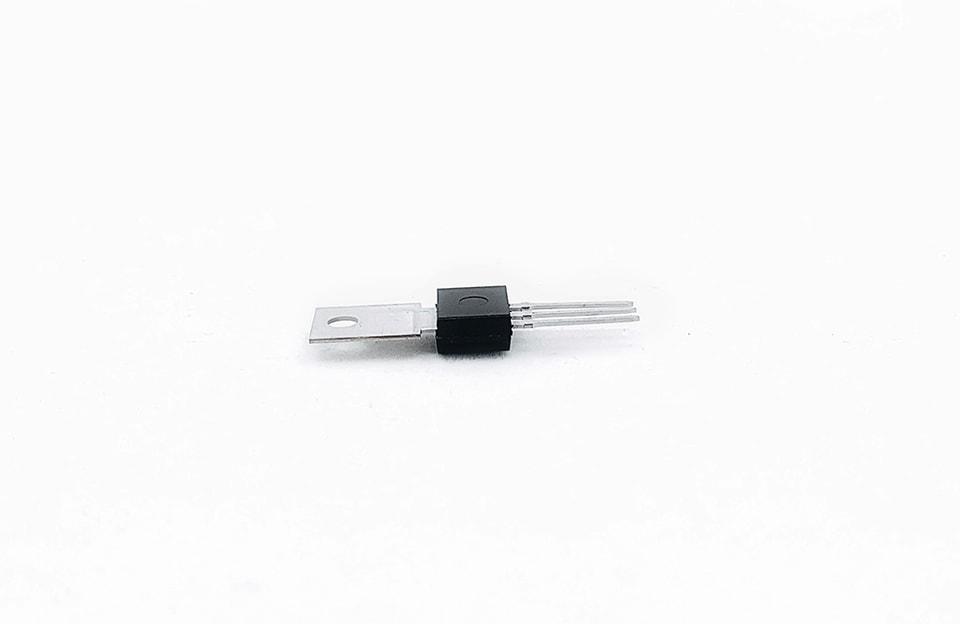

YZPST-X0405 (с радиатором)
Совет: укажите артикул, требуемые напряжение/ток и условия применения.
Загрузки и технические файлы
Благодаря высокой чувствительности по уровню запуска серия SCR X0405 подходит для всех применений, где доступный ток управления затвора ограничен, например для прерывателей цепи при замыкании на землю, защиты от перенапряжения типа crowbar в маломощных источниках питания и конденсаторных схем зажигания.
Обозначение | Значение | Ед. изм. |
IT(RMS) | 4.0 | A |
VDRM VRRM | 600 | V |
IGT | 200 | µA |
Параметр | Обозначение | Значение | Ед. изм. |
Диапазон температуры перехода при хранении | Tstg | -40 ~150 | ℃ |
Диапазон рабочей температуры перехода | Tj | -40~125 | ℃ |
Повторяющееся пиковое напряжение в закрытом состоянии (T =25℃) | VDRM | 600 | V |
Повторяющееся пиковое обратное напряжение (T =25℃) | VRRM | 600 | V |
Неповторяющееся импульсное пиковое напряжение в закрытом состоянии | VDSM | VDRM +100 | V |
Неповторяющееся пиковое обратное напряжение | VRSM | VRRM +100 | V |
Действующее значение тока в открытом состоянии (T =60℃) | IT(RMS) | 4.0 | A |
Неповторяющийся пиковый импульсный ток в открытом состоянии (угол проводимости 180°, F=50Hz) | ITSM | 30 | A |
Средний ток в открытом состоянии (угол проводимости 180°) | IT(AV) | 2.5 | A |
Значение I²t для плавкой защиты (tp=10ms) | I2t | 4.5 | А2с |
Критическая скорость нарастания тока в открытом состоянии (I =2×IGT, tr ≤ 100 ns) | dI/dt | 50 | А/мкс |
Пиковый ток затвора | IGM | 1.2 | A |
Средняя рассеиваемая мощность затвора | PG(AV) | 0.2 | W |
Обозначение | Условия испытаний | Значение | Ед. изм. | |
IGT | V =12V R =140Ω | МАКС. | 200 | µA |
VGT | МАКС. | 0.8 | V | |
VGD | VD=VDRM Tj=125℃ R=1KΩ | МИН. | 0.1 | V |
IL | IG=1.2IGT | МАКС. | 6 | мА |
IH | IT=50mA | МАКС. | 5 | мА |
dV/dt | VD=2/3VDRM Gate Open Tj=125℃ | МИН. | 15 | В/мкс |
СТАТИЧЕСКИЕ ХАРАКТЕРИСТИКИ
Обозначение | Параметр | Значение (макс.) | Ед. изм. | |
VTM | ITM =8,0A tp=380мкс | Tj =25℃ | 1.8 | V |
IDRM | VD=VDRM VR=VRRM | Tj =25℃ | 5 | мкА |
IRRM | Tj =125℃ | 1 | мА | |
Тепловые сопротивления
| Обозначение | Параметр | Значение (макс.) | Ед. изм. |
Rth(j-a) | переход — окружающая среда | 60 | ℃/Вт |
Rth(j-t) | Переход — вывод (постоянный ток) | 20 |
Схема информации для заказа
YZPST может предоставить следующий список аналогов SCR и симистор.
2P4M | BT2588 | Q6006 | SCF6C60 | TS820 |
2P6M | BY169 | Q8006 | S6012 | TS420 |
25TTS16 | BT169 | Q6008 | S8012 | TYN612 |
40TPS16 | BT151S | Q8008 | S8016 | TYN616 |
70TPS16 | BT148W | Q6010 | SCF25C60 | TYN816 |
BT148S | Q8010 | S6025 | TYN620 | |
CR08AS | BT151 | Q6016 | S8025 | TYN820 |
C106 | BT152 | Q8016 | SK025 | TYN1025 |
CS30 | BTW69 | Q6025 | S6035 | TYN1225 |
CS45 | BT131 | Q8025 | S8035 | TYN630 |
CS60-16i01 | BT134 | QK025 | SK035 | TYN830 |
BT136 | Q6040 | S6040 | TYN640 | |
MCR100-6 | BCR2PM | Q8040 | S8040 | TYN840 |
MCR100-8 | BTA01 | QK040 | S6055 | T405 |
MCR706 | BTB04 | S8055 | T410 | |
MCR72-6/8 | BTA06 | SK055 | T435 | |
MCR22 | BTB06 | STN1A60 | T805 | |
MAC97A6 | BTA08 | STN1A80 | T810 | |
MAC97A8 | BTB08 | STF4A60 | T835 | |
BT137 | STF6A60 | TMG8C60 | ||
FS0102MA | BTA10 | STF08 | TMF12C60 | |
BTB10 | STF12A60 | T1235 | ||
X0405 | BTA16 | TMG16C60 | ||
X0805 | BTB16 | TIC246 | ||
X0205 | BT139 | T1620 | ||
BTA216 | T1635 | |||
Z00607 | BTA20 | TMG20C60 | ||
Z0103 | BTB20 | T2535 | ||
Z0107 | BTA24 | TMG25CQ60 | ||
Z0405 | BTB24 | |||
Z0409 | BTA140 | |||
BTA26 | ||||
BTB26 | ||||
BTA41 | ||||
BTB41 |
TN1215-600H | T835-600G | T1235H6G | Z00607MN |
TN1215T-600B | T810T-61 | T1250H6G | Z00607MA |
TN1215-600B | T835T-61 | T1235H6I | Z0103MN |
TYN612MFP | T830-600W | T1250H6I | Z0107MN |
TN1215-800H | TXDV608 | T1235H6T | Z0109MN |
TN1215-800B | T810-800H | T1250H6T | Z0103MA |
TYN812 | T835-800H | T1235T-8T | Z0107MA |
TYN610 | T810-800B | T1235T-8FP | Z0109MA |
TYN810 | T835-800B | T1635H6G | Z0405MF |
TYN612T | T810-800G | T1650H6G | Z0409MF |
TYN612M | T835-800G | T1635H6I | Z0410MF |
TN1215-600G | T830-800W | T1650H6I | Z0405NF |
TN1215-800G | T830-8FP | T1635H6T | Z0409NF |
TN1625-600G | TXDV808 | T1650H6T | Z0410NF |
TN1625-800G | T1210-600G | T1625T-8I | |
TN2540-600G | T1235-600G | T1635T-8I | ACS102-6TA |
TXN625 | T1250-600G | T1635T-8T | ACS108-6SN |
TYN625 | T1210T-6I | T1635T-8FP | ACS110-7SN |
TN2540-800G | T1235T-6I | T2035H6G | ACS108-6SA |
TXN825 | TXDC612 | T2050H6G | ACST210-8B |
TYN825 | T1210-800G | T2035H6I | ACST210-8FP |
TYN1225 | T1235-800G | T2050H6I | ACST410-8B |
TYN640 | T1250-800G | T2035H6T | ACST310-8B |
TYN840 | T1610-600G | T2050H6T | ACST435-8B |
T405-600H | T1635-600G | T3035H6I | ACST410-8FP |
T410-600H | T1610T-6I | T3050H6I | ACST310-8FP |
T435-600H | T1635T-6I | T3035H6T | ACST435-8FP |
T405-600B | T1620-600W | T3050H6T | ACST830-8T |
T410-600B | T1630-600W | ACST830-8FP | |
T435-600B | T1610-800G | TYN16-600CT | ACST1010-7T |
T405-600T | T1635-800G | TYN16-600RT | ACST1035-7T |
T410-600T | T1620-800W | TYN16X-600CT | ACST1010-7FP |
T435-600T | T1630-800W | TYN16X-600RT | ACST1035-7FP |
T405-600W | T2535-600G | TYN16-800RT | ACST1210-7T |
T410-600W | T2535-800G | TYN16X-800RT | ACST1235-7T |
T435-600W | T2550-12G | TYN20X-T | ACST163S-8FP |
T435T-600FP | T2550-12T | ||
T405-800H | T405Q-600H | MAC97A6 | ACT108W-600D |
T410-800H | T405Q-600B | MAC97A8 | ACT108-600D |
T435-800H | T635T-8T | MAC223A8X | ACT108W-600E |
T405-800B | T635T-8FP | MAC223A6 | ACTT2S-800E |
T410-800B | T835H6G | ACTT2X-800E | |
T435-800B | T850H6G | ACTT4S-800E | |
T405-800T | T835H6T | ACTT4S-800C | |
T410-800T | T835H6I | ACTT8B-800C0 | |
T435-800T | T850H6I | ACTT8-800C0 | |
T405-800W | T835T-8T | ACTT8X-800C0 | |
T410-800W | T850H6T | ACTT10-800C | |
T435-800W | T835T-8FP | ACTT10X-800C | |
T810-600H | ACTT12B-800C | ||
T835-600H | ACTT12-800C | ||
T810-600B | ACTT12X-800C | ||
T835-600B | ACT108-600E | ||
T810-600G |
BT151U-650C | BTA204X-800E | BTA212-600B | BTA216-600BT |
BT151U-500C | BTA204X-800C | BTA312-600B | BTA316-600B |
BT151S-650R | BTA204X-800B | BTA212X-600D | BTA316-600B0 |
BT151S-500R | BTA206-800ET | BTA312X-600D | BTA216X-600E |
BT151B-650R | BTA206-800CT | BTA212X-600E | BTA316X-600E |
BT151-650R/L | BTA206X-800ET | BTA312X-600E | BTA216X-600F |
BT151-500R/L | BTA206X-800CT | BTA212X-600F | BTA316X-600C |
BT151-650C | BTA208S-600D | BTA312X-600C | BTA216X-600B |
BT151X-500R | BTA208S-600E | BTA212X-600B | BTA316X-600B |
BT151X-650R | BTA208S-600F | BTA312X-600B | BTA316B-800E |
BT151U-800C | BTA208S-600B | BTA212B-800D | BTA316B-800C |
BT151S-800R | BTA208B-1000C | BTA212B-800E | BTA216B-800B |
BT151B-800R | BTA208-600D | BTA312B-800E | BTA316B-800B |
BT151-800R | BTA208-600E | BTA212B-800F | BTA416Y-800C |
BT151X-800R | BTA208-600F | BTA312B-800C | BTA416Y-800B |
BT152-600R | BTA208-600B | BTA212B-800B | BTA316-800E |
BT152-400R | BTA208X-600D | BTA312B-800B | BTA316-800C |
BT152-500RT | BTA208X-600E | BTA312Y-800C | BTA216-800B |
BT152X-600R | BTA208X-600F | BTA412Y-800B | BTA316-800B |
BT152-800R | BTA208X-600B | BTA412Y-800C | BTA316X-800E |
BT152X-800R | BTA208S-800E | BTA212-800D | BTA316X-800C |
BT145-800R | BTA208S-800F | BTA212-800E | BTA216X-800B |
BT155K-1200T | BTA208S-800B | BTA312-800E | BTA316X-800B |
BTA204W-600D | BTA208-800D | BTA212-800F | BTA420Y-800CT |
BTA204W-600E | BTA208-800E | BTA312-800C | BTA420Y-800BT |
BTA204W-600C | BTA208-800C | BTA212-800B | BTA420-800CT |
BTA204W-600B | BTA208-800B | BTA312-800B | BTA420-800BT |
BTA204W-800D | BTA208X-800E | BTA212X-800D | BTA420X-800CT |
BTA201W-800E | BTA208X-800C | BTA212X-800E | BTA420X-800BT |
BTA201W-800C | BTA308X-800C | BTA312X-800E | BTA225B-600B |
BTA201W-800B | BTA208X-800B | BTA212X-800F | BTA225-600B |
BTA204S-600D | BTA308X-800B | BTA312X-800C | BTA225B-800B |
BTA204S-600E | BTA212B-600D | BTA212X-800B | BTA425Y-800CT |
BTA204S-600C | BTA312B-600D | BTA312X-800B | BTA425Y-800BT |
BTA204S-600B | BTA212B-600E | BTA216B-600D | BTA225-800C |
BTA204-600D | BTA312B-600E | BTA216B-600E | BTA225-800B |
BTA204-600E | BTA212B-600F | BTA316B-600E | BTA425X-800BT |
BTA204-600C | BTA312B-600C | BTA216B-600F | BT1308W-400D |
BTA204-600B | BTA212B-600B | BTA316B-600C | BT1308W-600D |
BTA204X-600D | BTA312B-600B | BTA216B-600B | BT131W-600 |
BTA204X-600E | BTA312Y-600C | BTA316B-600B | BT131W-600D |
BTA204X-600C | BTA412Y-600C | BTA416Y-600C | BT134-600E |
BTA204X-600B | BTA412Y-600B | BTA416Y600B | BT134-800D |
BTA204S-800E | BTA212-600D | BTA216-600D | BT134-800E |
BTA204S-800C | BTA312-600D | BTA316-600D | BT134-800 |
BTA204S-800B | BTA212-600E | BTA216-600E | BT136S-600D |
BTA204-800E | BTA312-600E | BTA316-600E | BT136S-600E |
BTA204-800C | BTA212-600F | BTA216-600F | BT136S-600F |
BTA204-800B | BTA312-600C | BTA316-600C | BT136B-600E |
BT234-600D | BTA08-600TW | BTA20-600CW | BTA16-600C |
BT136-600D | BTA08-600SW | BTA20-600BW | BTA16-600B |
BT234-600E | BTA08-600CW | BTB20-600CW | BTB16-600C |
BT136-600E | BTA08-600BW | BTB20-600BW | BTB16-600B |
BT136-600F | BTB08-600TW | BTA20-800CW | BTA16-800C |
BT234X-600D | BTB08-600SW | BTA20-800BW | BTA16-800B |
BT136X-600D | BTB08-600CW | BTB20-800CW | BTB16-800C |
BT136X-600E | BTB08-600BW | BTB20-800BW | BTB16-800B |
BT136X-600F | BTA08-800TW | BTA24-600CW | BTA24-600B |
BT136S-800D | BTA08-800SW | BTA24-600BW | BTB24-600B |
BT136S-800E | BTA08-800CW | BTB24-600CW | BTA24-800B |
BT136B-800E | BTA08-800BW | BTB24-600BW | BTB24-800B |
BT234-800D | BTB08-800TW | BTA24-800CW | BTA25-600B |
BT136-800D | BTB08-800SW | BTA24-800BW | BTA25-800B |
BT234-800E | BTB08-800CW | BTB24-800CW | BTA41-600B |
BT136-800E | BTB08-800BW | BTB24-800BW | BTA40-600B |
BT234X-800D | BTA12-600TW | BTA25-600CW | BTA41-800B |
BT136X-800D | BTA12-600SW | BTA25-600BW | BTA40-800B |
BT234X-800E | BTA12-600CW | BTA25-800CW | |
BT136X-800E | BTA12-600BW | BTA25-800BW | BT137S-600D |
BT236X-600F | BTB12-600TW | BTA26-600CW | BT137S-600E |
BT236X-600G | BTB12-600SW | BTA26-600BW | BT137S-600F |
BT236X-800F | BTB12-600CW | BTA26-800CW | BT137-600E |
BT236X-800G | BTB12-600BW | BTA26-800BW | BT137B-600E |
BTW69-600 | BTA12-800TW | BTB04-600SL | BT137B-600F |
BTW67-600 | BTA12-800SW | BTA06-600C | BT137-600D |
BTW69-800 | BTA12-800CW | BTA06-600B | BT137-600F |
BTW67-800 | BTA12-800BW | BTB06-600C | BT137X-600D |
BTW69-1200 | BTB12-800TW | BTB06-600B | BT137X-600E |
BTW69-1200N | BTB12-800SW | BTA06-800C | BT137X-600F |
BTW67-1200 | BTB12-800CW | BTA06-800B | BT138B-600D |
BTA06-600TW | BTB12-800BW | BTB06-800C | BT138B-600E |
BTA06-600SW | BTA16-600TW | BTB06-800B | BT138B-600F |
BTA06-600CW | BTA16-600SW | BTA08-600C | BT138Y-600E |
BTA06T-600CW | BTA16-600CW | BTA08-600B | BT138-600D |
BTA06-600BW | BTA16-600BW | BT808-600C | BT138-600E |
BTB06-600TW | BTB16-600TW | BTB08-600B | BT138-600F |
BTB06-600SW | BTB16-600SW | BTA08-800C | BT138X-600D |
BTB06-600CW | BTB16-600CW | BTA08-800B | BT138X-600E |
BTB06-600BW | BTB16-600BW | BTB08-800C | BT138X-600F |
BTA06-800TW | BTA16-800TW | BTB08-800B | BT138-800D |
BTA06-800SW | BTA16-800SW | BTA12-600C | BT138-800E |
BTA06-800CW | BTA16-800CW | BTA12-600B | BT138-800F |
BTA06-800BW | BTA16-800BW | BTB12-600C | BT138B-800E |
BTB06-800TW | BTB16-800TW | BTB12-600B | BT138B-800 |
BTB06-800SW | BTB16-800SW | BTA12-800C | BT138Y-800E |
BTB06-800CW | BTB16-800CW | BTA12-800B | BT138-800 |
BTB06-800BW | BTB16-800BW | BTB12-800C | BT138X-800E |
BTB12-800B | BT138X-800 |
BT138X-800F | BT139B-800 | BTA410X-600CT | BTA412Y-800BT |
BT139B-600D | BT139-800D | BTA410X-600BT | BTA412Y-800CT |
BT139B-600E | BT139-800E | BTA410Y-800CT | BTA312-800CT |
BT139B-600F | BT139-800 | BTA410Y-800BT | BTA416Y-600CT |
BT139-600D | BT139X-800D | BTA410-800CT | BTA416Y-600BT |
BT139-600E | BTA140-600 | BTA410-800BT | BTA316-600BT |
BT139-600F | BTA140-600G0 | BTA410X-800CT | BTA416Y-800CT |
BT139X-600D | BTA140-800 | BTA410X-800BT | BTA416Y-800BT |
BT139X-600E | BTA410Y-600CT | BTA312B-600CT | BTA201-800ER |
BT139X-600F | BTA410Y-600BT | BTA412Y-600BT | BTA208X-1000CO |
BT139B-800D | BTA410-600CT | BTA412Y-600CT | BTA308X-1000CO |
BT139B-800E | BTA410-600BT | BTA312-600CT | BTA216Y-800B |
BT139B-800F |
TO-92 |
TO-251(IPAK) |
TO-252(DPAK) |
TO-220 |
TO-220F |
TO-P3 |
TO-247 |
TO-126(SOT-82) |
TO-223 |
TO-202 |
SOT-23 |
SOT-89 |
TO-263(D2PAK) |
| КОД | ДИСПОЗИТИВ | ITRMS (A) | IT AV (A) | VD RMS (V) | dv/dt (В/мкс) | TQ (мкс) | IG (мА) | КОРПУС | МАРКА | РИС. |
| ECG5400 | Тиристор | 0.8 | 0.5 | 30 | 30 | - | 0.2 | TO-92 | PACE | A |
| 2N5061 | Тиристор | 0.8 | 0.51 | 60 | 30 | 10 | 0.2 | T0-92 | MOTOROLA | A |
| 2N5062 | Тиристор | 0.8 | 0.51 | 100 | 25 | 60 | 0.2 | TO-92 | MOTOROLA | A |
| MCR100-8 | Тиристор | 0.8 | 0.51 | 600 | - | - | 0.2 | TO-92 | STM | A |
| MCR22-6 | Тиристор | 1.5 | 0.95 | 400 | 25 | - | 0.2 | TO-92 | TECCOR | B |
| S4003M | Тиристор | 3 | 1.9 | 400 | 10 | 35 | 10 | TO-5 | TECCOR | C |
| IR106B | Тиристор | 4 | 2.5 | 200 | 8 | 100 | 200 | TO-202 | Интегр. выпр. | E |
| TIC106D | Тиристор | 5 | 3.2 | 400 | 10 | 7.7 | 0.2 | TO-220 | TEXAS | E |
| TIC106M | Тиристор | 5 | 3.2 | 600 | 10 | 7.7 | 0.2 | TO-220 | TEXAS | E |
| TIC116D | Тиристор | 8 | 5 | 400 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| S6008L # | Тиристор | 8 | 5.1 | 600 | 160 | 35 | 15 | TO-220 | TECCOR | E |
| TIC116M | Тиристор | 8 | 5 | 600 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| TIC126D | Тиристор | 12 | 7.5 | 400 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| BT151-500R | Тиристор | 12 | 7.5 | 500 | 130 | 70 | 2 | TO-220 | PHILIPS | E |
| TIC126M | Тиристор | 12 | 7.5 | 600 | 100 | 11 | 20 | TO-220 | TEXAS | E |
| BT151-800R | Тиристор | 12 | 7.5 | 800 | 130 | 70 | 2 | TO-220 | NXP | E |
| TYN616 | Тиристор | 16 | 10 | 600 | 50 | 50 | 25 | TO-220 | STM | E |
| MCR16N | Тиристор | 16 | 10 | 800 | 200 | - | 10 | TO-220 | ON SEMI | E |
| S6020L # | Тиристор | 20 | 12.8 | 600 | 200 | 35 | 30 | TO-220 | TECCOR | E |
| TXN692 # | Тиристор | 20 | 13 | 800 | 500 | - | 25 | TO-220 | STM | E |

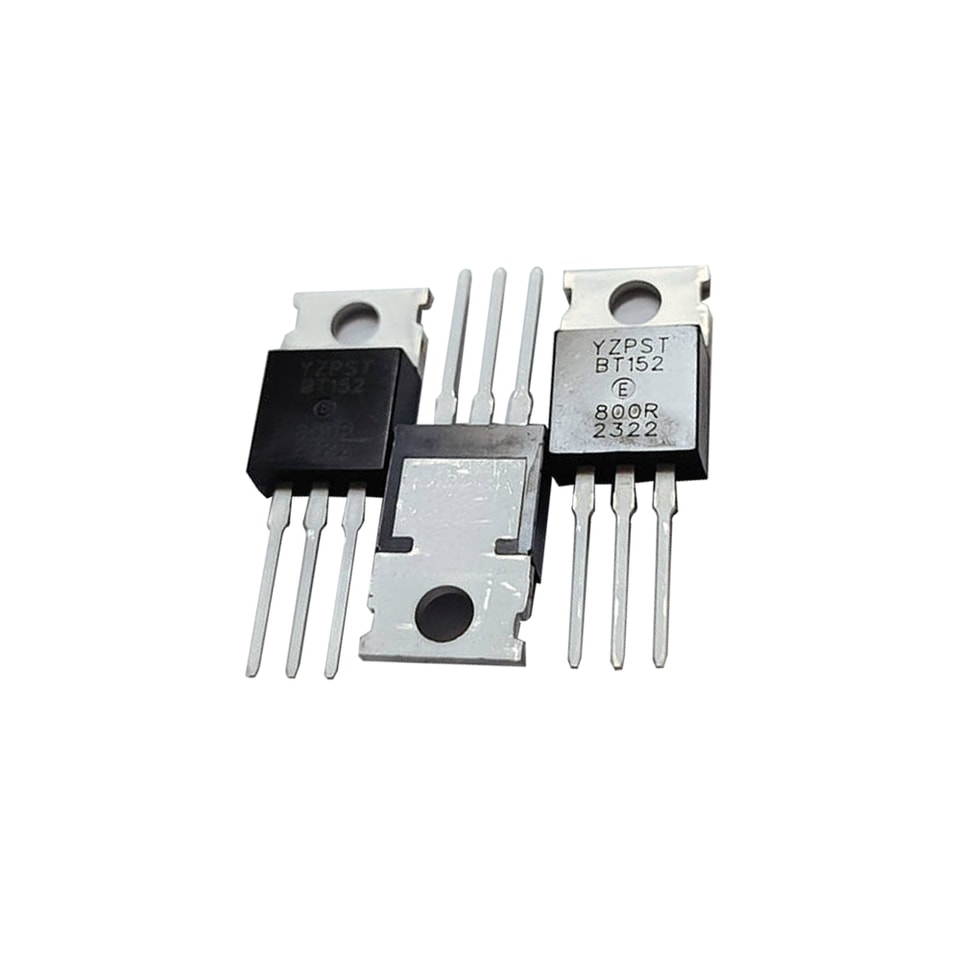

| BT152-800R | Тиристор | 20 | 13 | 800 | 300 | - | 32 | TO-220 | NXP | E |
| MCR25D | Тиристор | 25 | 16 | 400 | 250 | - | 12 | TO-220 | ON SEMI | E |
| S8025R | Тиристор | 25 | 16 | 800 | 200 | 35 | 30 | TO-220 | TECCOR | E |
| 2N692 | Тиристор | 25 | 16 | 800 | - | - | 40 | TO-48 | MOTOROLA | G |
| K16RIA120 * | Тиристор | 25 | 16 | 1200 | 500 | 20 | 100 | TO-48 | JEENDA | G |
| BTW68-800 # | Тиристор | 30 | 19 | 800 | 500 | 100 | 50 | TO-3P | STM | W |
| BTW68-1200 # | Тиристор | 30 | 19 | 1200 | 500 | 100 | 50 | TO-3P | STM | W |
| 16RIA60 | Тиристор | 35 | 16 | 600 | 100 | 110 | 60 | TO-48 | Интегр. выпр. | G |
| 16RIA120 | Тиристор | 35 | 16 | 1200 | 100 | 110 | 60 | TO-48 | Интегр. выпр. | E |
| S8040R | Тиристор | 40 | 25 | 800 | 500 | 35 | 40 | TO-220 | TECCOR | G |
| 25RIA8OM | Тиристор | 40 | 25 | 800 | 100 | 110 | 40 | TO-48(M6) | Интегр. выпр. | E |
| 40TTS12 | Тиристор | 40 | 25 | 1200 | 500 | 110 | 35 | TO-220 | Интегр. выпр. | G |
| 25RIA120 | Тиристор | 40 | 25 | 1200 | 100 | 110 | 40 | TO-48 | Интегр. выпр. | W |
| BTW69-600 # | Тиристор | 50 | 32 | 600 | 1000 | - | 50 | TO-3P | STM | W |
| CYNA56 1000 # | Тиристор | 50 | 32 | 1000 | 1000 | - | 50 | TO-3P | C3 SEMI | W |
| BTW69-1200 # | Тиристор | 50 | 32 | 1200 | 1000 | - | 50 | TO-3P | STM | W |
| S8055M | Тиристор | 55 | 35 | 800 | 500 | 35 | 40 | TO-3P | TECCOR | W |
| 40TPS12A | Тиристор | 55 | 35 | 1200 | 1000 | - | 150 | TO-247AC | Интегр. выпр. | W |
| S4070WTP | Тиристор | 70 | 45 | 400 | 650 | 35 | 50 | TO-218X | LITTELFUSE | S |
| S8070W | Тиристор | 70 | 45 | 800 | 500 | 35 | 50 | TO-218X | LITTELFUSE | S |
| CYNA71-1000 # | Тиристор | 70 | 50 | 1000 | 1000 | - | 60 | TO-3P | C3 SEMI | W |
| 70TPS12 | Тиристор | 75 | 70 | 1200 | 500 | - | 100 | SUPER TO-247 | Интегр. выпр. | W |
| 70TPS16 | Тиристор | 75 | 70 | 1600 | 500 | - | 100 | SUPER TO-247 | Интегр. выпр. | W |
| 50RIA60 | Тиристор | 80 | 50 | 600 | 200 | 110 | 100 | TO-65 | I.R./S.ST. | H |
| 50RIA8OM | Тиристор | 80 | 50 | 800 | 200 | 110 | 100 | TO-65 (M6) | Внутр. выпр., | H |
| 50RIA120 | Тиристор | 80 | 50 | 1200 | 200 | 110 | 100 | T0-65 | Интегр. выпр. | H |
| K50RIA120* | Тиристор | 80 | 50 | 1200 | 800 | 20 | 100 | TO-65 | JEENDA | H |
| 80RIA120 | Тиристор | 125 | 80 | 1200 | 500 | 110 | 120 | TO-94 | Интегр. выпр. | K |
| S15CG6B0 | Тиристор | 140 | 90 | 600 | 700 | 70 | 150 | TO-94 | Интегр. выпр. | K |
| T90RIA120 | Тиристор | 140 | 90 | 1200 | 500 | 110 | 120 | T-M3 | Интегр. выпр. | J |
| ST110S12POV | Тиристор | 175 | 110 | 1200 | 500 | - | 150 | TO-94 | Интегр. выпр. | K |
| ST110S16PO | Тиристор | 175 | 110 | 1600 | 500 | - | 150 | TO-94 | Интегр. выпр. | K |
| ST173512PFPO * | Тиристор | 275 | 175 | 1200 | 500 | 25 | 200 | TO-93 | Интегр. выпр. | L |
| ST173512PFKO * | Тиристор | 275 | 175 | 1200 | 200 | 20 | 200 | TO-93 | Интегр. выпр. | L |
| ST180S12POV | Тиристор | 314 | 200 | 1200 | 500 | 100 | 150 | TO-93 | Интегр. выпр. | L |
| ST180516PO | Тиристор | 314 | 200 | 1600 | 1000 | - | 150 | TO-93 | Интегр. выпр. | L |
| ST230512POV | Тиристор | 361 | 230 | 1200 | 500 | - | 150 | TO-93 | Интегр. выпр. | L |
| ST230S16PO | Тиристор | 361 | 230 | 1600 | 500 | - | 150 | TO-93 | Интегр. выпр. | L |
| 300RA20 | Тиристор | 470 | 300 | 200 | 500 | 120 | 150 | A-6 | Интегр. выпр. | N |
| ST300512PO | Тиристор | 470 | 300 | 1200 | 500 | 100 | 100 | TO-118 | Интегр. выпр. | M |
| ST303512PFKO * | Тиристор | 471 | 300 | 1200 | 500 | 25 | 200 | TO-118 | Интегр. выпр. | M |
| ST330S12PO | Тиристор | 520 | 330 | 1200 | 500 | 100 | 200 | TO-118 | Интегр. выпр. | M |
| ST330S16PO | Тиристор | 520 | 330 | 1600 | 500 | 100 | 200 | TO-118 | Интегр. выпр. | M |
| ST173C12CFK0 * | Тиристор | 610 | 330 | 1200 | 200 | 20 | 200 | TO-200AB | Интегр. выпр. | O |
| T35KEEA-1600 * | Тиристор | 640 | 400 | 1600 | - | 35 | 250 | A-29 | JEENDA | Q |
| ST230C16C1L | Тиристор | 780 | 410 | 1600 | 1000 | 100 | 150 | TO-200AB | Интегр. выпр. | O |
| T38KEE-1800 * | Тиристор | 800 | 500 | 1800 | - | 35 | 250 | TO-200AC | JEENDA | P |
| T40KEE-1800 * | Тиристор | 940 | 600 | 1800 | - | 35 | 300 | TO-200AC | JEENDA | P |
| S38BF12B * | Тиристор | 980 | 625 | 1200 | 700 | 20 | 150 | TO-200AC | Интегр. выпр. | P |
| ST303C12CFK0 * | Тиристор | 1180 | 620 | 1200 | 200 | 20 | 200 | TO-200AB | Интегр. выпр. | O |
| ST303C12CFJ1 * | Тиристор | 1180 | 620 | 1200 | 200 | 25 | 200 | TO-200AB | Интегр. выпр. | O |
| ST300C16C0 | Тиристор | 1290 | 650 | 1600 | 500 | 100 | 200 | TO-200AB | Интегр. выпр. | O |
| ST330C16C1L | Тиристор | 1420 | 720 | 1600 | 1000 | 100 | 200 | TO-200AB | Интегр. выпр. | O |
| T8261275B3DH * | Тиристор | 1524 | 970 | 1200 | 300 | 20 | 200 | TO-200AC | POWEREX | P |
| ST650C24L1 | Тиристор | 1557 | 790 | 2400 | 500 | 200 | 100 | TO-200AC | Интегр. выпр. | P |
| C712PM * | Тиристор | 1700 | 1000 | 1600 | 500 | 55 | 120 | A-24 | POWEREX | R |
| T50KEE-1800 * | Тиристор | 1700 | 1000 | 1800 | - | 35 | 500 | A-24 | JEENDA | R |
| ST700C16L0 | Тиристор | 1857 | 910 | 1600 | 500 | 150 | 200 | TO-200AC | Интегр. выпр. | P |
| ST700C20L0 | Тиристор | 1857 | 910 | 2000 | 500 | 150 | 200 | TO-200AC | Интегр. выпр. | P |
| ST730C16L1L | Тиристор | 2000 | 990 | 1600 | 1000 | 150 | 200 | TO-200AC | Интегр. выпр. | P |
| T9G0161203DH | Тиристор | 2790 | 1780 | 1600 | 300 | 350 | 200 | A-24 | POWEREX | R |
| ST1200C16K1L | Тиристор | 3080 | 1650 | 1600 | 500 | 200 | 200 | A-24 | Интегр. выпр. | R |
| ST1200C20K0 | Тиристор | 3080 | 1650 | 2000 | 500 | 200 | 200 | A-24 | Интегр. выпр. | R |
.jpg)
.jpg)
Силовые полупроводниковые приборы, защитные компоненты и промышленные решения в области электропитания.
