YZPST-RU50 AKA U1620G
Быстродействующий восстановительный диод YZPST-RU50, также известный как U1620G

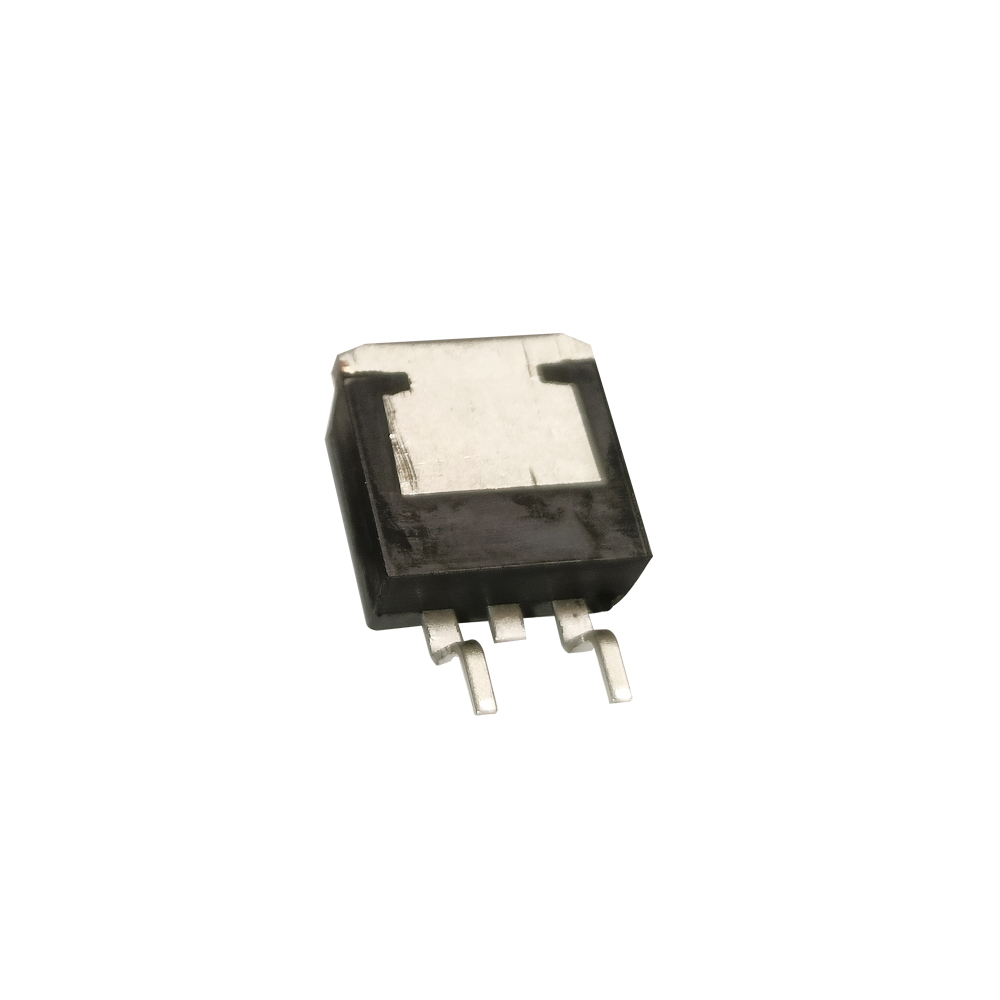

Диод быстрого восстановления с высокой токовой способностью TO-263 MUR1620CT
Особенности:
Высокая импульсная способность
Низкое падение напряжения вперед
Высокая токовая способность
Сверхбыстродействующая скорость переключения для высокой эффективности
Fast Recovery Diode YZPST-RU50 AKA U1620G
High Current Capability Fast Recovery Diode TO-263 MUR1620CT
Features:
High surge capacity
Low Forward Voltage Drop.
High Current Capability
Super Fast Switching Speed For High Efficiency
Absolute Maximum Ratings (Ta=25C unless otherwise noted)
|
Parameter |
Symbol |
MUR 1610 CT |
MUR 1615 CT |
MUR 1620 CT |
MUR 1640 CT |
MUR 1660 CT |
Unit |
|
|
Peak Repetitive Reverse Voltage |
VRRM |
100 |
150 |
200 |
400 |
600 |
V |
|
|
Working Peak Reverse Voltage |
VRW M |
70 |
105 |
140 |
280 |
420 |
V |
|
|
DC Blocking Voltage |
VR(DC) |
100 |
150 |
200 |
400 |
600 |
V |
|
|
Average Rectified Forward Current Per Leg Total Device Total Device |
IF(AV) |
8 16 |
A |
|||||
|
Peak Rectified Forward Current Per Diode Leg |
IFM |
16 |
A |
|||||
|
Nonrepetitive Peak Surge Current(Surge applied at rated load conditions half wave, single phase, 60 Hz) |
IFSM |
180 |
A |
|||||
|
Operating Junction Temperature and Storage Temperature |
TJ, Tstg |
1.Anode 2.Cathode 3. Anode -55 to +150 |
C |
|||||
|
Maximum Thermal Resistance, Junction−to−Case(Per Leg) |
R θJC |
3.0 |
2.0 |
C/ W |
||||
ELECTRICAL CHARACTERISTICS (Per Diode Leg)
|
Parameter |
Symbol |
MUR 1610 CT |
MUR 1615 CT |
MUR 1620 CT |
MUR 1640 CT |
MUR 1660 CT |
Unit |
|
Forward Voltage (Note 1)(IF = 8.0 A, TC = 25°C) |
VF |
1.0 |
1.3 |
1.7 |
V |
||
|
Maximum Instantaneous Reverse Current (Note 1) (Rated DC Voltage, TC = 150°C) (Rated DC Voltage, TC = 25°C) |
IR |
250 10 |
500 10 |
μ A |
|||
|
Maximum Reverse Recovery Time (IF = 0.5 A, IR = 1.0 A, IREC = 0.25 A) |
TRR |
35 |
35 |
ns |
|||
For more information about Fast Recovery Diode please download the PDF file above named " YZPST-MUR1610CT-MUR1660CT TO-263 VA1.0-B027 "
