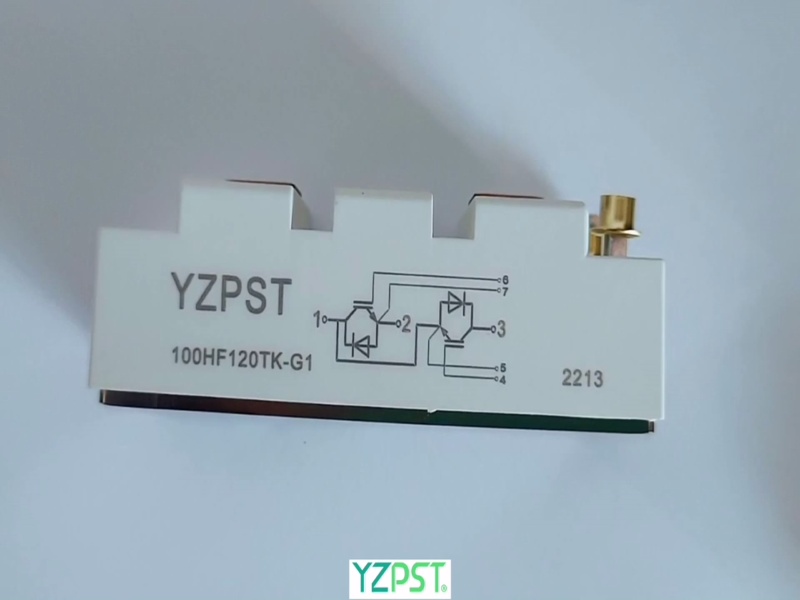

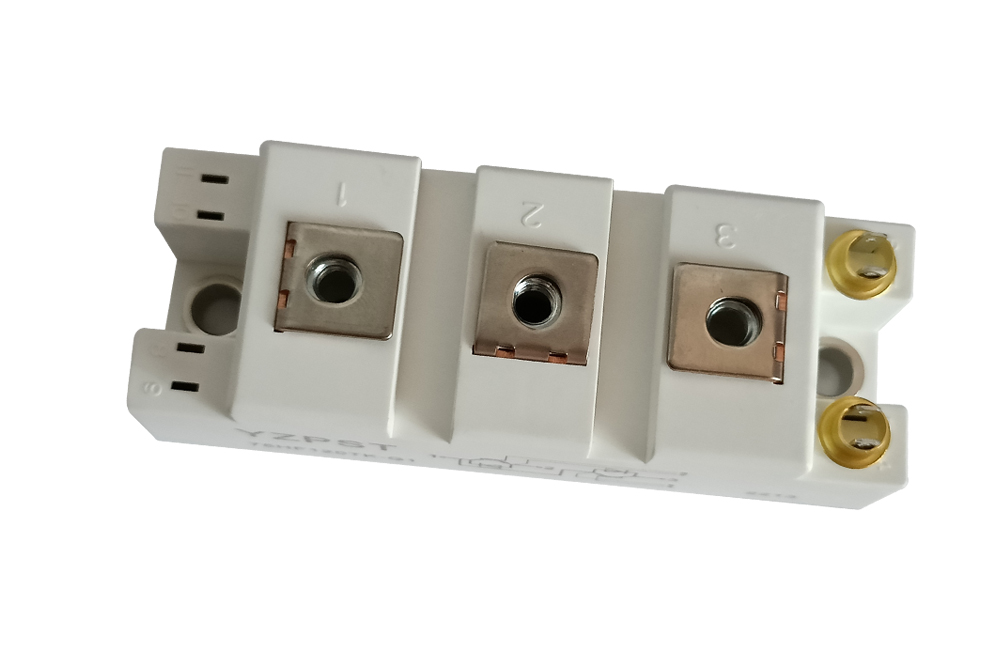

YZPST-100HF120TK-G1
IGBT Moudle YZPST-100HF120TK-G1
FEATURES
High short circuit capability, self limiting short circuit current
IGBT CHIP(Trench+ Field Stop technology)
VCE(sat) with positive temperature coefficient Fast switching, Low switching losses
Free wheeling diodes with fast and soft reverse recovery
APPLICATIONS
High frequency switching application
Welding converters
Motion/servo control
UPS systems
ABSOLUTE MAXIMUM RATINGS TC=25°C unless otherwise specified
|
Symbol |
Parameter |
Test Conditions |
Values |
Unit |
|
IGBT |
||||
|
VCES |
Collector - Emitter Voltage |
TVj=25°C |
1250 |
V |
|
VGES |
Gate - Emitter Voltage |
|
±30 |
V |
|
IC |
DC Collector Current |
TC=25°C |
150 |
A |
|
TC=80°C |
100 |
A |
||
|
ICM |
Repetitive Peak Collector Current |
tp=1ms |
200 |
A |
|
Ptot |
Power Dissipation Per IGBT |
694 |
W |
|
|
Diode |
||||
|
VRRM |
Repetitive Reverse Voltage |
TVj=25°C |
1250 |
V |
|
IF(AV) |
Average Forward Current |
TC=25°C |
150 |
A |
|
TC=80°C |
100 |
A |
||
|
IFRM |
Repetitive Peak Forward Current |
tp=1ms |
200 |
A |
MODULE CHARACTERISTICS TC=25°C unless otherwise specified
|
Symbol |
Parameter |
Test Conditions |
Min. |
Typ. |
Max. |
Unit |
|
TVj max |
Max. Junction Temperature |
|
150 |
°C |
||
|
TVj op |
Operating Temperature |
|
-40 |
|
150 |
°C |
|
Tstg |
Storage Temperature |
|
-40 |
125 |
°C |
|
|
Visol |
Insulation Test Voltage |
AC, t=1min |
3000 |
V |
||
|
Torque |
To-Sink |
Recommended M6 |
3 |
|
5 |
N·m |
|
Torque |
To-Terminal |
Recommended M5 |
2.5 |
|
5 |
N·m |
|
Weight |
|
|
|
176 |
|
g |
CIRCUIT DIAGRAM
PACKAGE OUTLINE
For more information about YZPST-100HF120TK-G1 please download the PDF file above named " YZPST-100HF120TK-G1 "
