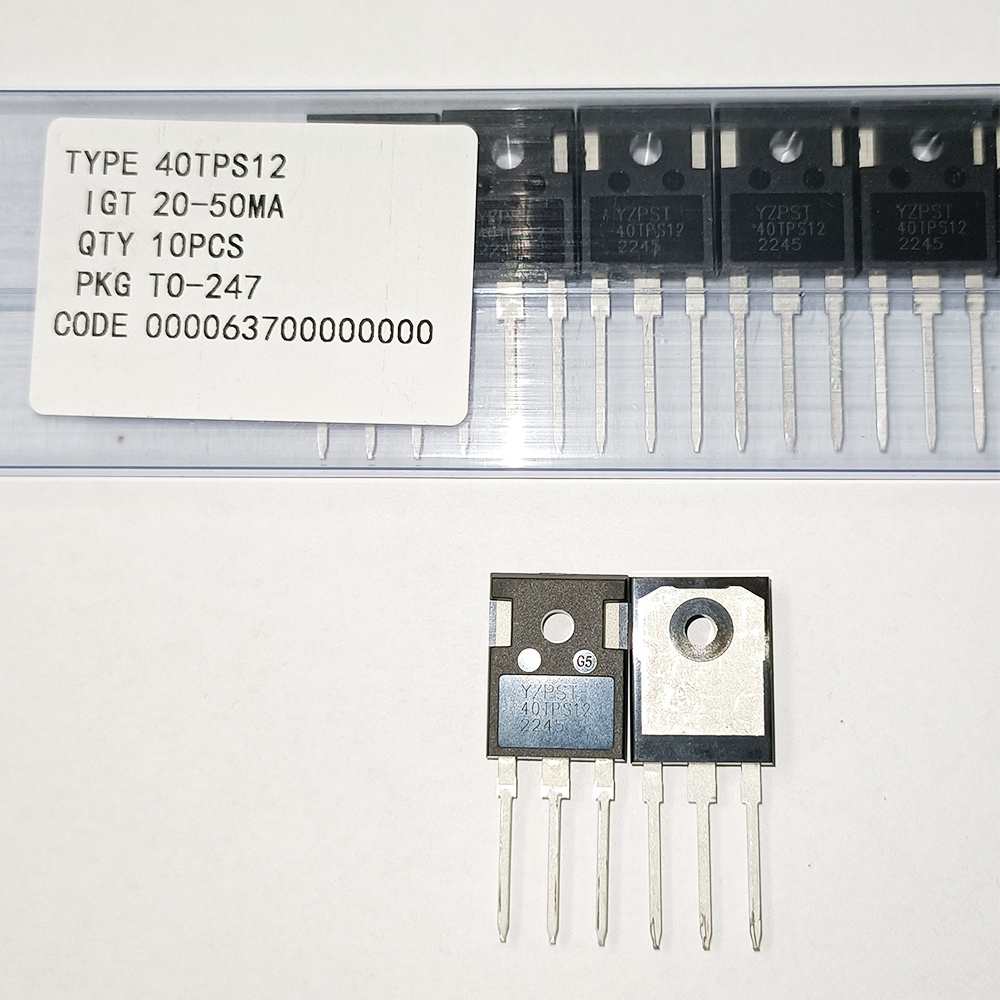

YZPST-40TPS12
SCR YZPST-40TPS12
Характеристики продукта
Процесс пассивации стекла на столе,
Металл заднего (анодного) электрода: Ti-Ni-Ag
Металл положительного (воротного, анодного) электрода: AL
Основные цели
Переключение переменного тока,
Преобразователь переменного тока в постоянный,
Управление электрическим нагревом
Регулировка скорости двигателя
Упаковка
TO-247

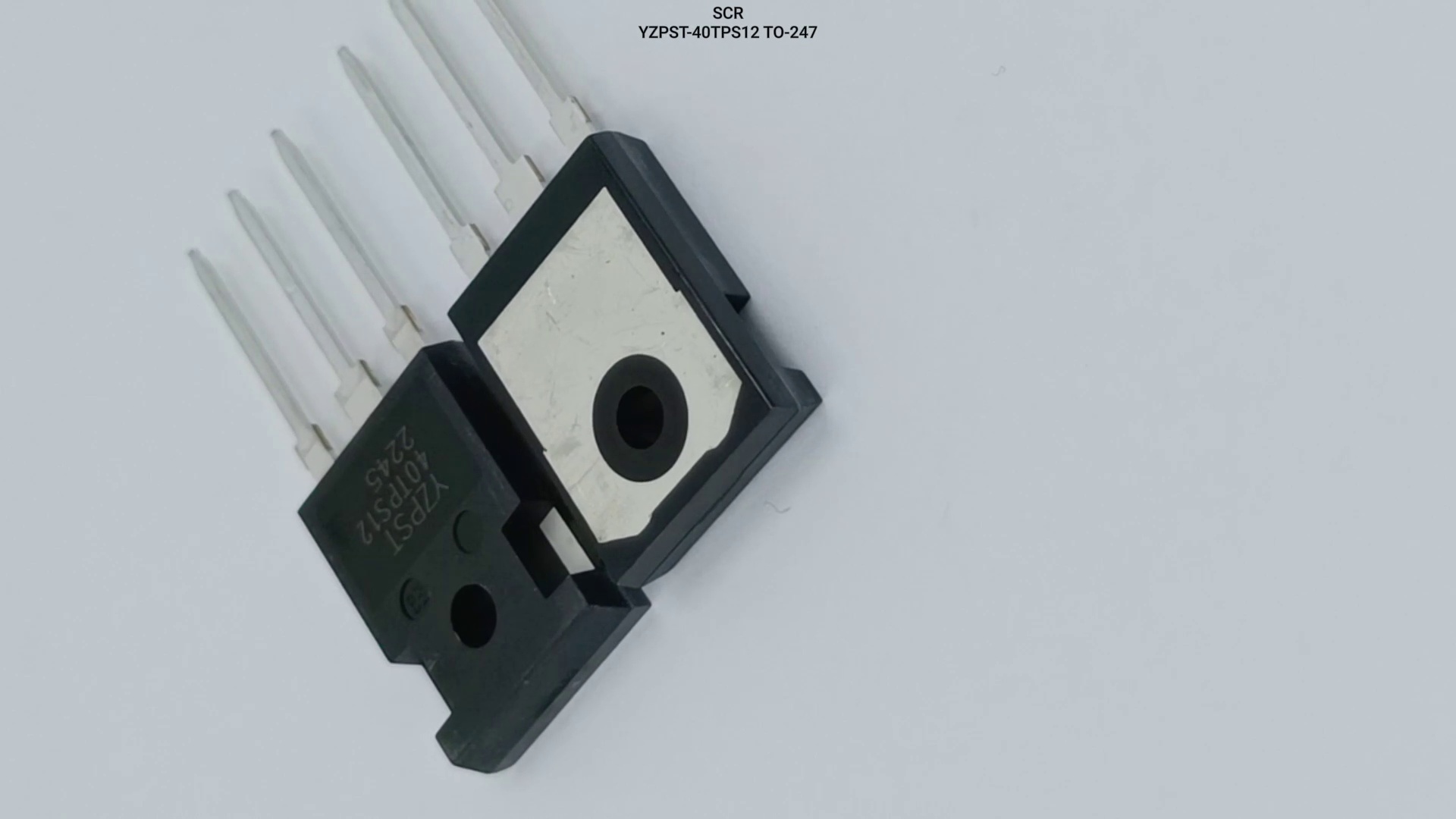

SCR YZPST-40TPS12
Product features
Table glass passivation process,
The back (anode) electrode metal: Ti-Ni-Ag
The Positive (gate, anode ) electrode metal: AL
The main purposes
Alternating current switch,
AC DC power converter,
The control of electric heating
Motor speed control
Package
TO-247
MainFeature (Tj=25℃)
|
Symbol |
Value |
Unit |
|
IT (RMS) |
40 |
A |
|
VDRM / VRRM |
1200 |
V |
|
IGT |
≤35 |
mA |
Absolute ratings (Limiting Values)
|
Symbol |
Parameter |
Value |
Unit |
|
IT (RMS) |
RMS on-state current (180°conduction angle) |
40 |
A |
ITSM
|
Non repetitive surge peak on-state Current (tp= 10ms) |
460 |
A |
|
IGM |
Peak gate current(tp=20us) |
4 |
A |
|
PGM |
Peak gate power |
5 |
W |
|
PG(AV) |
Average gate power |
1 |
W |
|
Tstg Tj |
Storage temperature Operating junction temperature |
-40--+ 150 -40--+ 125 |
℃ |
Thermai Resistances
|
Symbol |
Parameter |
|
Value |
Unit |
|
Rth (j-c) |
Junction to case |
TO-247 |
0.95 |
℃/W |
Electrical characteristicsTj=25℃ unless otherwise stated
|
Symbol |
Test Conditions |
Value |
Unit |
|||
|
Min |
Type |
Max |
||||
|
IGT |
VD= 12V, RL=33 Ω |
---- |
----- |
35 |
mA |
|
|
VGT |
VD= 12V, RL=33 Ω |
----- |
----- |
1.5 |
V |
|
|
VGD |
VD=VDRM, RL=3.3KΩ, RGK= 1KΩ,Tj=125℃ |
0.2 |
----- |
----- |
V |
|
|
H |
IT=500mA |
----- |
----- |
75 |
mA |
|
|
L |
IG= 1.2IGT |
----- |
----- |
150 |
mA |
|
|
dV/dt |
VD=67%VDRM, GateOpen, Tj=110℃ |
1000 |
----- |
----- |
v/ μs |
|
|
VTM |
IT=80A,tp=380 μs |
----- |
----- |
1.6 |
V |
|
|
dI/dt |
IG=2IGT |
50 |
----- |
----- |
A/ μs |
|
|
I2T |
Tp= 10ms |
----- |
----- |
1060 |
A2 S |
|
|
IDRM |
VD=VDRM |
Tj=25℃ |
----- |
----- |
10 |
μA |
|
Tj=125℃ |
----- |
----- |
4 |
mA |
||
|
VRRM |
VR=VRRM |
Tj=25℃ |
----- |
----- |
10 |
μA |
|
Tj=125℃ |
----- |
----- |
4 |
mA |
||
For more information about YZPST-40TPS12 please download the PDF file above named " YZPST-40TPS12 "
