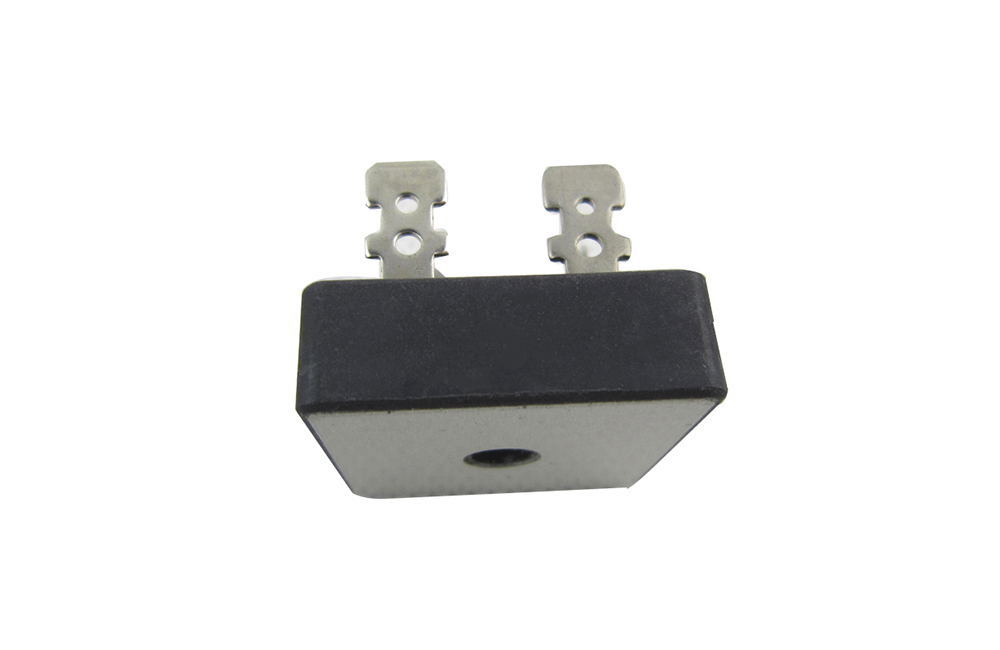

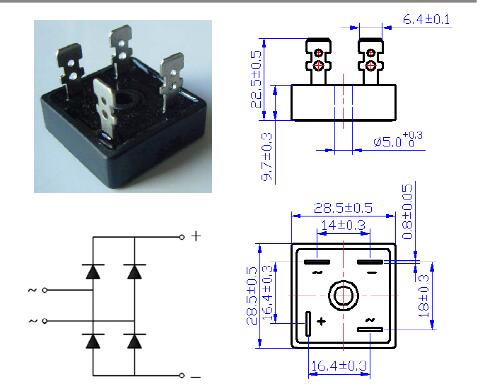

YZPST-BR1510
Feature
Low forward voltage drop
Isolation voltage 2000V～
Small volume, light weight
Low thermal resistance,
high heat-conductivity, low temperature rise
UL certification No.E304417
Application
Power supply for DC power device
Input rectifier for PWM converter
Inverter welding machine
|
Symbol |
Parameter |
Rating |
Unit |
||
|
BR |
|||||
|
1506 |
1508 |
1510 |
|||
|
VRRM |
Reverse peak repetitive voltage |
600 |
800 |
1000 |
V |
|
VRSM |
Reverse peak non-repetitive voltage |
700 |
900 |
1100 |
V |
|
Symbol |
Parameter |
Test condition |
Rating |
Unit |
|
IF（AV） |
Forward average current |
TC=78℃ |
15 |
A |
|
IFSM |
Forward surge current |
sin, 50Hz, t=10ms,Tj=25℃ |
180 |
A |
|
I2t |
I2t value |
|
162 |
A2S |
|
VISO |
Isolation voltage |
50Hz，R.M.S，t=1min，Iiso:1mA(max) |
2000 |
V |
|
Tj |
Operating junction temperature |
|
-40 to +150 |
℃ |
|
Tjm |
Rated junction temperature |
|
150 |
℃ |
|
Tstg |
Storage temperature |
|
-40 to +125 |
℃ |
|
Md |
Mounting torque M5 |
|
2 |
N·m |
|
Wt |
Weight |
|
20 |
g |
|
Symbol |
Parameter |
Test condition |
Max value |
Unit |
|
IRRM |
Peak reverse repetitive current |
VR=VRRM, Tj=25℃ |
5 |
μA |
|
VR=VRRM, Tj=150℃ |
3 |
mA |
||
|
VFM |
Peak forward voltage |
IFM =7.5A, Tj=25℃ |
1.1 |
V |
|
Rth(j-c) |
Thermal impedance（junction-case） |
Single-sided heat dissipation, sine half-wave |
1.2 |
℃/W |
