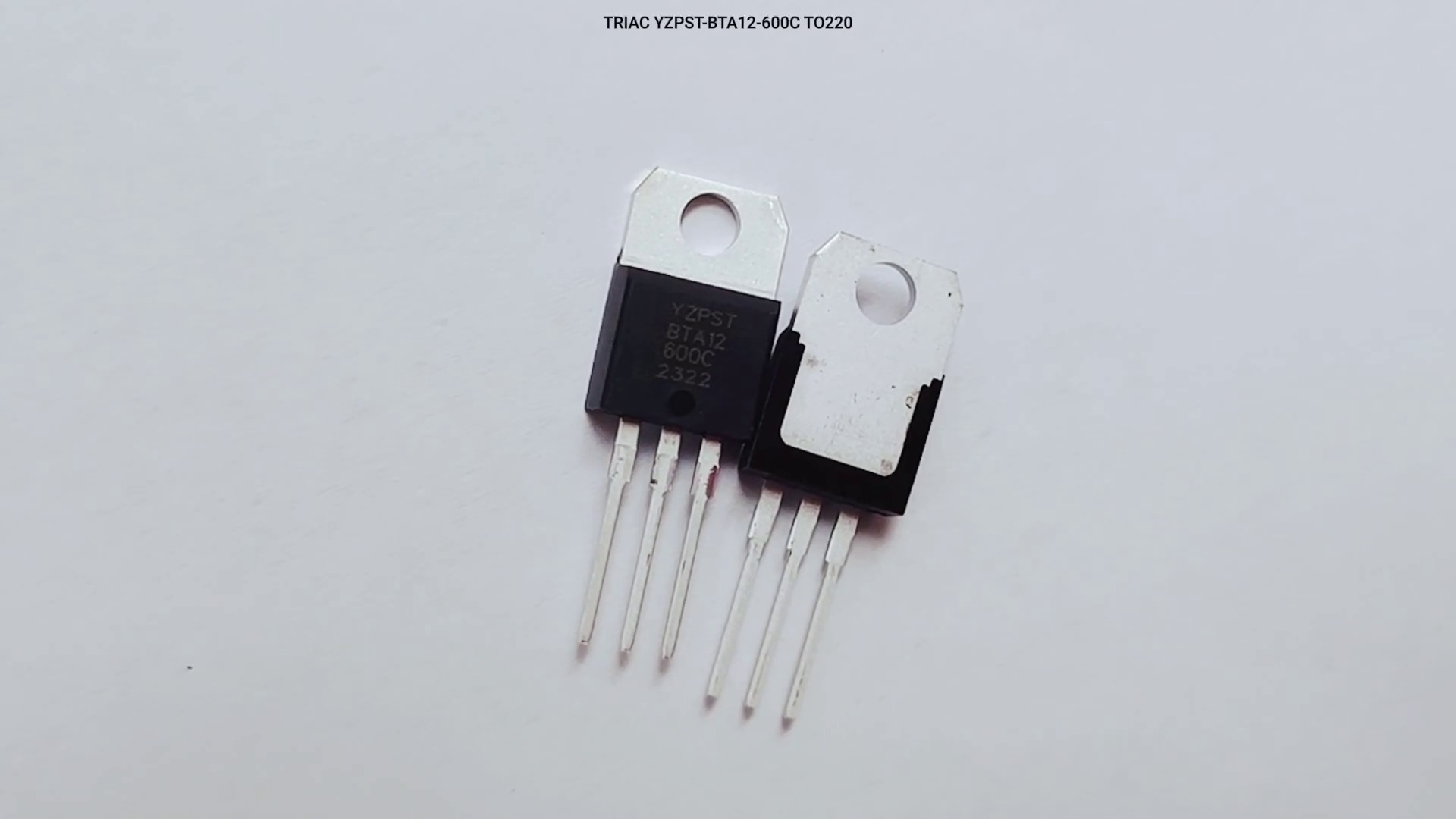

YZPST-BTA12-600C Напряжение стабильности 600V BTA12-600C TO-220A Триак
• Особенности продукта
Одиночная структура мезы (Single Mesa),
Процесс пассивации стекла стола,
Стабильность напряжения
Способность к сильному токовому удару
Применимая модель: BTA12
Основное назначение
Стиральная машина, выпрямитель волос
Твердотельное реле, управление скоростью переменного тока двигателя
• Упаковка
TO-220A
YZPST-BTA12-600C
●Product features
Single mesa structure (Single Mesa),
Table glass passivation process,
Voltage stability
The ability of strong current shock resistance
The applicable model： BTA12
The main purpose
Washing machine, the hair straightened
Solid state relay, AC motor speed control
●Package
TO-220A
Main Feature (Tj=25℃)
|
Symbol |
Value |
Unit |
|
IT (RMS) |
12 |
A |
|
VDRM / VRRM |
600/800 |
V |
|
VTM |
1.55 |
V |
Absolute ratings (Limiting Values)
|
Symbol |
Parameter |
Value |
Unit |
|
ITSM |
Non repetitive surge peak on-state Current (tp=10ms) |
115 |
A |
|
I2t |
(tp=10ms) |
70 |
A2S |
|
dI/dt |
IG=2IGT ，tr≤100ns,Tj=125℃ |
50 |
A/ μs |
|
IGM |
Peak gate current(tp=20us) |
4 |
A |
|
PG(AV) |
Average gate power |
1 |
W |
|
Tstg Tj |
Storage temperature Operating junction temperature |
-40--+150 -40--+125 |
℃ |
Thermai Resistances
| Symbol | ||||
| Parameter | Value | Unit | ||
| TO-220A | 2.3 | |||
| Rth (j-c) | Junction to case | TO-220B/TO-220C | 1.4 | ℃/W |
| TO-220F | 3.9 |
Electrical characteristics (Tj=25℃ unless otherwise stated)
| Symbol | Test Conditions | Value | Unit | ||||||
| TW | SW | CW | BW | C | B | ||||
| IGT | VD=12V, RL=30Ω | ⅠⅡⅢ | ≤5 | ≤10 | ≤25 | ≤50 | ≤25 | ≤50 | mA |
| Ⅳ | ---- | ---- | ---- | ---- | ≤50 | ≤100 | |||
| IDRM | VD=VDRM | Tj=25℃ | ≤5 | μA | |||||
| Tj=125℃ | ≤1 | mA | |||||||
| IRRM | VD=VRRM | Tj=25℃ | ≤5 | μA | |||||
| Tj=125℃ | ≤1 | mA | |||||||
| ⅠⅢ | ≤10 | ≤25 | ≤50 | ≤70 | ≤40 | ≤50 | |||
| IL | IG=1.2IGT | Ⅳ | ---- | ---- | ---- | ---- | ≤40 | ≤50 | mA |
| Ⅱ | ≤15 | ≤30 | ≤60 | ≤80 | ≤80 | ≤100 | |||
| VGT | VD=12V ,RL=30Ω | ≤1.3 | V | ||||||
| VGD | VD=VDRM, Tj=125℃RL=3.3KΩ | ≥0.2 | V | ||||||
| VTM | ITM=17A,tp=380 μs | 1.55 | V | ||||||
| IH | VD=12V ，IT=200mA | ≤20 | ≤25 | ≤35 | ≤50 | ≤25 | ≤50 | mA | |
| dV/dt | VD=67%VDRM, | ≥40 | ≥ | ≥ | ≥ 1000 | ≥ | ≥400 | v/ μs | |
| GateOpen, Tj=125℃ | 100 | 400 | 200 | ||||||
