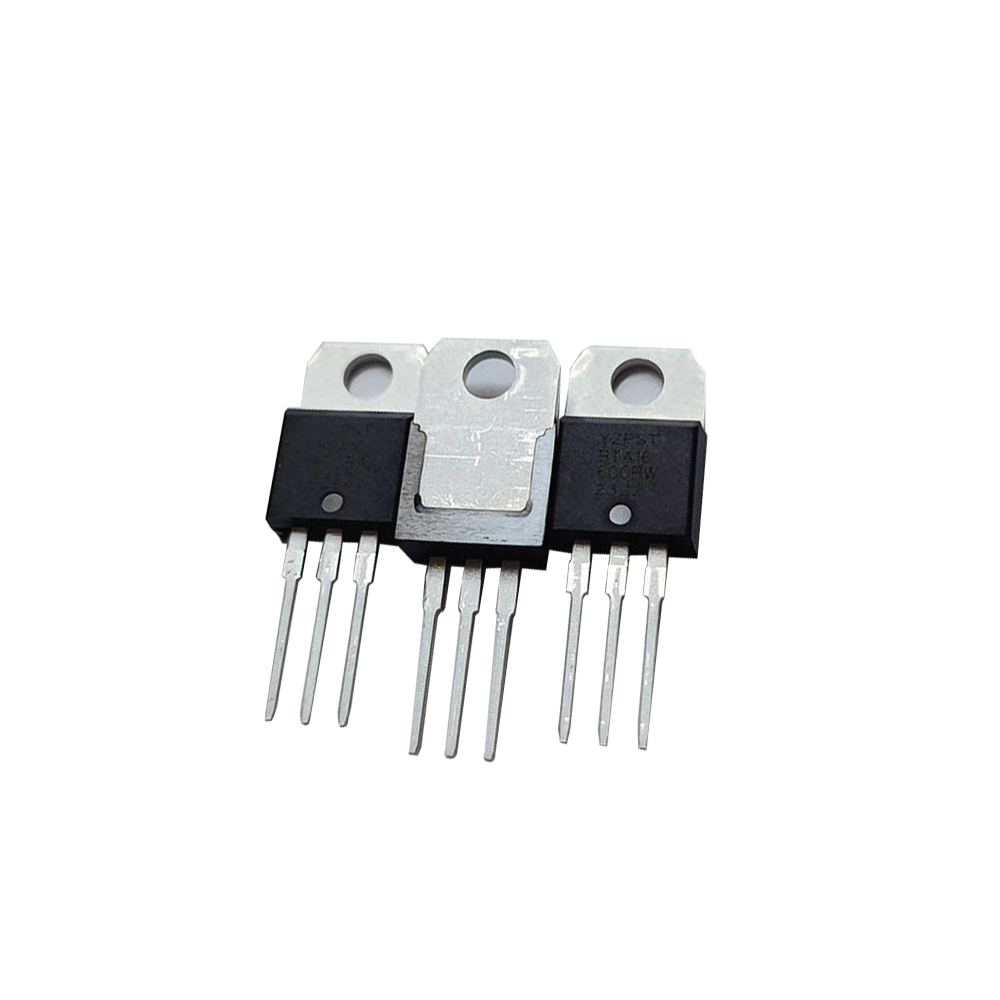

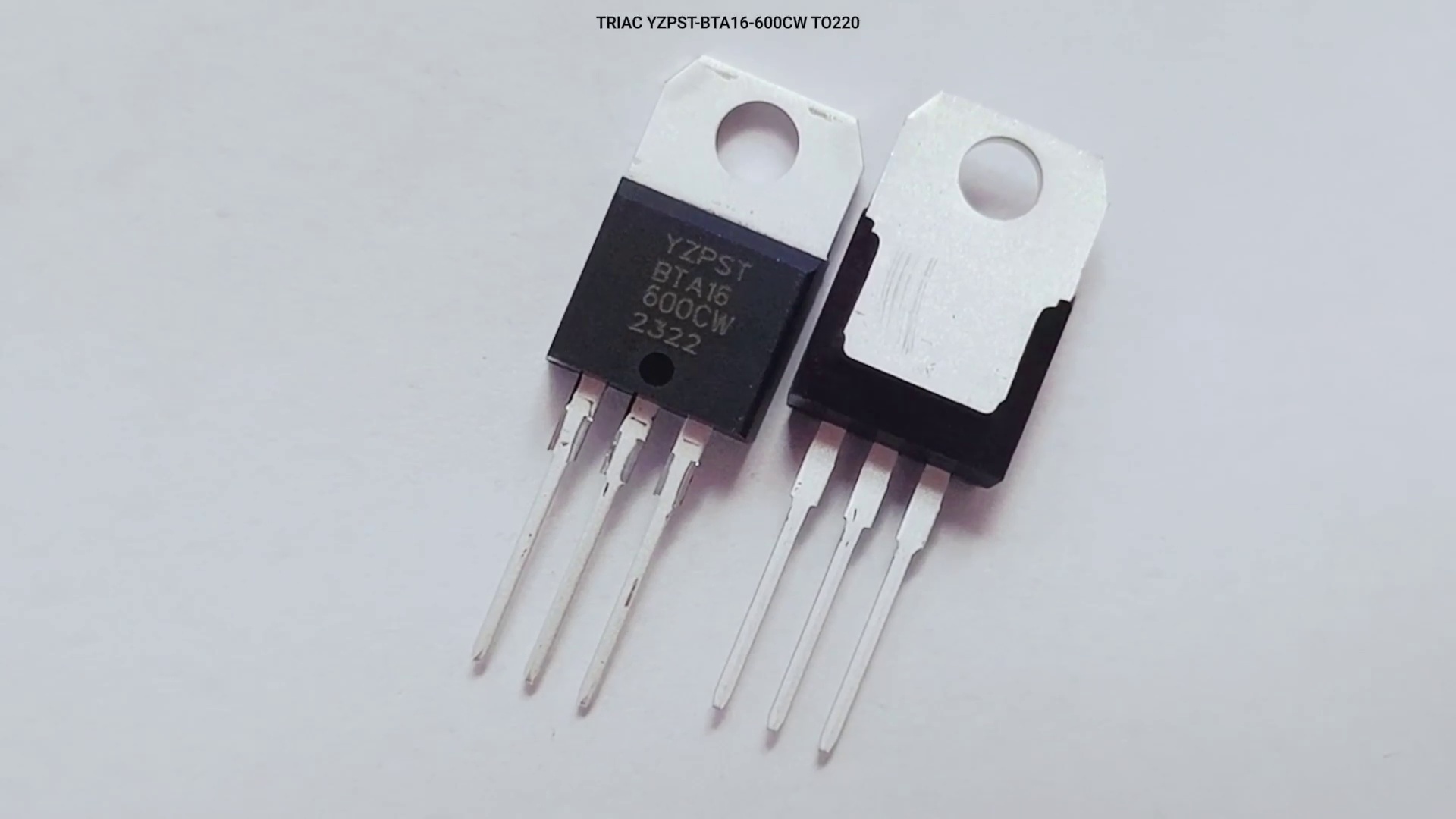

YZPST-BTA16-600CW 600V TO-220 BTA16-600CW 16A тиристор
BTA16/BTB16 (BT139) Series16ATriacs
YZPST-BTA16-600CW
ОПИСАНИЕ:
С высокой способностью выдерживать ударную нагрузку большого тока, тиристоры серии BTA16/BTB16 обеспечивают высокую скорость dv/dt с сильным сопротивлением к электромагнитным помехам.
Обладая высокой коммутационной способностью, продукты 3 квадранта особенно рекомендуются для использования с индуктивной нагрузкой. От всех трех выводов до внешнего теплоотвода, BTA16 обеспечивает изоляционное напряжение 2500 В переменного тока в соответствии с UL стандартами.
BTA16/BTB16 (BT139) Series16ATriacs
YZPST-BTA16-600CW
DESCRIPTION:
With high ability to withstand the shock loading of Large current, BTA16/BTB16 series triacs provide high dv/dt rate with strong resistance to electromagnetic interface.
With high commutation performances, 3 quadrantsproducts especially recommended for use on inductive load. From all three terminals to external heatsink, BTA16 provides a rated insulation voltage of 2500 VRMS complying with UL standards
MAIN FEATURES:
|
symbol |
value |
unit |
|
IT(RMS) |
16 |
A |
|
VDRM/VRRM |
600/800/ 1200 |
V |
|
VTM |
≤ 1.5 |
V |
ABSOLUTE MAXIMUM RATINGS:
|
Parameter |
Symbol |
Value |
Unit |
|
Storage junction temperature range |
Tstg |
-40~150 |
℃ |
|
Operating junction temperature range |
Tj |
-40~125 |
℃ |
|
Repetitive peak off-state voltage (Tj=25C) |
VDRM |
600/800/ 1200 |
V |
|
Repetitive peak reverse voltage (Tj=25C) |
VRRM |
600/800/ 1200 |
V |
|
RMS on-state current |
IT(RMS) |
16 |
A |
|
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM |
160 |
A |
|
I2t value for fusing (tp=10ms) |
I2t |
128 |
A2s |
|
Critical rate of rise of on-state current(IG=2× IGT) |
dI/dt |
50 |
A/μs |
|
Peak gate current |
IGM |
4 |
A |
|
Average gate power dissipation |
PG(AV) |
1 |
W |
|
Peak gate power |
PGM |
5 |
W |
ELECTRICAL CHARACTERISTICS (Tj=25C unless otherwise specified)
3 Quadrants：
| Parameter | Value | |||||||
| Test Condition | Quadrant | TW | SW | CW | BW | Unit | ||
| IGT | VD=12V, | 5 | 10 | 35 | 50 | A | ||
| VGT | RL=33Ω | Ⅰ- Ⅱ-Ⅲ | MAX | 1.3 | V | |||
| VGD | VD=VDRM | Ⅰ- Ⅱ-Ⅲ | MIN | 0 2 | V | |||
| IH | IT=100mA | MAX | 15 | 25 | 40 | 60 | A | |
| Ⅰ-Ⅲ | 20 | 30 | 50 | 70 | m | |||
| IL | IG=1.2IGT | Ⅱ | MAX | 25 | 40 | 60 | 90 | A |
| VD=2/3VDRM Tj=125C Gate open | ||||||||
| dV/dt | MIN | 100 | 200 | 500 | 1000 | V/µs | ||
4 Quadrants：
| Parameter | Value | |||||
| Test Condition | Quadrant | C | B | Unit | ||
| Ⅰ- Ⅱ-Ⅲ | 25 | 50 | A | |||
| IGT | VD=12V, | Ⅳ | 50 | 70 | A | |
| VGT | RL=33Ω | ALL | MAX | 1.5 | V | |
| VGD | VD=VDRM | ALL | MIN | 0.2 | V | |
| IH | IT=100mA | MAX | 40 | 60 | A | |
| Ⅰ-Ⅲ- Ⅳ | 50 | 70 | m | |||
| IL | IG=1.2IGT | Ⅱ | MAX | 70 | 90 | A |
| VD=2/3VDRM Tj=125C Gate open | ||||||
| dV/dt | MIN | 200 | 500 | V/µs | ||
STATIC CHARACTERISTICS
| Symbol | Test Condition | Value | Unit | ||
| VTM | ITM=22.5A tp=380μs | Tj=25C | MAX | 1.5 | V |
| IDRM | Tj=25C | 5 | A | ||
| IRRM | VDRM= VRRM | Tj=125C | MAX | 1 | A |
THERMAL RESISTANCES
| Symbol | Test Condition | Value | Unit | |
| Rth(j-c) | TO-220A(Ins) | 2.1 | ℃/W | |
| TO-220B(Non-Ins) | 1.3 | |||
| TO-220F(Ins) | 2.3 | |||
| junction to case(AC) | TO-263 | 2.4 | ||
ORDERING INFORMATION

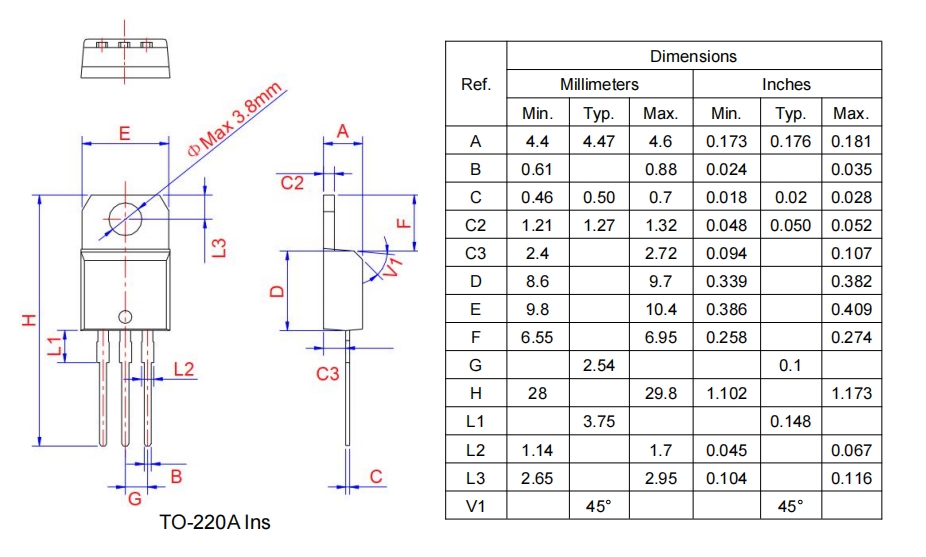

PACKAGE MECHANICAL DATA
