YZPST-BT137-600D Ток удержания 600V TO-252 8A Триак
Серия тиристоров BT137 8A
ОПИСАНИЕ
С низким уровнем удержания и защелкивания, тиристоры BT137
Серии особенно рекомендуются для использования в средних и малых типах сопротивления мощности
нагрузки.

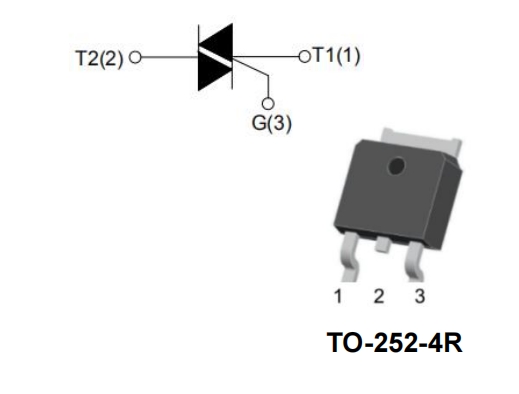

BT137 Series 8A Triacs
DESCRIPTION
With low holding and latching current, BT137
Series triacs are especially recommended for
use on middle and small resistance type power
load.
MAIN FEATURES:
|
symbol |
value |
unit |
|
IT(RMS) |
8 |
A |
|
VDRM/VRRM |
600/800 |
V |
|
VTM |
≤1.6 |
V |
ABSOLUTE MAXIMUM RATINGS:
|
Parameter |
Symbol |
Value |
Unit |
|
Storage junction temperature range |
Tstg |
-40~150 |
℃ |
|
Operating junction temperature range |
Tj |
-40~125 |
℃ |
|
Repetitive peak off-state voltage (Tj=25℃) |
VDRM |
600/800 |
V |
|
Repetitive peak reverse voltage (Tj=25℃) |
VRRM |
600/800 |
V |
|
RMS on-state current |
IT(RMS) |
8 |
A |
|
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM |
65 |
A |
|
I2t value for fusing (tp=10ms) |
I2t |
21 |
A2s |
| Critical rate of rise of on-state current (IG=2 × IGT) | Ⅰ- Ⅱ-Ⅲ | 50 | ||
| dI/dt | Ⅳ | 10 | A/ μs | |
| Peak gate current | IGM | 2 | A | |
| Average gate power dissipation | PG(AV) | 0.5 | W | |
| Peak gate power | PGM | 5 | W | |
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
| Parameter | Value | |||||||
| Test Condition | Quadrant | D | E | F | G | Unit | ||
| Ⅰ- Ⅱ-Ⅲ | 5 | 10 | 25 | 50 | ||||
| IGT | Ⅳ | 10 | 25 | 70 | 100 | mA | ||
| VGT | VD=12V, RL=33Ω | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MAX | 1.3 | V | |||
| VGD | VD=VDRM | Ⅰ- Ⅱ-Ⅲ-Ⅳ | MIN | 0.2 | V | |||
| IH | IT=100mA | MAX | 10 | 20 | 40 | 60 | mA | |
| Ⅰ-Ⅲ-Ⅳ | 10 | 30 | 50 | 70 | ||||
| IL | IG=1.2IGT | Ⅱ | MAX | 20 | 40 | 70 | 100 | mA |
| VD=0.66×VDRM Tj=125℃ Gate open | ||||||||
| dV/dt | MIN | 20 | 50 | 100 | 200 | V/ µs | ||

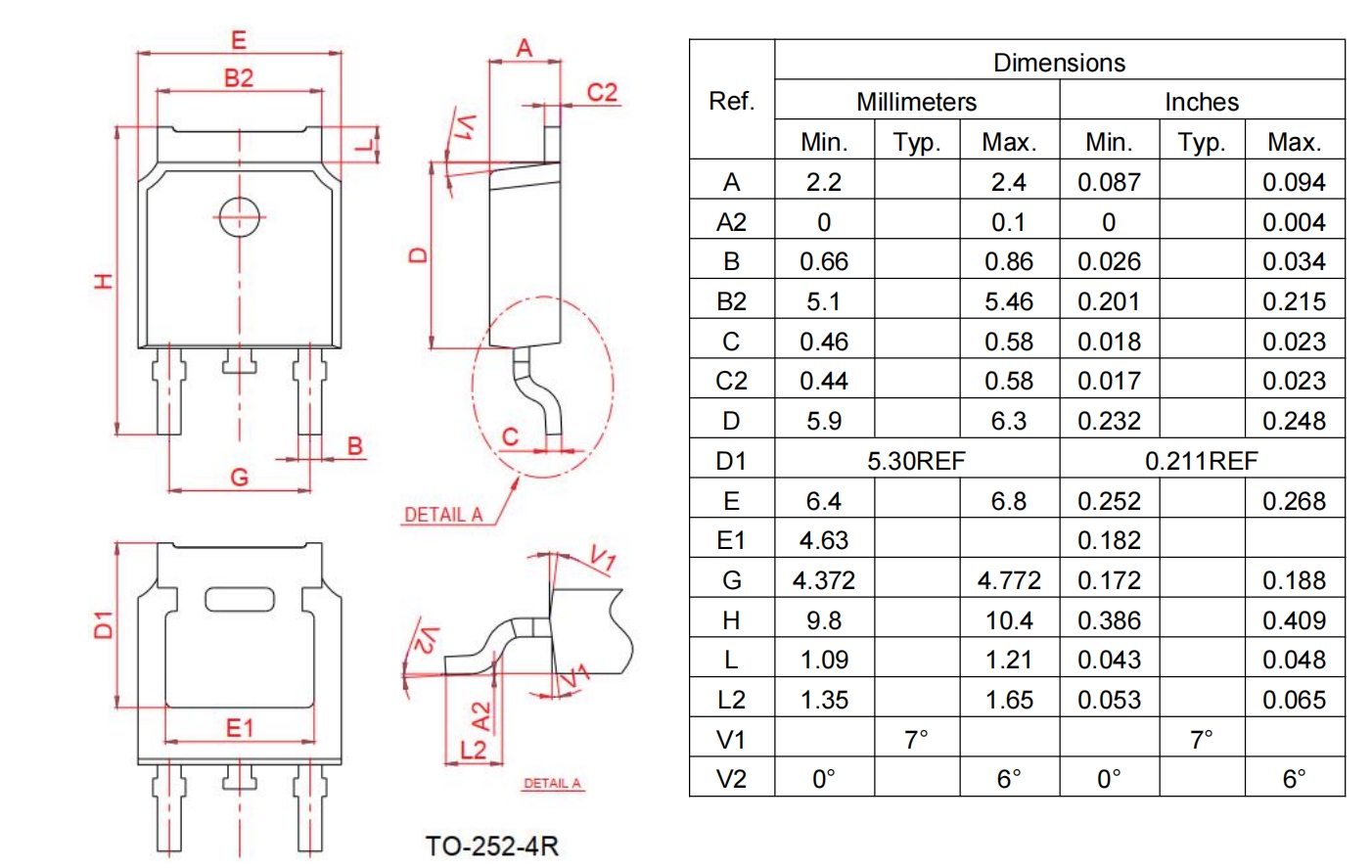

PACKAGE MECHANICAL DATA
