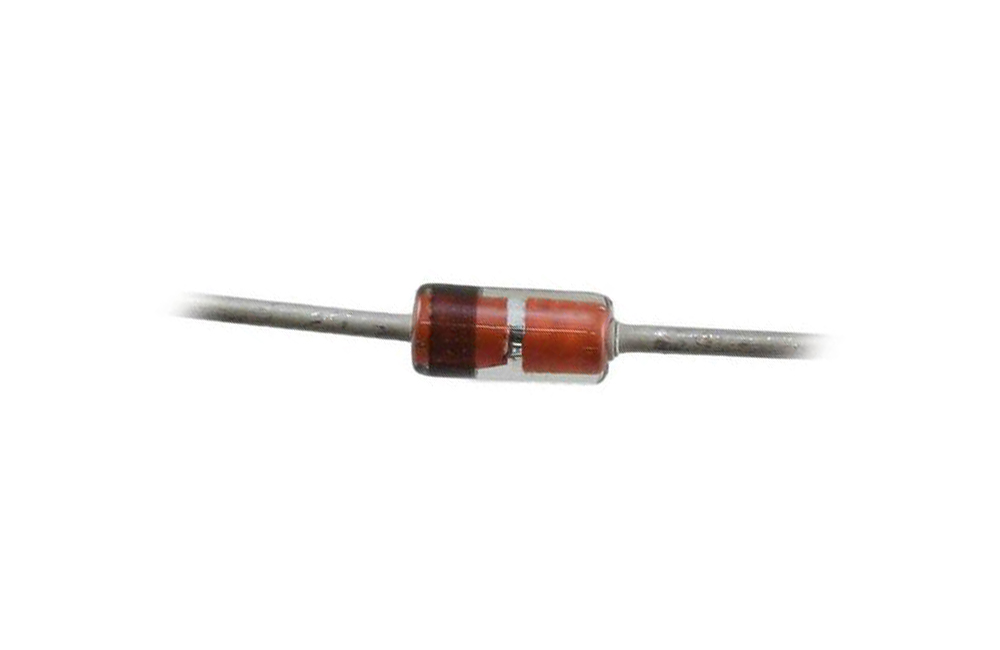

YZPST-BZX0V8 кремниевые эпитаксиальные плоские ценер-диоды
YZPST-BZX0V8--BZX200
SILCON EPITAXIAL PLANAR ZENER DIODES
FOR STABILIZED POWER SUPPLY
Features
.Low leakage,low zener impedance and maximum
power dissipation of 500mw are ideally suited for
stabilized power supply etc.
.Wide spectrum form 1.6v through 38v of zener
voltage provide flexible application.
Absolute Maximum Ratings(Ta=25℃)
|
Parameter |
Symbol |
Value |
Unit |
|
|
Power Dissipation |
Ptot |
500 |
mW |
|
|
Junction Temperature |
Tj |
175 |
℃ |
|
|
Storage Temperature Range |
Ts |
-55 to +175 |
℃ |
|
|
TYPE |
Zener Voltage Range |
Maximum Zener Impedance1) |
Maximum Reverse Leakage Current |
Temp.Coefficient of Zener Voltage |
||||||
|
VZ |
IZT |
for VZT |
IZT |
IZK |
at IZK |
Ta=25℃ |
Ta=25℃ |
at VR |
TKVZ |
|
|
V |
mA |
V |
Ω |
Ω |
mA |
Max.(μA) |
Max.(μA) |
V |
%/K |
|
500mw ZENER DIODES/DO-35 or DO-34
|
BZX55C0V8 |
0.8 |
5 |
0.73…0.83 |
8 |
50 |
1 |
— |
— |
— |
-0.26…-0.23 |
|
BZX55C2V0 |
2 |
5 |
1.8…2.15 |
85 |
600 |
1 |
100 |
200 |
1 |
-0.09…-0.06 |
|
BZX55C2V2 |
2.2 |
5 |
2.08…2.33 |
85 |
600 |
1 |
75 |
160 |
1 |
-0.09…-0.06 |
|
BZX55C2V4 |
2.4 |
5 |
2.28…2.56 |
85 |
600 |
1 |
50 |
100 |
1 |
-0.09…-0.06 |
|
BZX55C2V7 |
2.7 |
5 |
2.5…2.9 |
85 |
600 |
1 |
10 |
50 |
1 |
-0.09…-0.06 |
|
BZX55C3V0 |
3 |
5 |
2.8…3.2 |
85 |
600 |
1 |
4 |
40 |
1 |
-0.08…-0.05 |
|
BZX55C3V3 |
3.3 |
5 |
3.1…3.5 |
85 |
600 |
1 |
2 |
40 |
1 |
-0.08…-0.05 |
|
BZX55C3V6 |
3.6 |
5 |
3.4…3.8 |
85 |
600 |
1 |
2 |
40 |
1 |
-0.08…-0.05 |
|
BZX55C3V9 |
3.9 |
5 |
3.7…4.1 |
85 |
600 |
1 |
2 |
40 |
1 |
-0.08…-0.05 |
|
BZX55C4V3 |
4.3 |
5 |
4…4.6 |
75 |
600 |
1 |
1 |
20 |
1 |
-0.06…-0.03 |
|
BZX55C4V7 |
4.7 |
5 |
4.4…5 |
60 |
600 |
1 |
0.5 |
10 |
1 |
-0.05…0.02 |
|
BZX55C5V1 |
5.1 |
5 |
4.8…5.4 |
35 |
550 |
1 |
0.1 |
2 |
1 |
-0.02…0.02 |
|
BZX55C5V6 |
5.6 |
5 |
5.2…6.0 |
25 |
450 |
1 |
0.1 |
2 |
1 |
-0.05…0.05 |
|
BZX55C6V2 |
6.2 |
5 |
5.8…6.6 |
10 |
200 |
1 |
0.1 |
2 |
2 |
0.03…-0.06 |
|
BZX55C6V8 |
6.8 |
5 |
6.4…7.2 |
8 |
150 |
1 |
0.1 |
2 |
3 |
0.03…-0.07 |
|
BZX55C7V5 |
7.5 |
5 |
7…7.9 |
7 |
50 |
1 |
0.1 |
2 |
5 |
0.03…-0.07 |
|
BZX55C8V2 |
8.2 |
5 |
7.7…8.7 |
7 |
50 |
1 |
0.1 |
2 |
6.2 |
0.03…-0.08 |
|
BZX55C9V1 |
9.1 |
5 |
8.5…9.6 |
10 |
50 |
1 |
0.1 |
2 |
6.8 |
0.03…-0.09 |
|
BZX55C10 |
10 |
5 |
9.4…10.6 |
15 |
70 |
1 |
0.1 |
2 |
7.5 |
0.03…-0.10 |
|
BZX55C11 |
11 |
5 |
10.4…11.6 |
20 |
70 |
1 |
0.1 |
2 |
8.2 |
0.03…-0.11 |
|
BZX55C12 |
12 |
5 |
11.4…12.7 |
20 |
90 |
1 |
0.1 |
2 |
9.1 |
0.03…-0.11 |
|
BZX55C13 |
13 |
5 |
12.4…14.1 |
26 |
110 |
1 |
0.1 |
2 |
10 |
0.03…-0.11 |
|
BZX55C15 |
15 |
5 |
13.8…15.6 |
30 |
110 |
1 |
0.1 |
2 |
11 |
0.03…-0.11 |
|
BZX55C16 |
16 |
5 |
15.3…17.1 |
40 |
170 |
1 |
0.1 |
2 |
12 |
0.03…-0.11 |
|
BZX55C18 |
18 |
5 |
16.8…19.1 |
50 |
170 |
1 |
0.1 |
2 |
13 |
0.03…-0.11 |
|
BZX55C20 |
20 |
5 |
18.8…21.2 |
55 |
220 |
1 |
0.1 |
2 |
15 |
0.03…-0.11 |
|
BZX55C22 |
22 |
5 |
20.8…23.3 |
55 |
220 |
1 |
0.1 |
2 |
16 |
0.04…-0.12 |
|
BZX55C24 |
24 |
5 |
22.8…25.6 |
80 |
220 |
1 |
0.1 |
2 |
18 |
0.04…-0.12 |
|
BZX55C27 |
27 |
5 |
25.1…28.9 |
80 |
220 |
1 |
0.1 |
2 |
20 |
0.04…-0.12 |
|
BZX55C30 |
30 |
5 |
28…32 |
80 |
220 |
1 |
0.1 |
2 |
22 |
0.04…-0.12 |
|
BZX55C33 |
33 |
5 |
31…35 |
80 |
220 |
1 |
0.1 |
2 |
24 |
0.04…-0.12 |
|
BZX55C36 |
36 |
5 |
34…38 |
80 |
220 |
1 |
0.1 |
2 |
27 |
0.04…-0.12 |
|
BZX55C39 |
39 |
2.5 |
37…41 |
90 |
500 |
0.5 |
0.1 |
5 |
30 |
0.04…-0.12 |
|
BZX55C43 |
43 |
2.5 |
40…46 |
90 |
500 |
0.5 |
0.1 |
5 |
33 |
0.04…-0.12 |
|
BZX55C47 |
47 |
2.5 |
44…50 |
110 |
600 |
0.5 |
0.1 |
5 |
36 |
0.04…-0.12 |
|
BZX55C51 |
51 |
2.5 |
48…54 |
125 |
700 |
0.5 |
0.1 |
10 |
39 |
0.04…-0.12 |
|
BZX55C56 |
56 |
2.5 |
52…60 |
135 |
700 |
0.5 |
0.1 |
10 |
43 |
0.04…-0.12 |
|
BZX55C62 |
62 |
2.5 |
58…66 |
150 |
1000 |
0.5 |
0.1 |
10 |
47 |
0.04…-0.12 |
|
BZX55C68 |
68 |
2.5 |
64…72 |
200 |
1000 |
0.5 |
0.1 |
10 |
51 |
0.04…-0.12 |
|
BZX55C75 |
75 |
2.5 |
70…79 |
250 |
1000 |
0.5 |
0.1 |
10 |
56 |
0.04…-0.12 |
|
BZX55C82 |
82 |
2.5 |
77…87 |
300 |
1500 |
0.25 |
0.1 |
10 |
62 |
0.05…-0.12 |
|
BZX55C91 |
91 |
1 |
85…96 |
450 |
2000 |
0.1 |
0.1 |
10 |
68 |
0.05…-0.12 |
|
BZX55C100 |
100 |
1 |
94…106 |
450 |
5000 |
0.1 |
0.1 |
10 |
75 |
0.05…-0.12 |
|
BZX55C110 |
110 |
1 |
104…116 |
600 |
5000 |
0.1 |
0.1 |
10 |
82 |
0.05…-0.12 |
|
BZX55C120 |
120 |
1 |
114…127 |
800 |
5500 |
0.1 |
0.1 |
10 |
91 |
0.05…-0.12 |
|
BZX55C130 |
130 |
1 |
124…141 |
950 |
6000 |
0.1 |
0.1 |
10 |
100 |
0.05…-0.12 |
|
BZX55C150 |
150 |
1 |
138…156 |
1250 |
6500 |
0.1 |
0.1 |
10 |
110 |
0.05…-0.12 |
|
BZX55C160 |
160 |
1 |
153…171 |
1400 |
7000 |
0.1 |
0.1 |
10 |
120 |
0.05…-0.12 |
|
BZX55C180 |
180 |
1 |
168…191 |
1700 |
8500 |
0.1 |
0.1 |
10 |
130 |
0.05…-0.12 |
|
BZX55C200 |
200 |
1 |
188…212 |
2000 |
10000 |
0.1 |
0.1 |
10 |
150 |
0.05…-0.12 |
1) Tested with pulses tp=20ms.
2) The BZX55C0V8 is a silicon diode with operation in forward direction.Hence,the index of all parameters should be "F" instead of"Z".Connect the cathode lead to the negative pole.
For more information about YZPST-BZX0V8 please download the PDF file above named " YZPST-BZX0V8-BZX200 zener diode "
