YZPST-DFM3000WXS17-A000
FAST Модули диодов P/N: YZPST-DFM3000WXS17-A000
FAST Diode Modules P/N：YZPST-DFM3000WXS17-A000
Features
- Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
- Hard Soldered Joints For High Reliability
- UL Recognized
Typical Applications
- Rectifier for drives applications
- Rectifiers for UBS
- Battery chargers
BLOCKING
|
Symbol |
Condition |
Ratings |
Unit |
|
VRRM VRSM |
Tj= Tj Max. |
1700 1800 |
V |
|
IRRM |
AtVRRM，Single phase，half wave，Tj= Tj Max. |
10 |
mA |
|
VISOL |
50Hz, 1S/1MIN |
4800/4000 |
V |
CONDUCTING
|
Symbol |
Condition |
Ratings |
Unit |
|
IF(AV) |
TC=65°C; 180° sine |
300 |
A |
|
IF(RMS) |
TC=82°C; 180° sine |
- |
A |
|
IFSM |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
2449 |
A |
|
I2t |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
30 |
kA2S |
|
VF(TO) |
Tj= Tj Max. |
- |
V |
|
rF |
Tj= Tj Max. |
- |
mΩ |
|
VFM |
On-State Current 300A，Tj=125°C |
2.05 |
V |
|
Trr |
Tj= 25°C IF =400A –di/dt=2250A/us VR =900V |
900 |
ns |
Electrical Characteristics
|
Symbol |
Condition |
Ratings |
Unit |
|
Rth(j-c) |
Per Module |
0.10 |
°C /W |
|
Rth(c-h) |
Per Module |
0.015 |
°C /W |
|
Tj |
|
-40 ~ + 125 |
°C |
|
Tstg |
|
-40 ~ + 125 |
°C |
|
M |
mounting torque |
5 |
Nm |
|
terminal torque |
5 |
Nm |
|
|

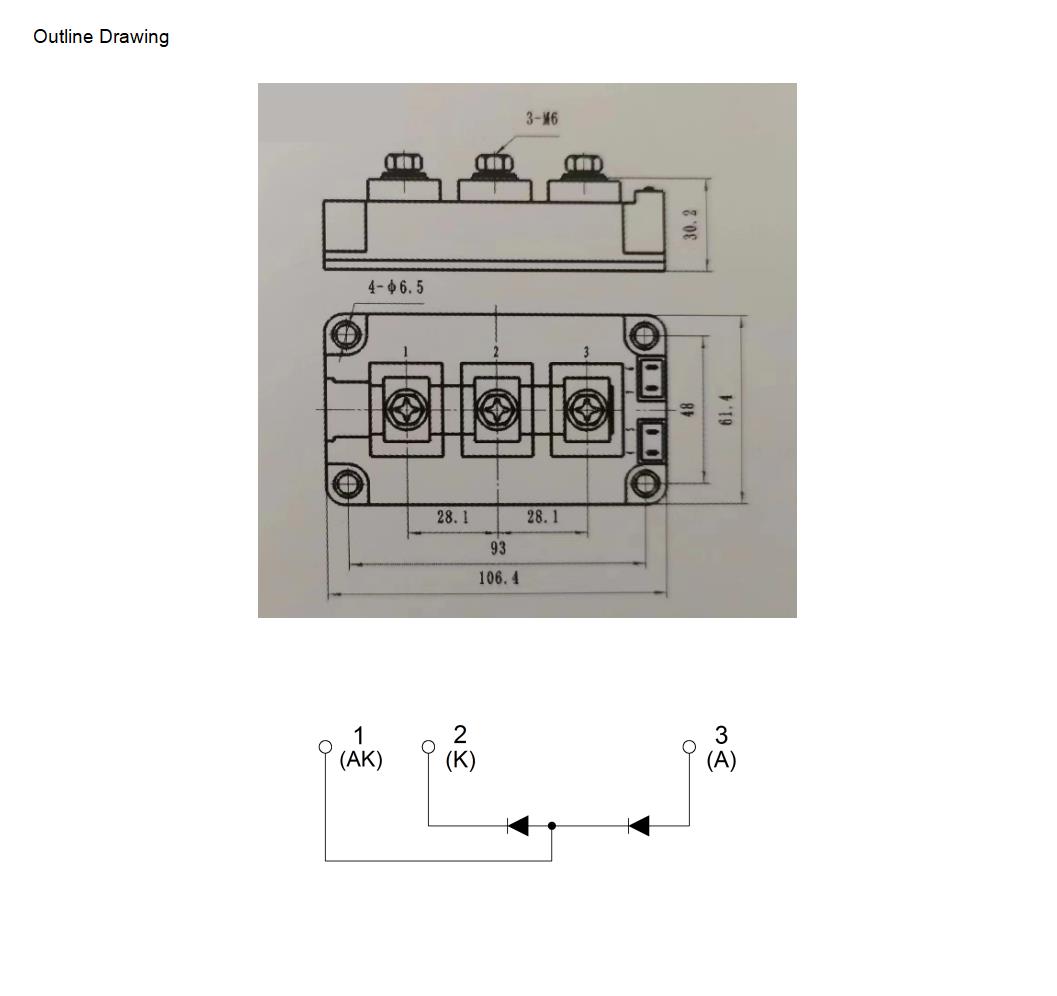

W |
|
- |
g |
