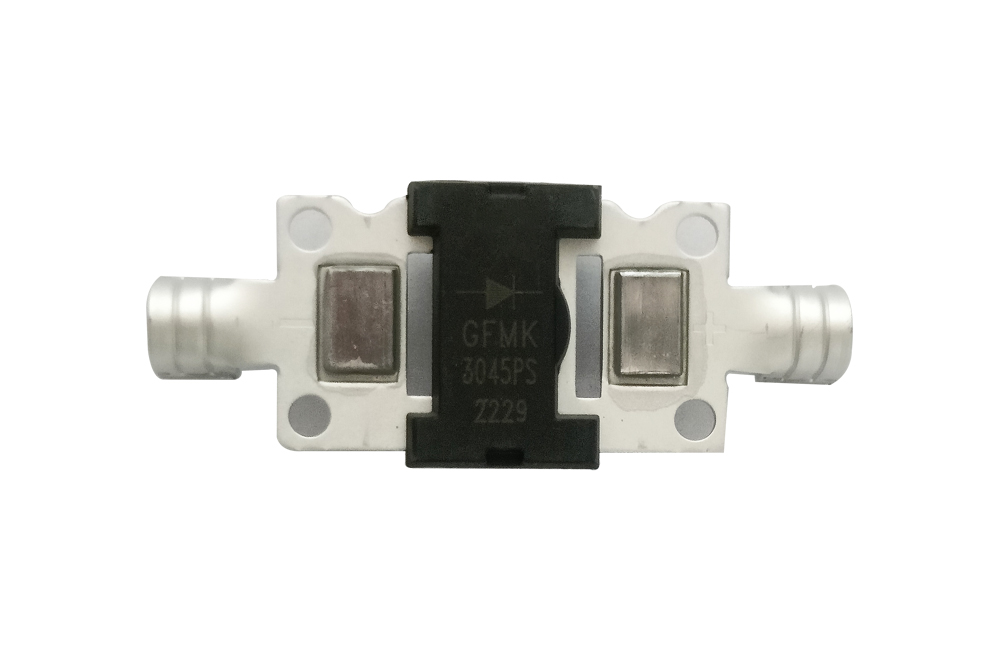

YZPST-GFMK-3045PS
Photovoltaic Solar Cell Protection Schottky Rectifier
YZPST-GFMK-3045PS
FEATURES● Low power loss
● Low forward voltage drop
● High forward surge capability
● High efficiency
TYPICAL APPLICATIONS
For use in solar cell junction box as a bypass diode for protection.
MECHANICAL DATA
Case: MJ-01 ： MJ-01
Molding compound meets UL 94 V-0 flammability rating UL 94 V-0
Terminals: Matte tin plated leads
Polarity: As marked on the body
|
MAXIMUM RATING (TA = 25 ℃ unless otherwise noted) |
|||
|
PARAMETER |
SYMBOL |
GFMK 3045PS |
UNIT |
|
Maximum repetitive peak reverse voltage |
VRRM |
45 |
V |
|
Maximum RMSvoltage |
VRMS |
31.5 |
V |
|
Maximum DC blocking voltage |
VDC |
45 |
V |
|
Maximum average forward rectified current |
I F(AV) |
30.0 |
A |
|
Peak forward surge cuurent 8.3ms single halfsine_wave superimposed on rated load @60Hz |
IFSM |
240 |
A |
|
Operating junction temperature range |
TJ |
-55 to +200 |
C |
|
Storge temperature range |
TSTG |
-55 to +200 |
C |
|
ELECTRICAL CHARACTERISTICS (TA = 25 ℃ unless otherwise noted) |
||||
|
PARAMETER |
TEST CONDITIONS |
SYMBOL |
GFMK 3045PS |
UNIT |
|
Maximum instantaneous forward voltage |
30.0 A |
VF(1) |
0.6 |
V |
|
Maximum instantaneous reverse current at rated DC blocking voltage |
TJ = 25 C |
IR(1) |
0.5 |
mA |
|
TJ = 125 C |
100 |
|||
|
THERMAL CHARACTERISTICS (TA = 25 ℃ unless otherwise noted) |
||||
|
PARAMETER |
TEST CONDITIONS |
SYMBOL |
GFMK 3045PS |
UNIT |
|
Typical thermal resistance |
Junction to Case |
R thJ-C |
0.8 |
C/W |
