YZPST-MCD215-20I01
Модули тиристора/диода YZPST-MCD215-20I01
Особенности
· Промышленный стандартный пакет
· Электрически изолированная базовая плита
· Теплоотвод через оксид алюминия керамической изолированной металлической базовой плиты
· Чип припаян на прямую медную связанную AL2O3 керамику
· Чип тиристора с центральным воротом

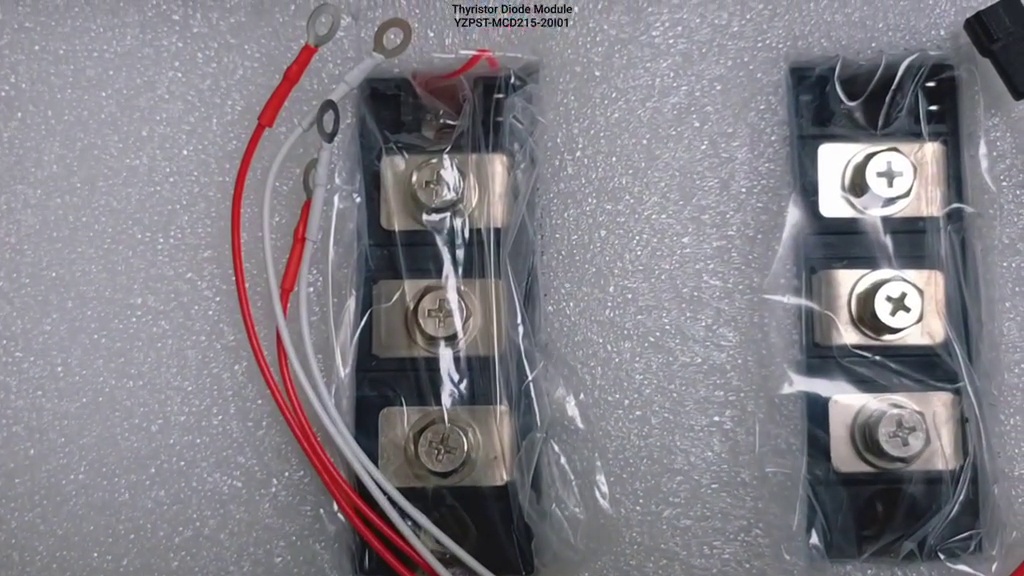

Thyristor/Diode Modules YZPST-MCD215-20I01
Features
· Industrial standard package
· Electrically insulated base plate
· Heat transfer through aluminium oxide ceramic
insulated metal base plate
· Chip soldered on direct copper bonded AL2O3
ceramic
· Thyristor chip with center gate
Typical Applications
- DC motor control
- AC motor soft starters
- Temperature control
- Professional light dimming
|
VDRM/VRRM |
Tj=25°C |
2000 |
V |
|
VRSM |
Tj=25°C |
2100 |
V |
Maximum Ratings
| Symbol | Condition | Ratings | Unit |
| IT(AV) | sin. 180; Tc =85°C, | 215 | A |
| ITRMS | sin. 180; Tc =125°C, | 340 | A |
| ITSM | Tvj =45°C; 10 ms | 8000 | A |
| Tvj =125°C; 10 ms | 6800 | A | |
| I2t | Tvj =45°C; 8,3…10 ms | 320 | kA2S |
| (di/dt)cr | non-repetitive | 100 | A/us |
| Viso | A.C. 1s / 1min. | 3600/3000 | V |
| Tj | -40 ~ + 125 | °C | |
| Tstg | -40 ~ + 125 | °C | |
| W | About | 150 | g |
Electrical Characteristics
|
Symbol |
Condition |
Ratings |
Unit |
|
IDRM /IRRM |
AtVDRM, Tj=125°C |
15 |
mA |
|
VT |
On-State Current 200A, Tj=25°C |
1.20 |
V |
|
VT(TO) |
Tj=125°C |
0.80 |
V |
|
tgd |
Tj=25°C |
2 |
us |
|
tq |
Tj=100°C |
200 |
us |
|
IGT/VGT |
Tj=25°C |
150 / 2.0 |
mA/V |
|
VGD |
Tj=125°C |
0.25 |
V |
|
(dv/dt)cr |
Tj=125°C |
1000 |
V/us |
|
IH |
Tj=25°C, max. |
150 |
mA |
|
IL |
Tj=25°C, max. |
200 |
mA |
|
Rth(j-c) |
Per Module |
0.13 |
K/W |

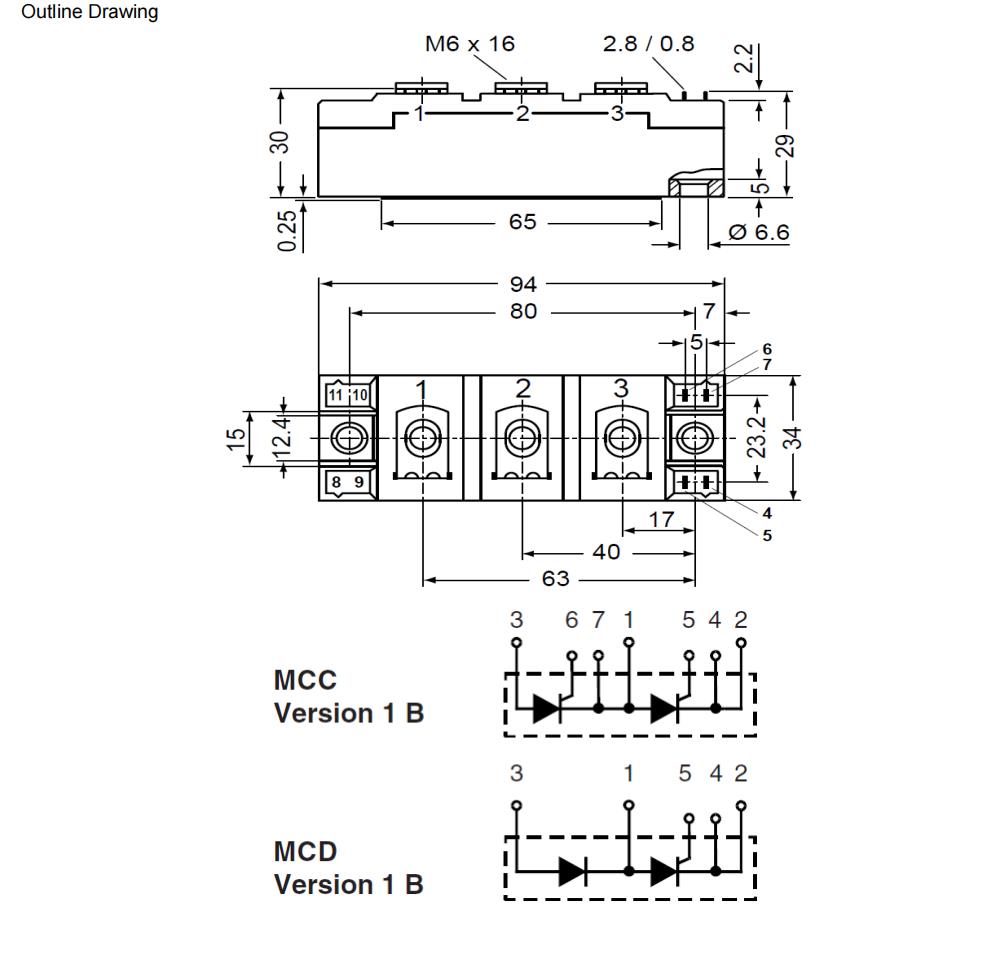

For more information about YZPST-MCD215-20I01 please download the PDF file above named " YZPST-MCD215-20I01 "
