YZPST-S9013

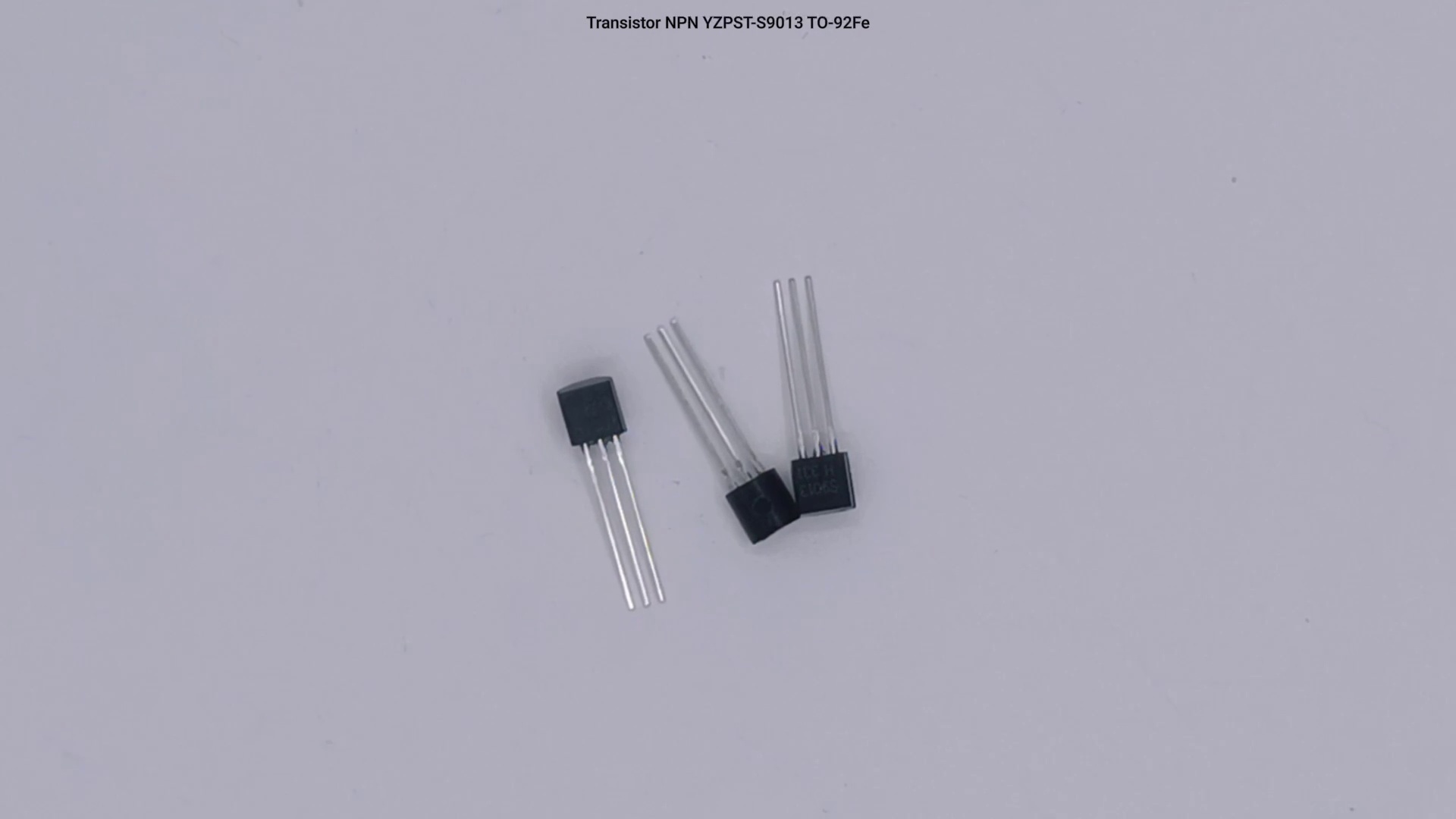

YZPST-S9013 ТРАНЗИСТОР (NPN)
ОСОБЕННОСТИ
Комплементарный к S9012
Отличная линейность hFE

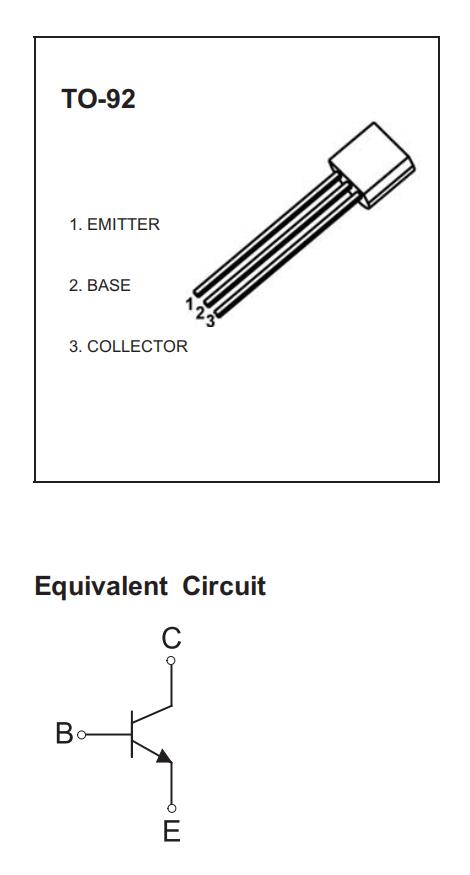

TO-92 Plastic-Encapsulate Transistors
YZPST-S9013 TRANSISTOR (NPN)
FEATURES
Complementary to S9012
Excellent hFE linearity
ORDERING INFORMATION
|
PartNumber |
Package |
PackingMethod |
PackQuantity |
|
S9013 |
TO-92 |
Bulk |
1000pcs/Bag |
|
S9013-tA |
TO-92 |
Tape |
2000pcs/Box |
MAXIMUM RATINGS(Ta=25℃ unless otherwise noted)
|
SymboI |
Parameter |
VaIue |
Unit |
|
VCB0 |
Collector-Base Voltage |
40 |
V |
|
VCE0 |
Collector-Emitter Voltage |
25 |
V |
|
VEB0 |
Emitter-Base Voltage |
5 |
V |
|
1C |
Collector Current -Continuous |
0.5 |
A |
|
PD |
Collector Power Dissipation |
625 |
mW |
|
R9 JA |
Thermal Resist ance f rom Junction fo Ambient |
200 |
℃ / W |
|
TJ,Tstg |
JperTti0ncunati0nTnCRt0rTgeSemperTtureOTnge |
-55 ~＋150 |
℃ |
Ta=25 ℃ unless otherwise specified
|
Parameter |
Symbol |
Test conditions |
Min |
Typ |
Max |
Unit |
|
CoIIector base |
V(BR)CBO |
IC= 100μA , IE=0 |
40 |
|
|
V |
|
breakdown |
||||||
|
voItage |
||||||
|
CoIIector emitter |
V(BR)CEO |
IC= 1mA , IB=0 |
25 |
|
|
V |
|
breakdown |
||||||
|
voItage |
||||||
|
Emitter base |
V(BR)EBO |
IE= 100μA , IC=0 |
5 |
|
|
V |
|
breakdown |
||||||
|
voItage |
||||||
|
CoIIector cut off |
ICBO |
VCB= 40V , IE=0 |
|
|
0.1 |
uA |
|
current |
||||||
|
CoIIector cut off |
ICEO |
VCE=20V , IE=0 |
|
|
0.1 |
uA |
|
current |
||||||
|
Emitter |
IEBO |
VEB= 5V, IC=0 |
|
|
0.1 |
uA |
|
cut off |
||||||
|
current |
||||||
|
|
hFE(1) |
VCE=1V, IC=50mA |
64 |
|
400 |
|
|
DC |
||||||
|
current |
||||||
|
gain |
hFE(2) |
VCE=1V, IC= 500mA |
40 |
|
|
|
|
CoIIector emitter |
VCE(sat) |
IC= 500mA, IB= 50mA |
|
|
0.6 |
V |
|
saturation |
||||||
|
voItage |
||||||
|
Base emitter |
VBE(sat) |
IC= 500mA, IB= 50mA |
|
|
1.2 |
V |
|
voItage |
||||||
|
|
|
|
|
|
|
|
|
Transition |
fT |
VCE=6V,IC=20mA,f=30MHz |
150 |
MHz |
||
|
frequency |
|
|
|
CLASS1F1CAT10N0FhFE(1)
|
Rank |
D |
E |
F |
G |
H |
I |
J |
|
Range |
64-91 |
78- 112 |
96- 135 |
112- 166 |
144-202 |
190-300 |
300-400 |

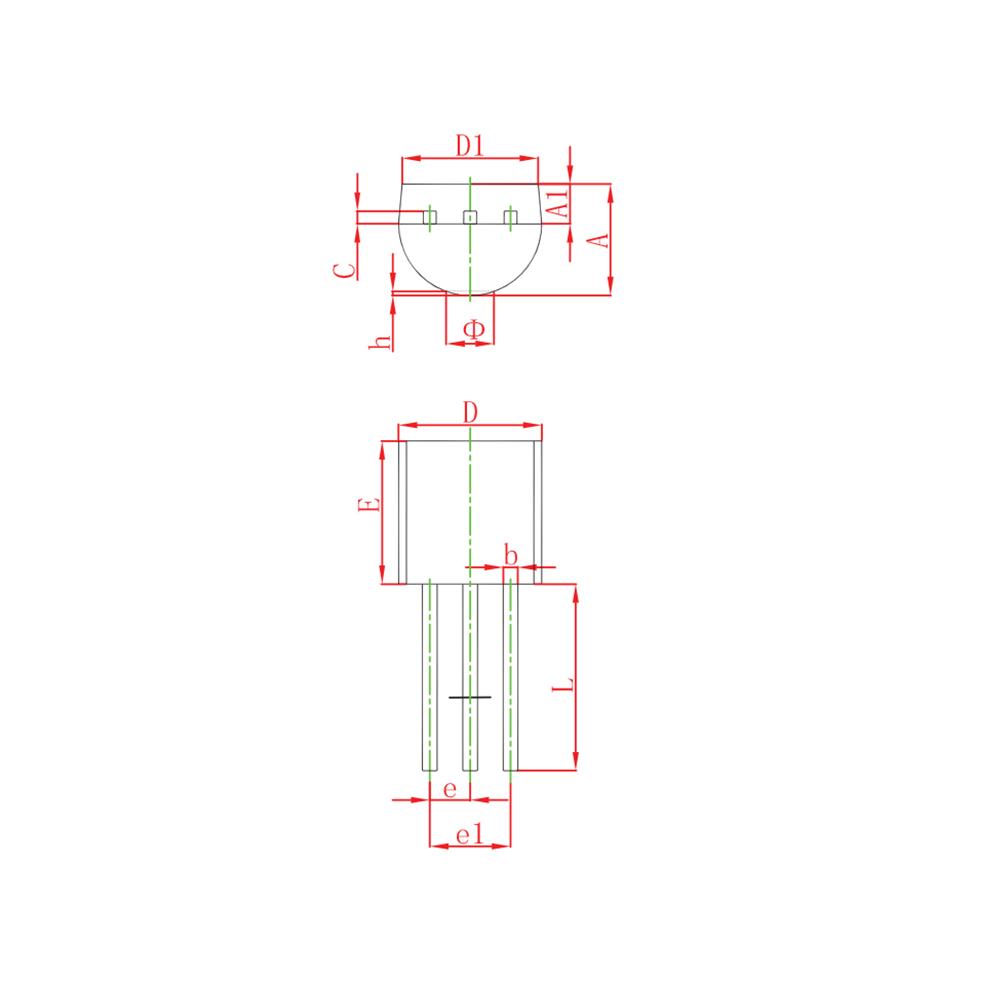

Outline Dimensions
.jpg)
|
SymboI |
Dimensions |
Dimensions |
||
|
1n |
1n |
|||
|
MiIIimeters |
1nches |
|||
|
Min |
Max |
Min |
Max |
|
|
A |
3.3 |
3.7 |
0.13 |
0.146 |
|
A1 |
1.1 |
1.4 |
0.043 |
0.055 |
|
b |
0.38 |
0.55 |
0.015 |
0.022 |
|
c |
0.36 |
0.51 |
0.014 |
0.02 |
|
D |
4.3 |
4.7 |
0.169 |
0.185 |
|
D1 |
3.43 |
|
0.135 |
|
|
E |
4.3 |
4.7 |
0.169 |
0.185 |
|
e |
1.270 TYP |
0.050 TYP |
||
|
1 |
2.44 |
2.64 |
0.096 |
0.104 |
|
L |
14.1 |
14.5 |
0.555 |
0.571 |
|
o |
|
1.6 |
|
0.063 |
|
h |
0 |
0.38 |
0 |
0.015 |
For more information about YZPST-S9013 please download the PDF file above named " YZPST-S9013 TO92"
