YZPST-SS8550
Особенности
Потери мощности
PC :1W (Ta=25 C)

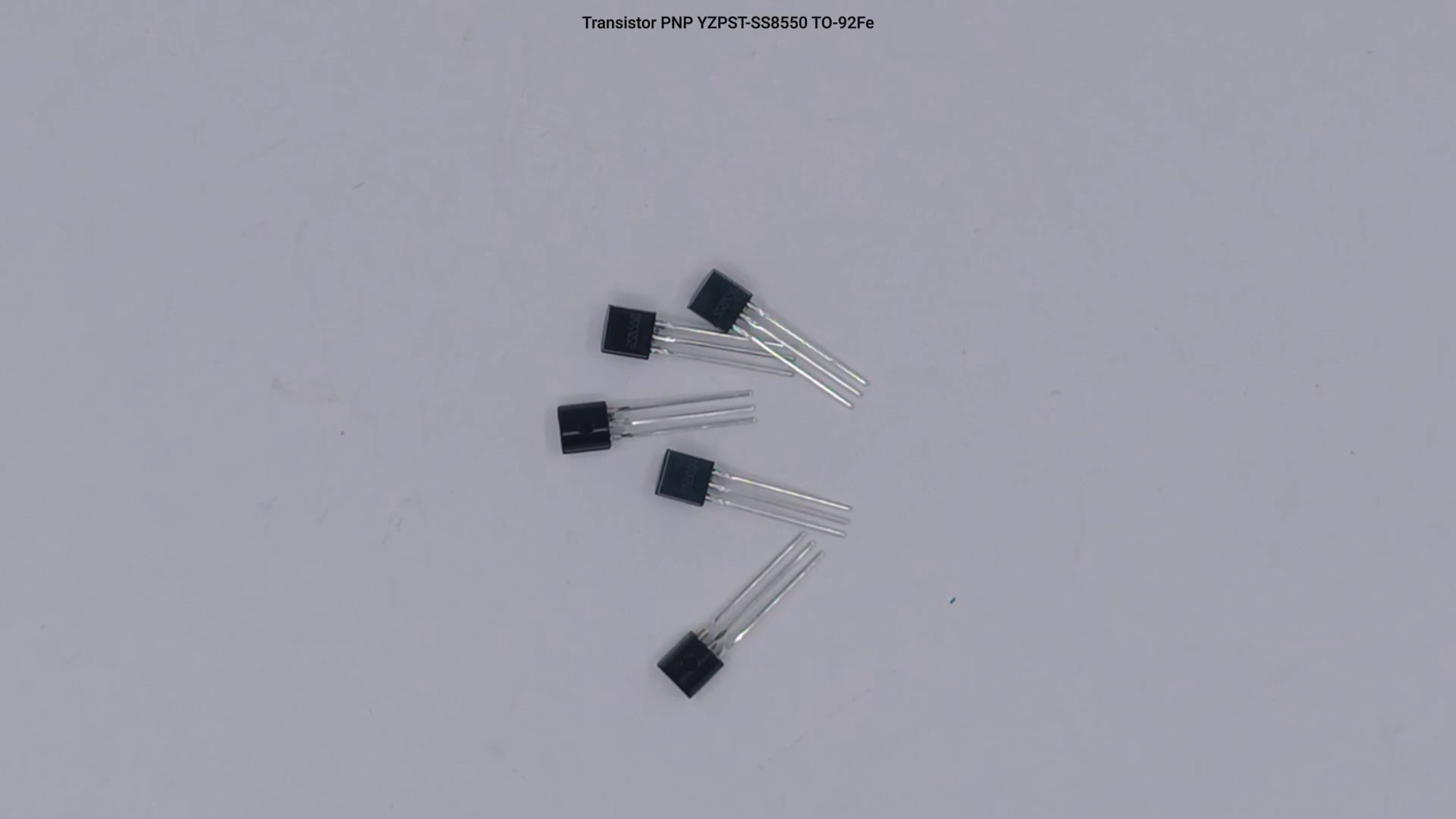

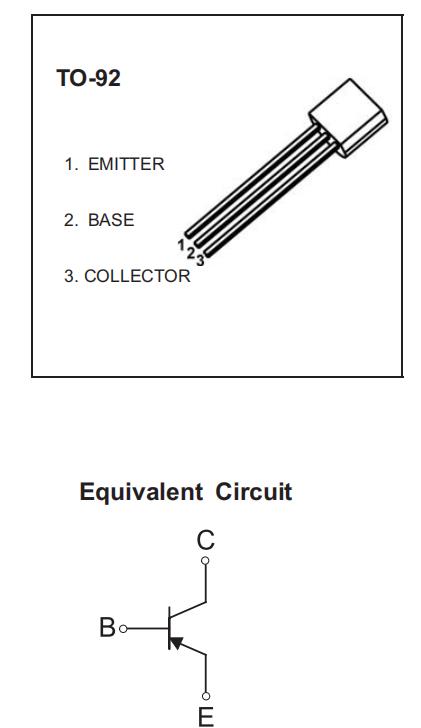

TO-92 Plastic-Encapsulate Transistors
YZPST-SS8550 TRANSISTOR (PNP)
FEATUREs
Power dissipation
PC :1W (Ta=25 ℃)
ORDERINGINFORMATION
|
PartNumber |
Package |
PackingMethod |
PackQuantity |
|
SS8550 |
TO-92 |
Bulk |
1000pcs/Bag |
|
SS8550-TA |
T0-92 |
Tape |
2000pcs/Box |
MAX1MUMRAT1NGs(Ta=25℃ unlessotherwise noted)
|
symbol |
Parameter |
Value |
Unit |
|
VCBO |
Collector-Base Voltage |
-40 |
V |
|
VCEO |
Collector-Emitter Voltage |
-25 |
V |
|
VEBO |
Emitter-Base Voltage |
-5 |
V |
|
IC |
Collector Current -Continuous |
- 1.5 |
A |
|
PD |
Collector Power Dissipation |
1000 |
mW |
|
R θ JA |
Thermal Resistance f rom Junction to Ambient |
125 |
℃ / W |
|
TJ,Tstg |
Operation Junction and Storage Temperature Range |
-55 -＋150 |
℃ |
Ta=25 ℃ unless otherwise specified
| Parameter | symbol | Test | Min | Typ | Max | Unit |
| conditions | ||||||
| Collector.base | V(BR)CBO | IC=- 100uA, IE=0 | -40 | V | ||
| breakdown | ||||||
| voltage | ||||||
| Collector.emitter | V(BR)CEO | IC=-0. 1mA, IB=0 | -25 | V | ||
| breakdown voltage | ||||||
| Emitter.base | V(BR)EBO | IE=- 100uA, IC=0 | -5 | V | ||
| breakdown | ||||||
| voltage | ||||||
| Collector | ICBO | VCB=-40V, IE=0 | -0. 1 | uA | ||
| cut.off | ||||||
| current | ||||||
| Emitter | ICEO | VCE=-20V, IE=0 | -0. 1 | uA | ||
| cut.off | ||||||
| current | ||||||
| Emitter | IEBO | VEB=-5V, IC=0 | -0. 1 | uA | ||
| cut.off | ||||||
| current | ||||||
| DC | hFE(1) | VCE=- 1V, IC=- 100mA | 85 | 400 | ||
| current | ||||||
| gain | hFE(2) | VCE=- 1V, IC=-800mA | 40 | |||
| Collector.emitter | VCE(sat) | IC=-800mA, IB=-80mA | -0.5 | V | ||
| saturation | ||||||
| voltage | ||||||
| Base.emitter | VBE(sat) | IC=-800mA, IB=-80mA | -1.2 | V | ||
| saturation voltage | ||||||
| Base.emitter | VBE(on) | VCE=- 1V, IC=- 10mA | -1 | V | ||
| voltage | ||||||
| out | Cob | VCB=- 10V, IE=0mA,f=1MHZ | 20 | pF | ||
| capacitance | ||||||
| Transition | fT | VCE=- 10V, IC=-50mA,f=30MHZ | 100 | MHz | ||
| frequency |

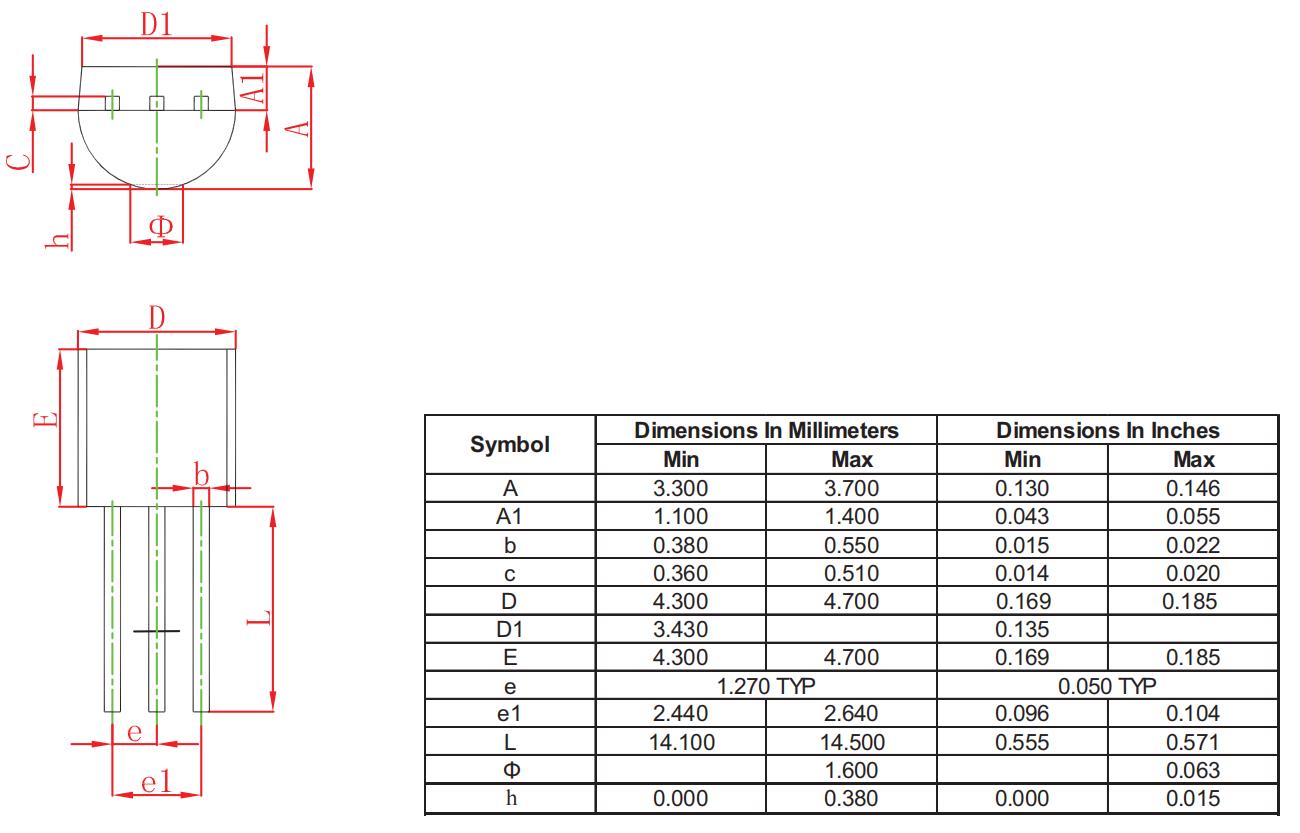

To.92 PackageoutlineDimensions
