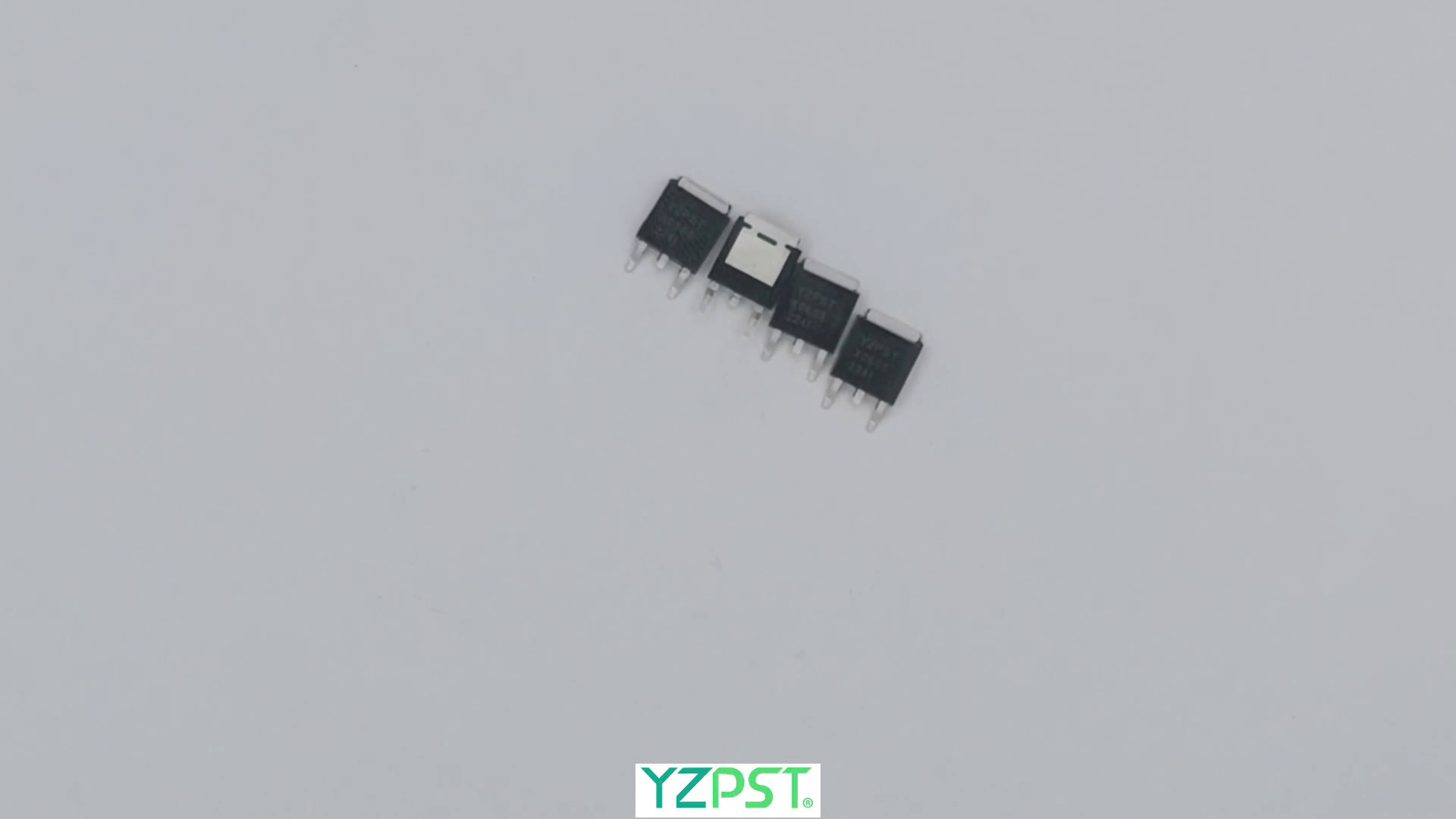

YZPST-X0605
YZPST-X0605 6A SCRs
ОПИСАНИЕ:
Серия SCR X0605 обеспечивает высокую скорость dv/dt с
высокой устойчивостью к электромагнитным помехам. Они
особенно рекомендуются для использования на прямых волосах,
зажигалка и т. д.
YZPST-X0605 6A SCRs
DESCRIPTION:
The X0605 SCR series provide high dv/dt rate with
strong resistance to electromagnetic interface.They
are especially recommended for use on straight hair,
igniter etc.
MAIN FEATURES:
|
symbol |
value |
unit |
|
IT(RMS) |
6 |
A |
|
IGT |
≤10 |
mA |
|
VDRM/VRRM |
600/800 |
V |
|
Parameter |
Symbol |
Value |
Unit |
|
Storage junction temperature range |
Tstg |
-40~150 |
℃ |
|
Operating junction temperature range |
Tj |
-40~110 |
℃ |
|
Repetitive peak off-state voltage (Tj=25℃) |
VDRM |
600/800 |
V |
|
Repetitive peak reverse voltage (Tj=25℃) |
VRRM |
600/800 |
V |
|
RMS on-state current |
IT(RMS) |
6 |
A |
|
Non repetitive surge peak on-state current (full cycle, F=50Hz) |
ITSM |
45 |
A |
|
I2t value for fusing (tp=10ms) |
I2t |
6.75 |
A2s |
|
Critical rate of rise of on-state current (IG=2 × IGT) |
dI/dt |
50 |
A/ μs |
|
Peak gate current |
IGM |
1.8 |
A |
|
Average gate power dissipation |
PG(AV) |
0.3 |
W |
|
Peak gate power |
PGM |
3 |
W |
ELECTRICAL CHARACTERISTICS (Tj=25℃ unless otherwise specified)
| Symbol | Value | ||||
| Test Condition | MIN | TYPE | MAX | Unit | |
| IGT | - | 5 | 10 | mA | |
| VGT | VD=12V, RL=33Ω | - | 0.6 | 0.8 | V |
| VD=VDRM Tj=110℃ | |||||
| VGD | RL=3.3kΩ | 0.2 | - | - | V |
| IH | IT=50mA | - | - | 5 | mA |
| IL | IG=1.2IGT | - | - | 6 | mA |
| dV/dt | VD=0.66×VDRM Tj=110℃ Gate open RGK=1KΩ | V/ µs | |||
| 10 | - | - | |||
STATIC CHARACTERISTICS
| Symbol | Test Condition | Value | Unit | ||
| VTM | ITM=8A tp=380μs | Tj=25℃ | MAX | 1.5 | V |
| IDRM | VDRM= VRRM | Tj=25℃ | 5 | µA | |
| IRRM | RGK=1KΩ | Tj=110℃ | MAX | 100 | µA |
THERMAL RESISTANCES
| Symbol | Test Condition | Value | Unit | |
| TO-202-3 | 7.8 | |||
| TO-252-4R | 6.5 | |||
| junction to case(AC) | TO-126 | 7.3 | ℃/W | |
| Rth(j-c) | TO-220B | 3 | ||

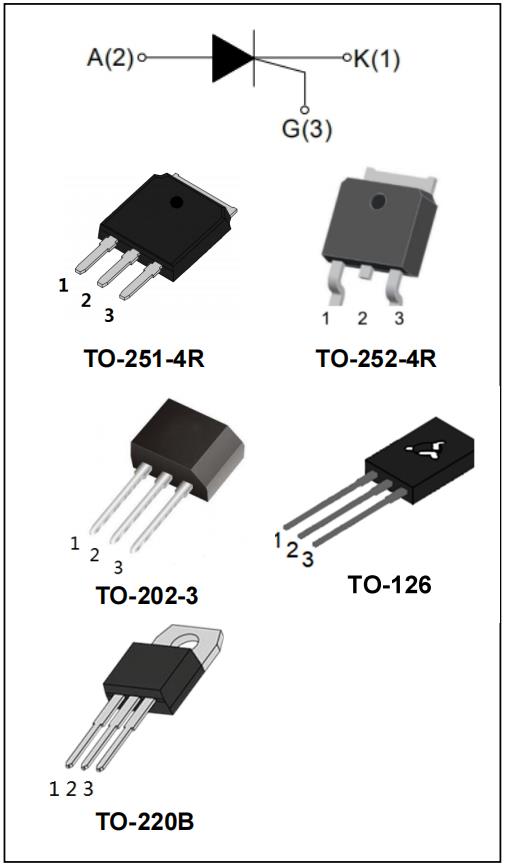

PACKAGE MECHANICAL DATA
