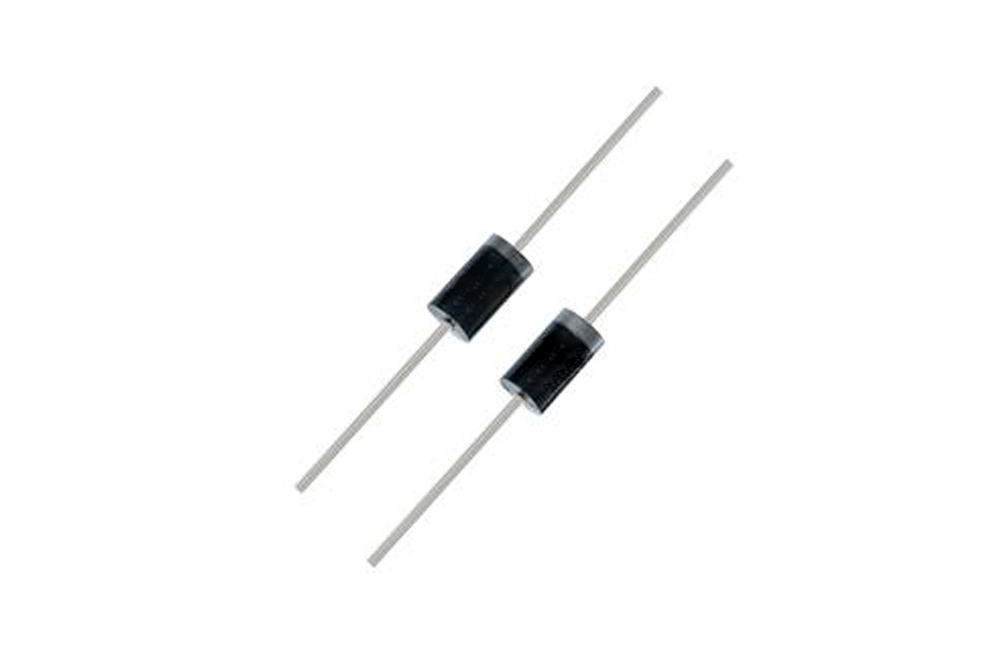

Диод Шоттки с барьером 2.0А с высокой токоносимостью SBD
High current capability 2.0AMP schottky barrier diode SBD
YZPST-SB220 THRU SB2200
FEATURES
Low forward voltage drop
High current capability
High reliability
High surge current capability
Epitaxial construction

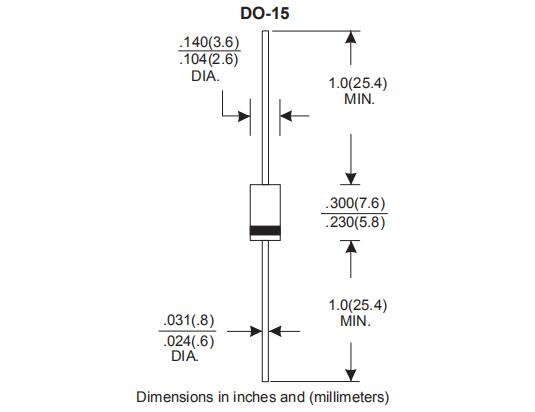

MECHANICAL DATA
Case: Molded plastic
Epoxy: UL 94V-0 rate flame retardant
Lead: Axial leads, solderable per MIL-STD-202, method 208 guranteed
Polarity: Color band denotes cathode end
Mounting position: Any
Weight: 0.34 grams
BothnormalandPbfree productareavailable:
Normal:80~95%Sn,5~20%Pb
Pbfree:99SnabovecanmeetRohsenviromentsubstance directiverequest
VOLTAGE RANGE
20 to 200 Volts
CURRENT
2.0 Ampere
MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS
Rating 25 C ambient temperature uniess otherwies specified. Single phase half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
|
TYPE NUMBER |
SB220 |
SB240 |
SB260 |
SB280 |
SB2100 |
SB2150 |
SB2200 |
UNITS |
|
Maximum Recurrent Peak Reverse Voltage |
20 |
40 |
60 |
80 |
100 |
150 |
200 |
V |
|
Maximum RMS Voltage |
14 |
28 |
42 |
56 |
70 |
105 |
140 |
V |
|
Maximum DC Blocking Voltage |
20 |
40 |
60 |
80 |
100 |
150 |
200 |
V |
|
Maximum Average Forward Rectified Current See Fig. 1 |
2.0 |
A |
||||||
|
Peak Forward Surge Current, 8.3 ms single half sine-wave superimposed on rated load (JEDEC method) |
50 |
A |
||||||
|
Maximum Instantaneous Forward Voltage at 2.0A |
0.55 |
0.70 |
0.85 |
V |
||||
|
Maximum DC Reverse Current Ta=25 C at Rated DC Blocking Voltage Ta=100 C |
0.5 20 |
mA mA |
||||||
|
Typical Junction Capacitance (Note1) |
170 |
pF |
||||||
|
Typical Thermal Resistance RqJA (Note 2) |
35 |
C/W |
||||||
|
Operating Temperature Range TJ |
-65 +125 |
-65 +150 |
C |
|||||
|
Storage Temperature Range TSTG |
-65 +150 |
C |
||||||
NOTES:
1.Measured at 1MHz and applied reverse voltage of 4.0V D.C.
2.Thermal Resistance Junction to Ambient Vertical PC Board Mounting 0.5"(12.7mm) Lead Length.
