Features:
- All Diffused Structure
- High Surge rating
- Soft Reverse Recovery
- Rugged Ceramic Hermetic Package
- Pressure Assembled Device
YZPST-DRD5940H55
описание1
Молния
1/5 молнии для мужских спортивных свитеров. Эластичная, легкая, быстро сохнущая
ткань для превосходной производительности.
РЕГУЛЯРНАЯ ПОСАДКА - Стандартные размеры США. Спортивная посадка, сидящая близко к
телу
для широкого диапазона движения, разработана для оптимальной производительности и
комфорта в течение всего дня.
ОСОБЕННОСТИ - Застежка на четверть молнии; Дырки для большого пальца на длинных рукавах,
чтобы удерживать их
на месте во время тренировки
DESCRIPTION
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured
Typical Applications:
- Rectifier for Drives Applications
- Medium voltage converters
- Pulsed power applications
- Crowbar Applications
|
VRRM (1) |
VRSM (1) |
|
5500 |
5600 |
VRRM = Repetitive peak reverse voltage
VRSM = Non repetitive peak reverse voltage (2)
VRSM = Non repetitive peak reverse voltage (2)
|
Repetitive peak reverse leakage |
IRRM |
50 mA
600 mA
|
Notes:
All ratings are specified for Tj=25 oC unless
otherwise stated.
(1) All voltage ratings are specified for an applied
50Hz/60zHz sinusoidal waveform over the
temperature range -40 to +150 oC.
(2) 10 msec. max. pulse width
(3) Maximum value for Tj = 150 oC.
(4) See parameter definition below :
All ratings are specified for Tj=25 oC unless
otherwise stated.
(1) All voltage ratings are specified for an applied
50Hz/60zHz sinusoidal waveform over the
temperature range -40 to +150 oC.
(2) 10 msec. max. pulse width
(3) Maximum value for Tj = 150 oC.
(4) See parameter definition below :
Conducting - on state
* For guaranteed maximum values, contact factory
|
Parameter |
Symbol |
Min |
Max. |
Typ |
Units |
Conditions |
|
Max. Average value of on-state current |
IF(AV) |
|
5940 |
|
A |
Sinewave,180oconduction,Tc=100oC |
|
RMS value of on-state current |
IF(RMS) |
|
9330 |
|
A |
Nominal value |
|
Peak one cycle surge
(non repetitive) current
|
IFSM |
|
93.6 |
|
kA |
Tj=150°C, VR=0V, tp=10ms |
|
I square t |
I2t |
|
43.8×103 |
|
kA2s |
10 msec |
|
Peak on-state voltage |
VFM |
|
1.26 |
|
V |
IFM =6000 A; Tj = Tj Max |
|
Threshold voltage |
VF0 |
|
0.8 |
|
V |
Tj = Tj Max |
|
Slope resistance |
rf |
|
0.076 |
|
mΩ |
Tj = Tj Max |
|
Reverse Recovery Charge (4) |
Qrr |
|
9000 |
- |
mC |
|
|
Reverse Recovery Time (4) |
tRR |
|
- |
|
ms |
|
For more information about Standard diode please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "
SPECIFICATION
http://www.youtube.com/channel/UCZ3mV8GmGNcX4WcYEoWX-_g/featured
* Mounting surfaces smooth, flat and greased
THERMAL AND MECHANICAL CHARACTERISTICS
|
Parameter |
Min. |
Max. |
Typ. |
Units |
Conditions |
|
|
Operating temperature |
Tj |
0 |
+150 |
|
oC |
|
|
Storage temperature |
Tstg |
-40 |
+160 |
|
oC |
|
|
Thermal resistance - junction to case |
RQ (j-c) |
|
0.004 |
|
oC /W |
Double side cooled
Single sided cooled
|
|
Thermal resistance - case to sink |
RQ (c-s) |
|
1 |
|
oC /W |
Double side cooled
Single sided cooled
|
|
Thermal resistance - junction to sink |
RQ (j-s) |
|
-
-
|
|
oC/kW |
Double side cooled
Single sided cooled
|
|
Mounting force |
P |
110 |
130 |
|
kN |
|
|
Weight |
W |
|
|
- |
Kg |
about |

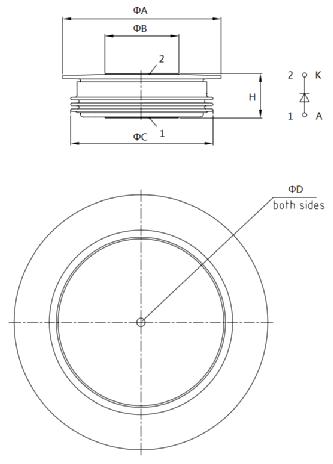

CASE OUTLINE AND DIMENSIONS
|
Sym |
A |
B |
C |
D |
H |
|
mm |
172 |
110 |
159 |
3.5×3 |
35±1 |
YZPST can provide Following Equivalent List of Standard Diodes With High Junction (Capsule Types)
| Type | IF(AV) | IFSM @TVJM&10ms | VRRM | IRRM (max) Tj=125 °C | VFM(max) | Tvj | Rthjc | F±10% | ||
| A | KA | V | mA | IFM (A) | IFM (A) | Tj(°C) | °C | K/W | KN | |
| A640 | 1500 | 16 | 1200-2200 | 35 | 1.09 | 1000 | 25 | 185 | 0.04 | 15 |
| A641 | 1500 | 15 | 1800-2600 | 70 | 1.09 | 1000 | 25 | 185 | 0.04 | 15 |
| A643 | 1000 | 10 | 3600-4600 | 50 | 1.40 | 1000 | 160 | 170 | 0.04 | 15 |
| A740 | 2400 | 30 | 1400-2000 | 50 | 0.86 | 1000 | 160 | 185 | 0.02 | 25 |
| A750 | 1800 | 22 | 2400-3200 | 50 | 0.96 | 1000 | 160 | 175 | 0.02 | 25 |
| A780 | 1500 | 18 | 3500-4600 | 50 | 1.15 | 1000 | 160 | 170 | 0.02 | 25 |
| A800 | 4400 | 63 | 1800-2600 | 100 | 0.865 | 2000 | 160 | 185 | 0.01 | 36 |
| A801 | 3900 | 57 | 2800-3200 | 100 | 1.05 | 2000 | 150 | 175 | 0.01 | 36 |
| A880 | 2900 | 36 | 3600-4500 | 100 | 1.15 | 2000 | 160 | 170 | 0.01 | 36 |
For more information about Standard diode please download the PDF file above named " YANGZHOU POSITIONING TECH CO Power thyristor and diode parts "
