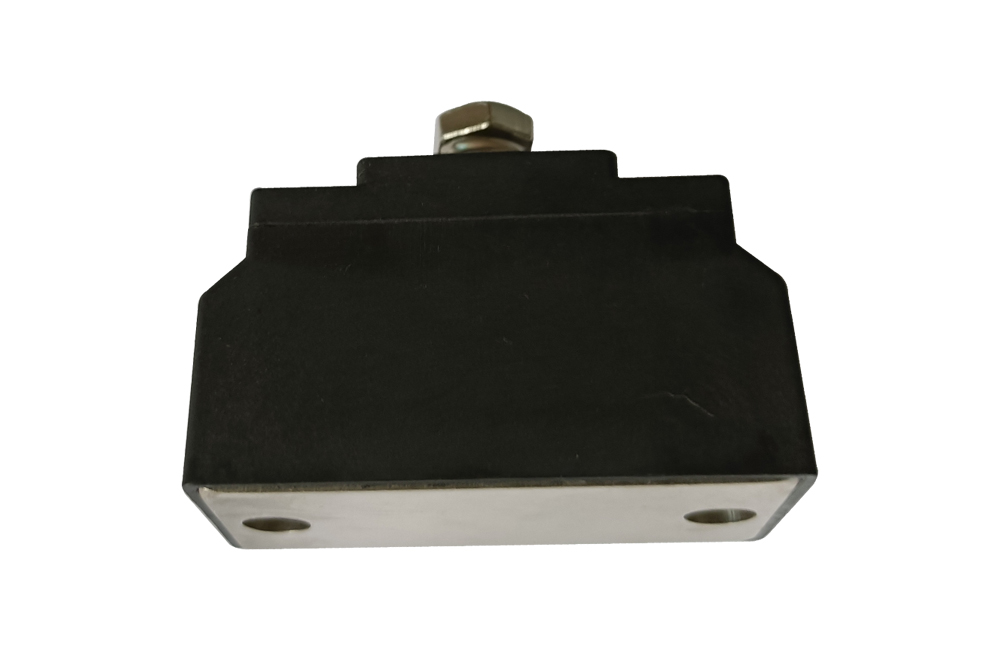

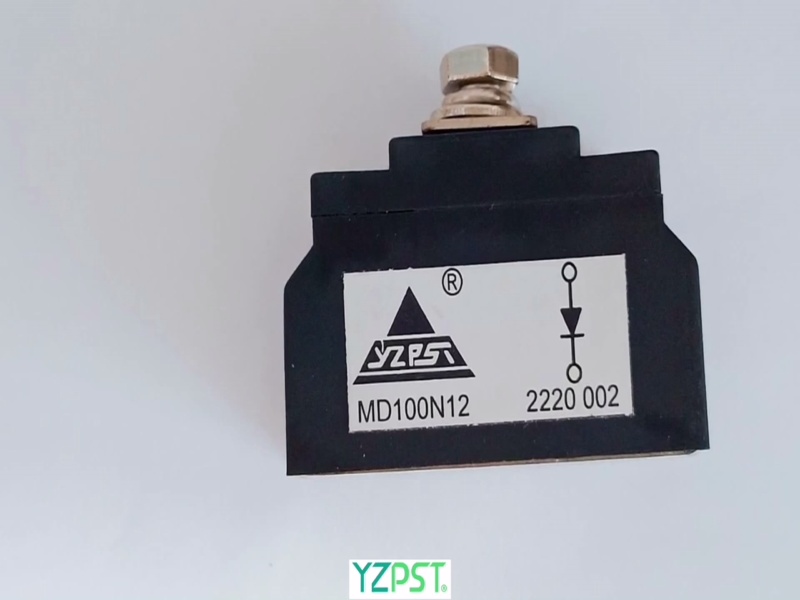

YZPST-MD100N12
Rectifier Diode Modules
YZPST-MD100N12
Features
Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
Hard Soldered Joints For High Reliability
UL Recognized
Typical Applications
Rectifier for drives applications
Rectifiers for UBS
Battery chargers
BLOCKING
|
Symbol |
Condition |
Ratings |
Unit |
|
VRRM VRSM |
Tj= Tj Max. |
1200 1300 |
V |
|
IRRM |
AtVRRM，Single phase，half wave，Tj= Tj Max. |
3 |
mA |
|
VISO |
50Hz, r.m.s;1S/1min |
|
V |
CONDUCTING
|
Symbol |
Condition |
Ratings |
Unit |
|
IF(AV) |
TC=100°C; 180° sine |
100 |
A |
|
IF(RMS) |
TC=100°C; 180° sine |
180 |
A |
|
IFSM |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
2000 |
A |
|
I2t |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
20 |
kA2S |
|
VF(TO) |
(I > π x IF(AV)),Tj= Tj Max. |
0.87 |
V |
|
rF |
(I > π x IF(AV)),Tj= Tj Max. |
2.45 |
mΩ |
|
VFM |
On-State Current300A，Tj=25°C |
1.50 |
V |
Electrical Characteristics
|
Symbol |
Condition |
Ratings |
Unit |
|
Rth(j-c) |
Per Module |
0.1 |
K/W |
|
Rth(c-h) |
Per Module |
0.11 |
K/W |
|
Tj |
|
-40 ~ + 130 |
°C |
|
Tstg |
|
-40 ~ + 125 |
°C |
|
M |
mounting torque |
5 |
Nm |
|
terminal torque |
3 |
Nm |
|
|
W |
|
|
g |
Outline Drawing
For more information about YZPST-MD100N12 please download the PDF file above named " YZPST-MD100N12 "
