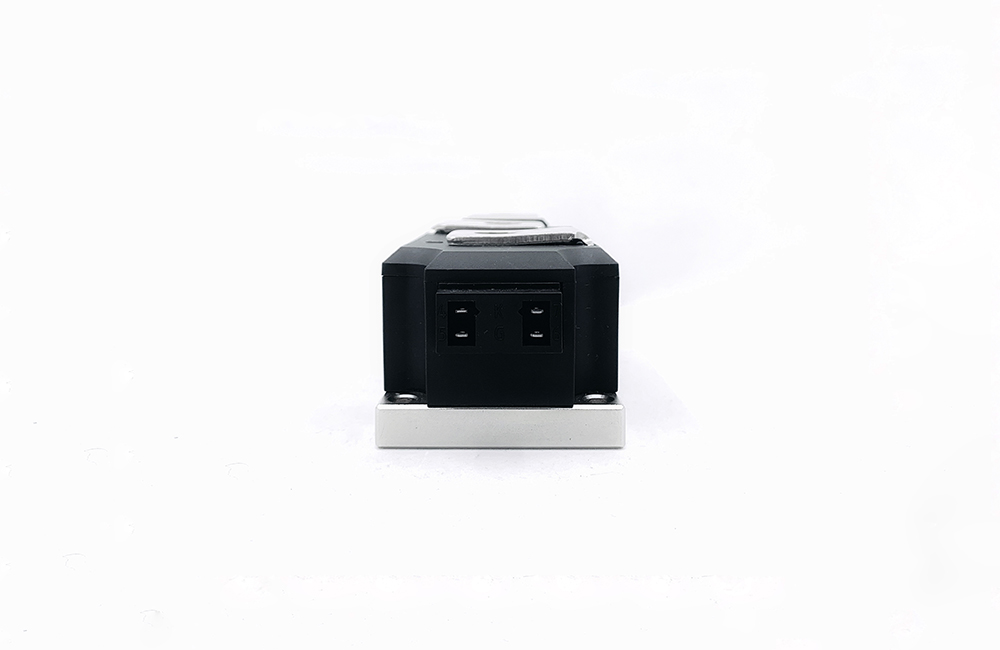

YZPST-MD3-470-4400V(Viso>6000V)
Features
Heat Transfer Through Aluminium Oxide Ceramic Isolated Metal Baseplate
Hard Soldered Joints For High Reliability
VINS>6000VAC
Typical Applications
Rectifier for drives applications
Rectifiers for UBS
Battery chargers
|
Symbol |
Condition |
Ratings |
Unit |
|
VRRM
VRSM
|
Tj= Tj Max. |
4400
4500
|
V |
|
IRRM |
AtVRRM，Single phase，half wave，Tj= Tj Max. |
50 |
mA |
|
VINS |
50Hz, circuit to base, all terminal shorted |
6000 |
V |
|
Symbol |
Condition |
Ratings |
Unit |
|
IF(AV) |
TC=100°C; 180° sine |
510 |
A |
|
IF(RMS) |
TC=95°C; 180° sine |
790 |
A |
|
IFSM |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
12.5 |
KA |
|
I2t |
Tj= Tj Max.; t = 10 ms (50 Hz); sine |
780 |
kA2S |
|
VF(TO) |
(I > π x IF(AV)),Tj= Tj Max. |
0.82 |
V |
|
rF |
(I > π x IF(AV)),Tj= Tj Max. |
0.56 |
mΩ |
|
VFM |
On-State Current1256A，Tj=25°C |
1.60 |
V |
|
Symbol |
Condition |
Ratings |
Unit |
|
Rth(j-c) |
Per Module |
0.032 |
K/W |
|
Rth(c-h) |
Per Module |
0.0305 |
K/W |
|
Tj |
|
-40 ~ + 150 |
°C |
|
Tstg |
|
-40 ~ + 125 |
°C |
|

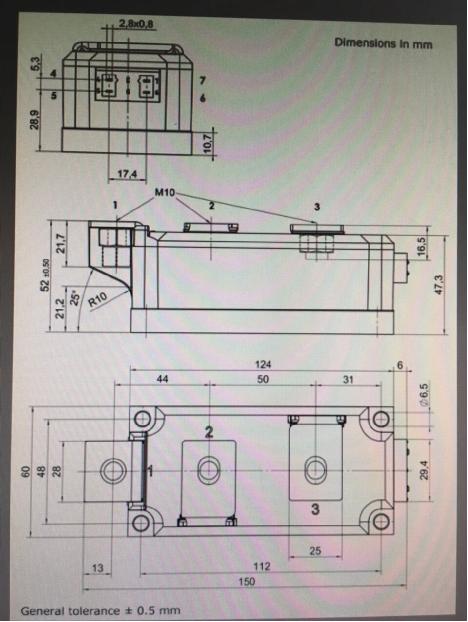

M |
mounting torque(M6) |
6 |
Nm |
|
terminal torque(M10) |
12 |
Nm |
|
|
W |
|
1500- |
g |
