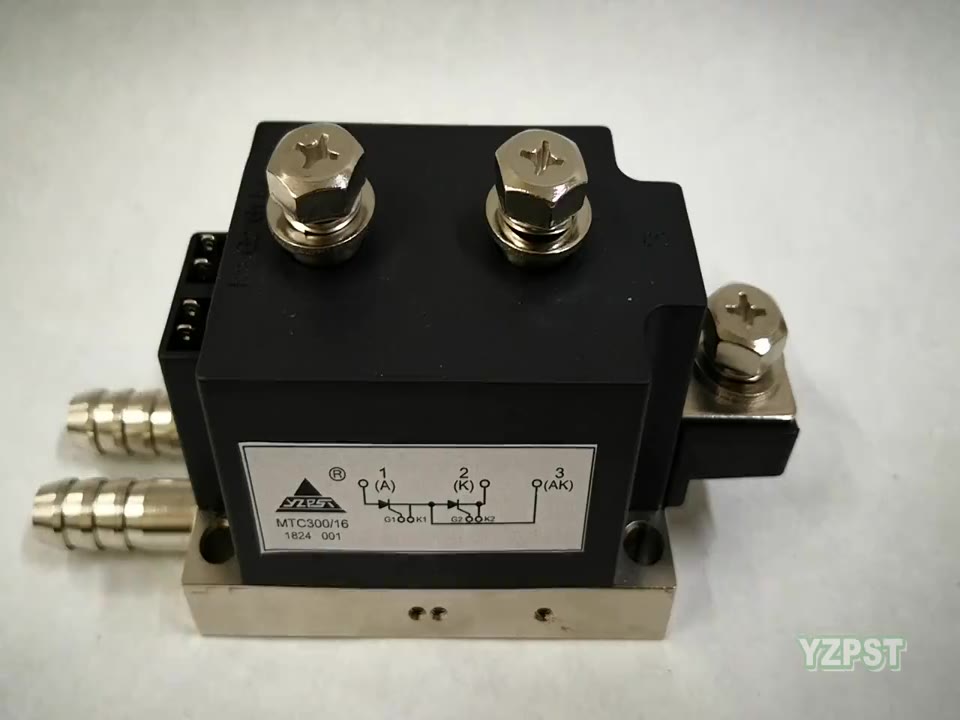

YZPST-MTC300-1800V (Wind-Cooled)
Features
Heat transfer through aluminium nitride ceramic isolated metal baseplate
Precious metal pressure contacts for high reliability
Thyristor with amplifying gate
Typical Applications
DC motor control
AC motor soft starters
Temperature control
Professional light dimming
|
Symbol |
Condition |
Ratings |
Unit |
|
IT(AV) |
Single phase，half wave，85° conduction |
305 |
A |
|
ITRMS |
Single phase，half wave，35° conduction |
585 |
A |
|
ITSM |
Tj=125℃ |
8000 |
A |
|
I2t |
Tj=125℃ |
320 |
kA2S |
|
VDRM/VRRM |
|
1800/1800 |
V |
|
di/dt |
non-repetitive |
250 |
A/us |
|
Viso |
A.C.1minute |
3000 |
V |
|
Tj |
|
-40 ~ + 125 |
℃ |
|
Tstg |
|
-40 ~ + 125 |
℃ |
|
W |
|
- |
g |
|
Symbol |
Condition |
Ratings |
Unit |
|
IDRM /IRRM |
AtVDRM，Single phase，half wave，Tj=125℃ |
85 |
mA |
|
VTM |
On-State Current 750A，Tj=25℃ |
1.4 |
V |
|
VT(TO) |
Tj=125℃ |
0.8 |
V |
|
tgd |
Tj=25℃ |
1 |
us |
|
tq |
Tj=125℃ |
50…150 |
us |
|
IGT/VGT |
Tj=25℃ |
200 / 3 |
mA/V |
|
VGD |
VD=67%VDRM , Tj=125℃ |
0.25 |
V |
|
DV/DT |
VD=67%VDRM |
1000 |
V/us |
|
IH |
Tj=25℃ |
150 |
mA |
|
IL |
Tj=25℃ |
300 |
mA |
|
Rth(j-c) |
Per Module |
0.055 |
K/W |
-

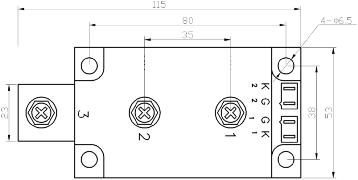

Outline Drawing
-

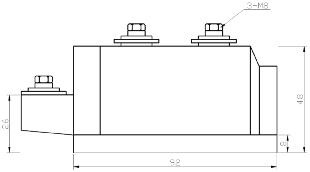

Outline Drawing
