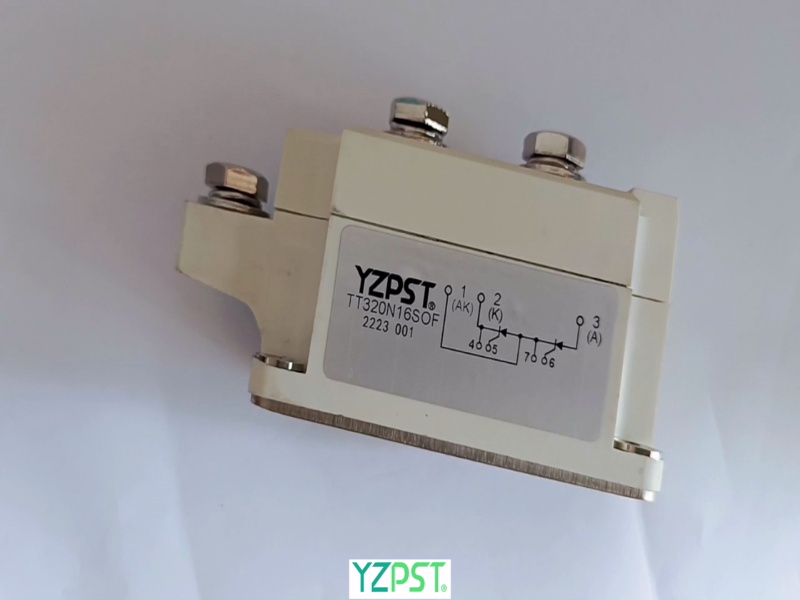

YZPST-TT320N16SOF
TYPE: YZPST-TT320N16SOF
Features
· Heat transfer through aluminium nitride ceramic isolated metal baseplate
· Precious metal pressure contacts for high reliability
· Thyristor with amplifying gate
Typical Applications
· DC motor control
· Temperature control
· Professional light dimming
Maximum Ratings
|
Symbol |
Condition |
Ratings |
Unit |
|
IT(AV)M |
Single phase ，half wave ，sin 180° conduction ;TC=85°C |
320 |
A |
|
ITRMSM |
Single phase ，half wave ，sin 180° conduction |
520 |
A |
|
ITSM |
Tj= Tj MAX |
8.2 |
kA |
|
I2t |
Tj= Tj MAX |
335 |
kA2S |
|
VDRM/VRRM |
Tj= Tj MAX |
1600 |
V |
|
di/dt |
non-repetitive |
100 |
A/us |
|
Viso |
A.C. 1minute/1S |
3000/3600 |
V |
|
Tj |
|
-40 ~ + 130 |
°C |
|
Tstg |
|
-40 ~ + 130 |
°C |
|
W |
About |
410 |
g |
Electrical Characteristics
|
Symbol |
Condition |
Ratings |
Unit |
|
IDRM /IRRM |
AtVDRM ，Single phase ，half wave ，Tj= Tj MAX |
60 |
|
|
VTM |
On-State Current 750A ，Tj=130°C |
1.47 |
V |
|
VT(TO) |
Tj= Tj MAX |
0.77 |
V |
|
|
Tj= Tj MAX |
0.58 |
|
|
RK1G1 |
|
- |
Ω |
|
RK2G2 |
|
- |
Ω |
|
tgd |
Tj=25°C;VD=0.4VDRM ; ITM=ITAV |
2 |
us |
|
tq |
dvD/dt=50V/us; Tj= Tj MAX; ITM=ITAV |
200 |
us |
|
IGT/VGT |
Tj=25°C ，IT=1A ，VD=6V |
150 / 2.0 |
mA/V |
|
VGD |
VD=67%VDRM |
0.25 |
V |
|
DV/DT |
VD=67%VDRM |
1000 |
V/us |
|
IH |
Tj=25°C |
150 |
|
|
IL |
Tj=25°C |
380 |
|
|
Rth(j-c) |
Thermal resistance Junction to case; per module |
0.055 |
K/W |
|
Rth(c-h) |
Thermal resistance case to heatsink; per module |
0.0275 |
K/W |
